TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Frame Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

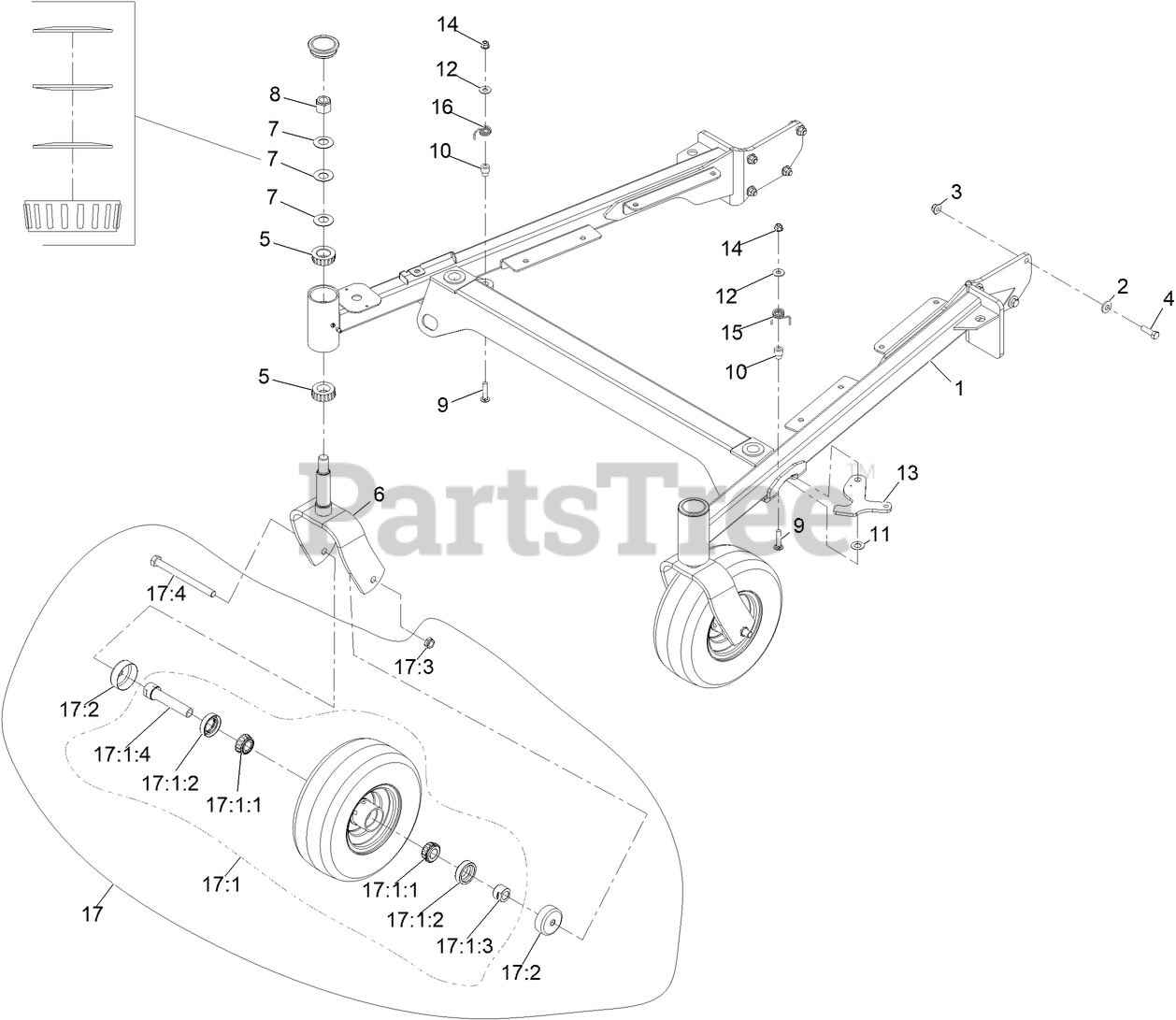

Frame Assembly Parts Diagram

  • Title

1

Exmark 146-2545

ASM,FRONT FRAME W/BUSHING,60

$1188.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

5

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

6

Exmark 103-1891-01

WLD, CASTER FORK

$131.99

$

Usually ships in 3-6 days

0

7

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

9

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

10

Exmark 108-9087

COLLAR-BASKET

$14.99

$

Usually ships in 3-6 days

0

11

Exmark 110-4068

Washer-Plastic

$4.49

$

Usually ships in 3-6 days

0

12

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 135-4827-01

LATCH, DECK HEIGHT

$17.99

$

Usually ships in 3-6 days

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 75-3960

SPRING-TORSION, LH (YELLOW)

$31.99

$

Usually ships in 3-6 days

0

16

Exmark 75-3970

Spring-Torsion, RH

$31.99

$

In Stock, only 1 left!

0

17

Exmark 146-5348

WHEEL AND TIRE ASM

$242.99

$

Usually ships in 3-6 days

0

17:1

Exmark 146-5349

WHEEL AND BEARING ASM

$237.99

$

Usually ships in 3-6 days

0

17:1:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

17:1:2

Exmark 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

17:1:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

17:1:4

Exmark 126-5359

CASTER AXLE ASM

$20.99

$

In Stock, only 2 left!

0

17:2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

17:3

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

17:4

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0
