TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Fuel Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

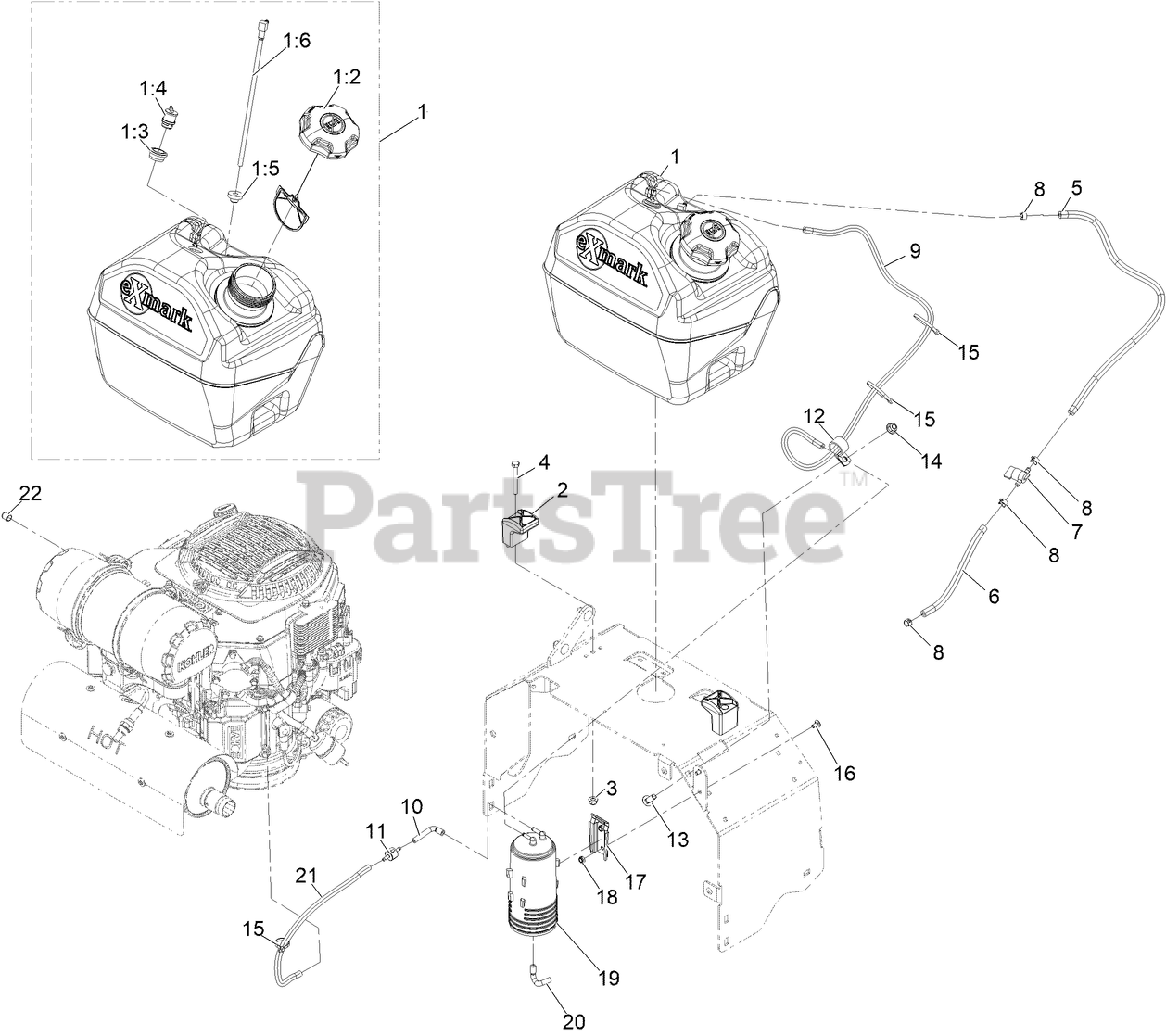

Fuel Assembly Parts Diagram

  • Title

1

Exmark 146-0226

ASM-Fuel Tank, 5 Gal, Exmark

$346.99

$

Usually ships in 0 days

0

1:2

Exmark 137-4119

CAP-FUEL, RATCHETING

$29.99

$

In Stock, Qty 5

0

1:3

Exmark 114-0284

GROMMET

$3.49

$

In Stock, Qty 8

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$17.99

$

In Stock, only 1 left!

0

1:5

Exmark 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

1:6

Exmark 109-9364

FITTING, FUEL W/LINE AND SCREEN
(Superseded to 116-2459)

$44.99

$

In Stock, only 2 left!

0

2

Exmark 146-0156

CLAMP-TANK

$2.99

$

Usually ships in 0 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

4

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 9

0

5

Exmark 110-4103

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0293

HOSE-FUEL

$6.99

$

Usually ships in 3-6 days

0

7

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

8

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

9

Exmark 110-3958

HOSE-FUEL

$28.99

$

In Stock, only 3 left!

0

10

Exmark 116-2233

HOSE-VENT, FORMED

$8.99

$

Usually ships in 3-6 days

0

11

Exmark 133-8499

VALVE-CHECK, VACUUM

$16.99

$

In Stock, only 2 left!

0

12

Exmark 1-643312

CLIP-LOOM

$6.99

$

Usually ships in 3-6 days

0

13

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

16

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 7

0

17

Exmark 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Exmark 117-1221

CANISTER-CARBON, 800CC

$82.99

$

In Stock, only 1 left!

0

20

Exmark 119-8502

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

21

Exmark 115-7872

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0
