TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) LH Wheel Motor Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

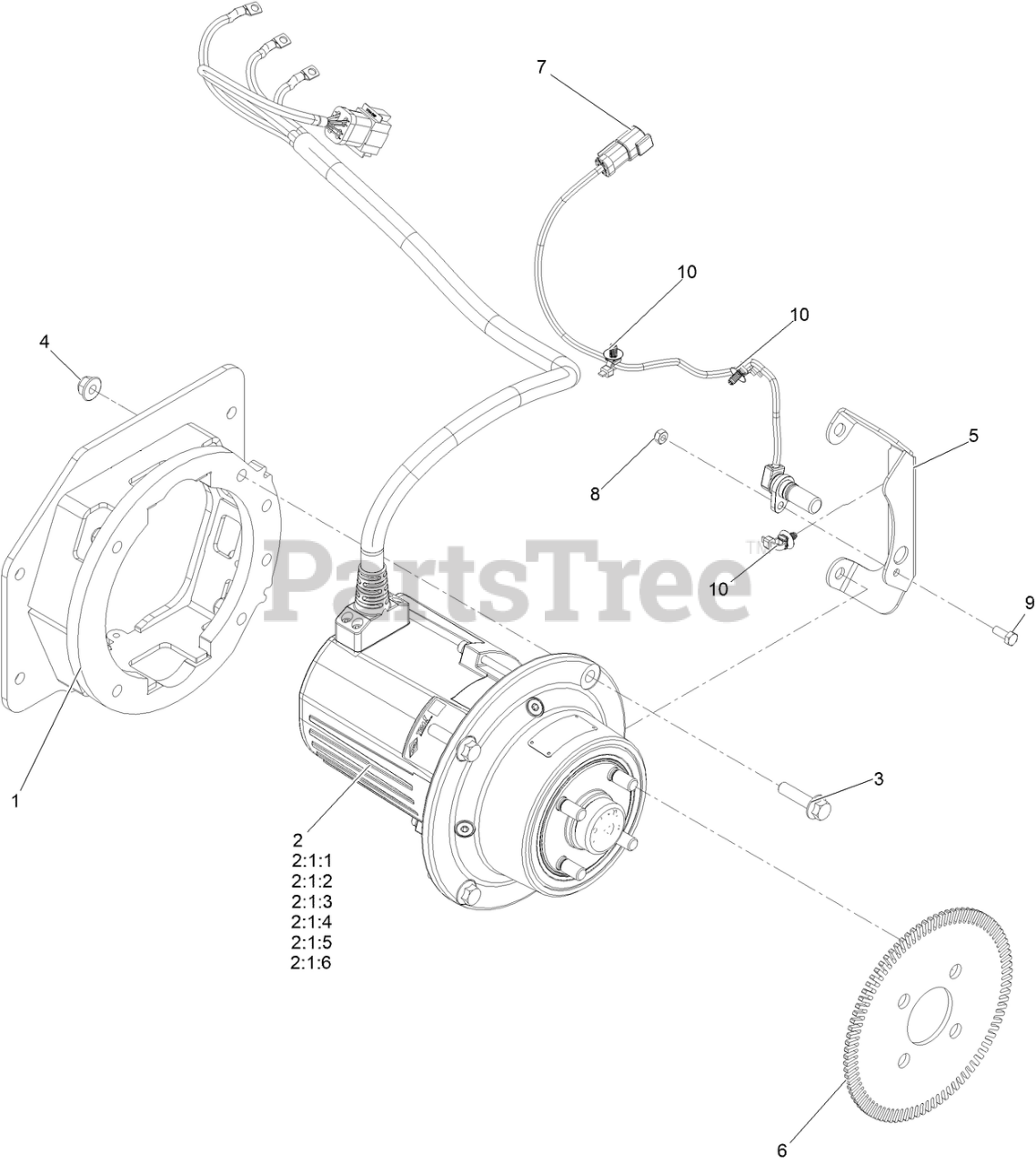

LH Wheel Motor Assembly Parts Diagram

  • Title

1

Exmark 146-2853-01

MOUNT-MOTOR,LH

$343.99

$

Usually ships in 0 days

0

2

Exmark 147-1688

MOTOR/GEARBOX ASM-48V,

$3247.99

$

Usually ships in 0 days

0

2:1:1

Exmark 161-9863

Kit-Motor

$

$

Currently unavailable

2:1:2

Exmark 161-9864

Kit-Seal

$

$

Currently unavailable

2:1:3

Exmark 161-9865

Kit-Brake

$

$

Currently unavailable

2:1:4

Exmark 161-9866

Kit-Cable

$

$

Currently unavailable

2:1:5

Exmark 161-9867

Kit-Gearbox

$

$

Currently unavailable

2:1:6

Exmark 161-6844

Stud-Wheel

$

$

Currently unavailable

3

Exmark 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 146-2826

BRACKET-SENSOR,SPEED

$21.99

$

Usually ships in 0 days

0

6

Exmark 146-2828

PLATE-TARGET,SENSOR

$45.99

$

Usually ships in 0 days

0

7

Exmark 146-3055

SENSOR-SPEED W/ DEUTSCH CONNECTOR

$269.99

$

Usually ships in 0 days

0

8

Exmark 115-7373

NUT-LOCK

$0.99

$

In Stock, only 1 left!

0

9

Exmark 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Exmark 32180-400

CLIP-TIE, FIR TREE W/TIE, 5MM/.196"" HOLE

$5.99

$

Usually ships in 0 days

0
