TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) StandOn Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

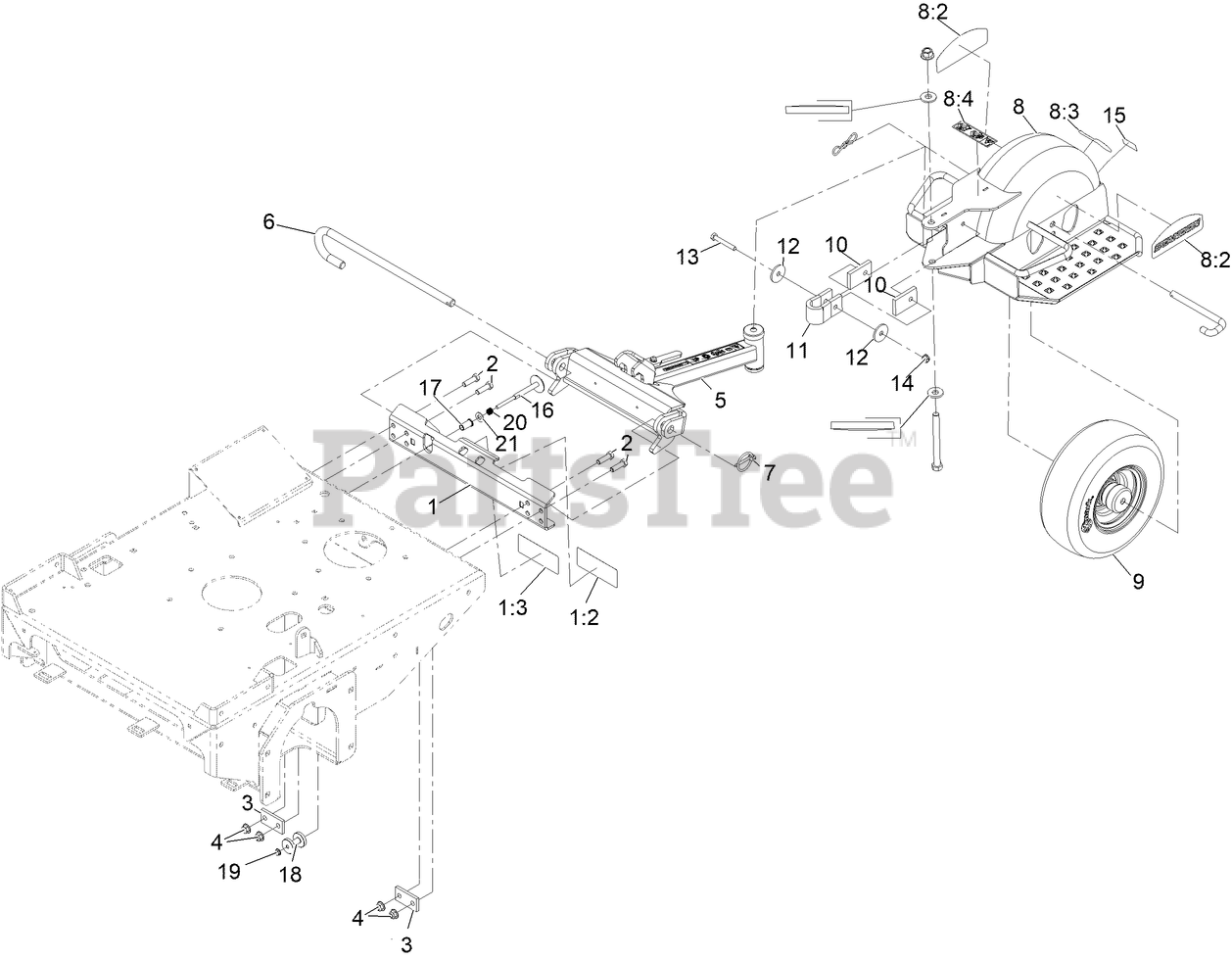

StandOn Assembly Parts Diagram

  • Title

1

Exmark 146-0796

MOUNT PLATE W/ DECALS ASM

$121.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-8225

DECAL-BELT DRIVE WARNING

$6.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-1400

DECAL-WARNING, SULKY

$5.99

$

Usually ships in 3-6 days

0

2

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-6663

PLATE,BACK-UP (PLATED)

$5.99

$

In Stock, only 4 left!

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 126-1958

ASM, DRAW BAR

$646.99

$

Usually ships in 3-6 days

0

6

Exmark 116-6302

PIN, PIVOT

$58.99

$

Usually ships in 3-6 days

0

7

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

8

Exmark 126-1952

ASM-SULKY FRAME W/ DECALS

$576.99

$

Usually ships in 3-6 days

0

8:2

Exmark 126-6893

DECAL, STANDON

$8.99

$

Usually ships in 3-6 days

0

8:3

Exmark 126-6894

DECAL, EXMARK

$6.99

$

Usually ships in 3-6 days

0

8:4

Exmark 135-0300

DECAL-WARNING HAND PINCH

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 116-7228

ASM, WHEEL AND BEARINGS

$283.99

$

In Stock, Qty 10

0

10

Exmark 103-6654

PAD,STOP

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9101

STOP, ROTATION

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

13

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 14

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

16

Exmark 146-2678

PLUNGER-SULKY ASM

$55.99

$

Usually ships in 3-6 days

0

17

Exmark 146-0794

BUSHING-PLASTIC

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 146-0817

TARGET-SWITCH

$30.99

$

Usually ships in 3-6 days

0

19

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 109-7888

Spring,Compression

$

$

Currently unavailable

21

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
