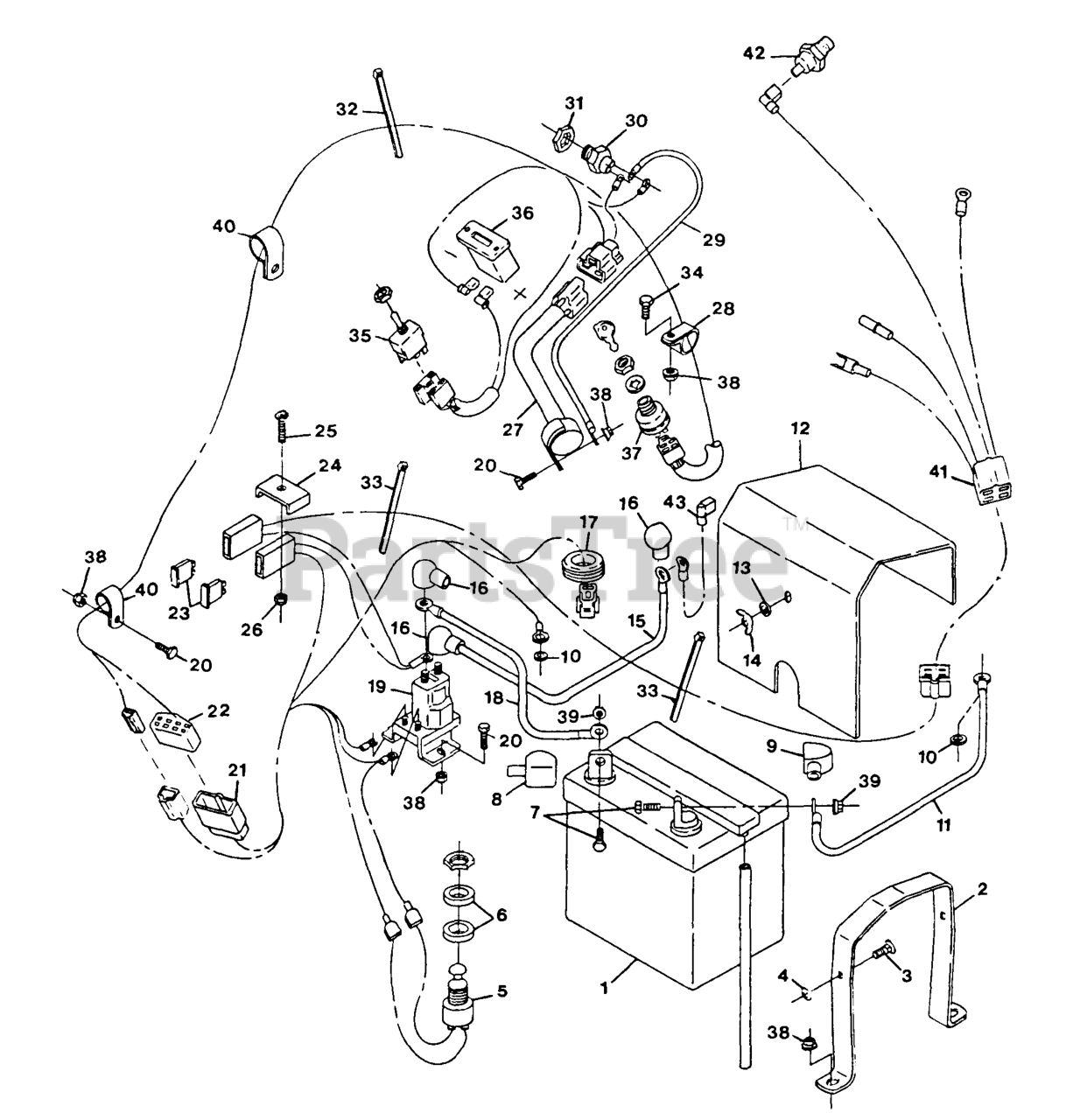

TTH-18KC - Exmark Turf Tracer Walk-Behind Mower, 18hp Kohler (SN: 090000 - 101999) (1994) Electrical Group Parts Diagram

Turf Tracer Walk-Behind Mower, 18hp Kohler

Electrical Group Parts Diagram

  • Title

1

Exmark 1-603479

Battery, 12v Manifold

$

$

Not available

2

Exmark 1-603814-03

STRAP,BATTERY HOLDDOWN

$94.99

$

Usually ships in 3-6 days

0

3

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

4

Exmark 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603760

SWITCH,PUSH BUTTON

$79.99

$

In Stock, only 2 left!

0

6

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 2 left!

0

9

Exmark 1-543390

INSULATOR, BATTERY -

$8.99

$

Usually ships in 3-6 days

0

10

Exmark 1-805506

DISCONTINUED

$

$

Not available

11

Exmark 1-543767

WIRE-GROUND

$22.99

$

In Stock, only 2 left!

0

12

Exmark 1-603105

103-3424
(Superseded to 103-3424)

$

$

Not available

13

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 1-613029

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-603488

109-7654
(Superseded to 109-7654)

$42.99

$

Usually ships in 3-6 days

0

16

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0

17

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 1-513053

109-7653
(Superseded to 109-7653)

$37.99

$

In Stock, only 1 left!

0

19

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$47.99

$

In Stock, Qty 20+

0

20

Exmark 1-800250

321-2
(Superseded to 321-2)

$3.99

$

In Stock, only 3 left!

0

21

Exmark 1-613010

HARNESS,WIRING HYDRO

$

$

Not available

22

Exmark 1-613011

DISCONTINUED (EXMARK)

$

$

Not available

23

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

24

Exmark 1-603434

CLIP-FUSE BLOCK PLTD

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 1-800256

321-9
(Superseded to 321-9)

$5.49

$

In Stock, only 2 left!

0

26

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

27

Exmark 1-513579

1-611115
(Superseded to 1-611115)

$

$

Not available

28

Exmark 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

29

Exmark 1-603491

DISCONTINUED

$

$

Not available

30

Exmark 1-303372

SWITCH,OPERATOR CNTRL

$103.99

$

Usually ships in 3-6 days

0

31

Exmark 1-803034

DISCONTINUED (EXMARK)

$

$

Not available

32

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

33

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 1-800254

321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 10

0

35

Exmark 1-543018

SWITCH,W/TERM CLIPPD

$77.99

$

In Stock, only 2 left!

0

36

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$74.99

$

In Stock, Qty 5

0

37

Exmark 1-543070

SWITCH,IGNITION

$46.99

$

In Stock, Qty 14

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

38

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

41

Exmark 1-543225

WIRHRNS,ENG ADAPTER

$

$

Not available

42

Exmark 1-603645

SWITCH-OIL PRESSURE

$130.99

$

Usually ships in 3-6 days

0

43

Exmark 1-543084

DISCONTINUED

$

$

Not available
