TTS20KAE483CA - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, 20hp Kaw, CARB (SN: 920000 - 999999) (2011) Electrical Assembly - With Solenoid Attached to Main Frame Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, 20hp Kaw, CARB

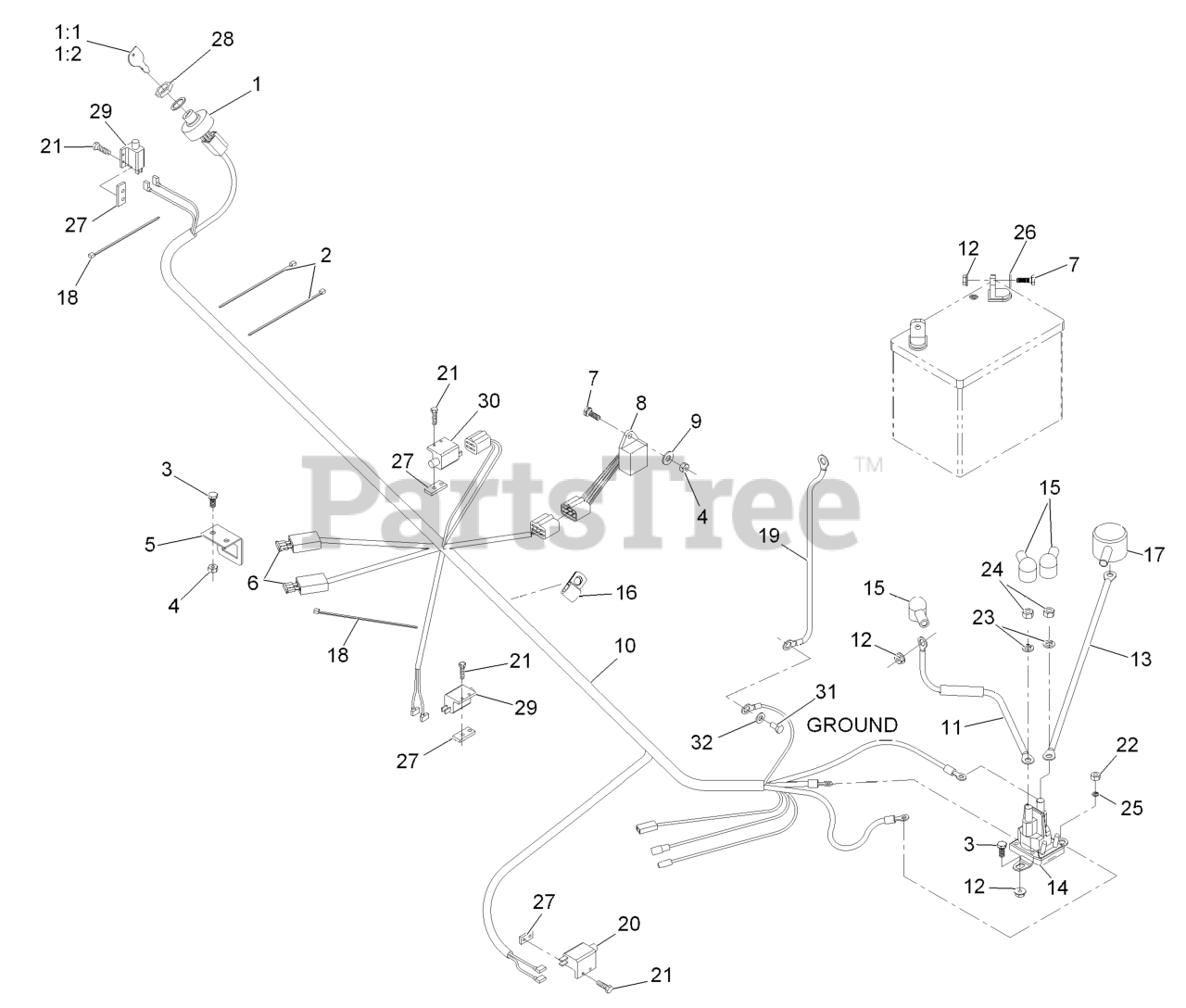

Electrical Assembly - With Solenoid Attached to Main Frame Parts Diagram

  • Title

1

Exmark 1-543070

SWITCH,IGNITION

$47.99

$

In Stock, Qty 14

0

1:1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

1:2

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

3

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-323442-01

BRACKET,FUSE

$

$

Not available

6

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 2 left!

0

7

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-613198

MODULE-OPC NO TIME DELAY

$273.99

$

In Stock, only 1 left!

0

9

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2006

HARNESS,WIRING ELEC ST

Note: Use dielectric grease on all wiring harness connectors.

$279.99

$

Usually ships in 3-6 days

0

11

Exmark 109-9415

Positive Starter Cable Asm

$31.99

$

Usually ships in 3-6 days

0

12

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Exmark 109-7628

ASM,POSITIVE BATTERY CABL

$33.99

$

In Stock, only 1 left!

0

14

Exmark 117-1197

SOLENOID

$50.99

$

In Stock, Qty 20+

0

15

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603727

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

17

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 1 left!

0

18

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 9

0

21

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

23

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

25

Exmark 3253-17

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

26

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

27

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

28

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

29

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 12

0

30

Exmark 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

31

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
