TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 316000000 - 399999999) (2016)

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

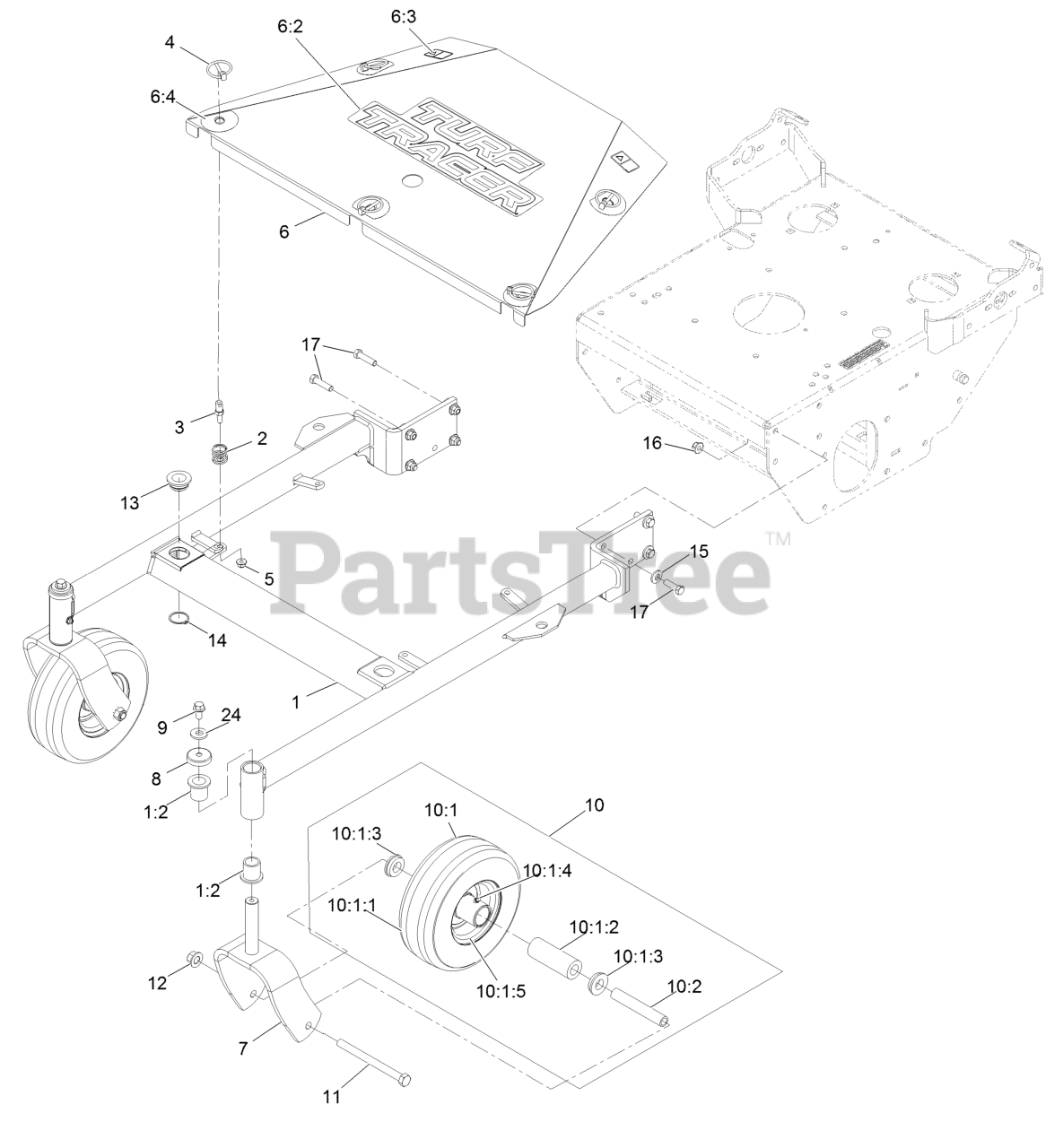

TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 316000000 - 399999999) (2016) > Parts Diagrams (13) > Main Frame Assembly

  • Title
126-1513

1

ASM, Frame W/ Bushings, 36

Part# 126-1513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $485.79

1-303514

1:2

Bearing-Flanged

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.97

126-1503

2

Spring

Part# 126-1503

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.66

126-1504

3

Pin, Spring

Part# 126-1504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.10

92-1298

4

Pin-Lynch

Part# 92-1298

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.02

104-8300

5

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

126-1516

6

ASM, Shield W/ Decals, 36

Part# 126-1516

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $170.10

126-6892

6:2

Decal-Turf Tracer

Part# 126-6892

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.29

106-5517

6:3

Decal-Warning, Hot Surface

Part# 106-5517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

126-1692

6:4

Decal-Scratch Cover

Part# 126-1692

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.58

116-7941-01

7

Fork, Caster [red]

Part# 116-7941-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $66.71

126-1425

8

Cap, Dust

Part# 126-1425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

110-1718

9

Screw-Hex Flange 3/8-16 X 3/4

Part# 110-1718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.58

1-513547

10

Spacer

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

103-2171

10

Kit,Semi-Pneumatic Wheel Replacement

Part# 103-2171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $97.88

Wheel And Tire ASM

10:1

Wheel And Tire ASM

Part# Wheel And Tire ASM

Not available

Tire

10:1:1

Tire

Part# Tire

Not available

1-513809

10:1:2

Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.33

1-513810

10:1:3

Bushing-Flanged

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

302-61

10:1:4

Zerk-45deg 1/4-28

Part# 302-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.37

Wheel

10:1:5

Wheel

Part# Wheel

Not available

1-513547

10:2

Spacer

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

325-20

11

Screw-HH 1/2-13 X 6

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.18

99-5107

12

Nut-Lock 1/2-13

Part# 99-5107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-513336

13

Bushing-Deck

Part# 1-513336

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.89

32120-33

14

Ring-Retaining

Part# 32120-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.76

98-5975

15

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

104-8301

16

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

323-7

17

Screw-HH 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-373034

24

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43
