TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017)

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

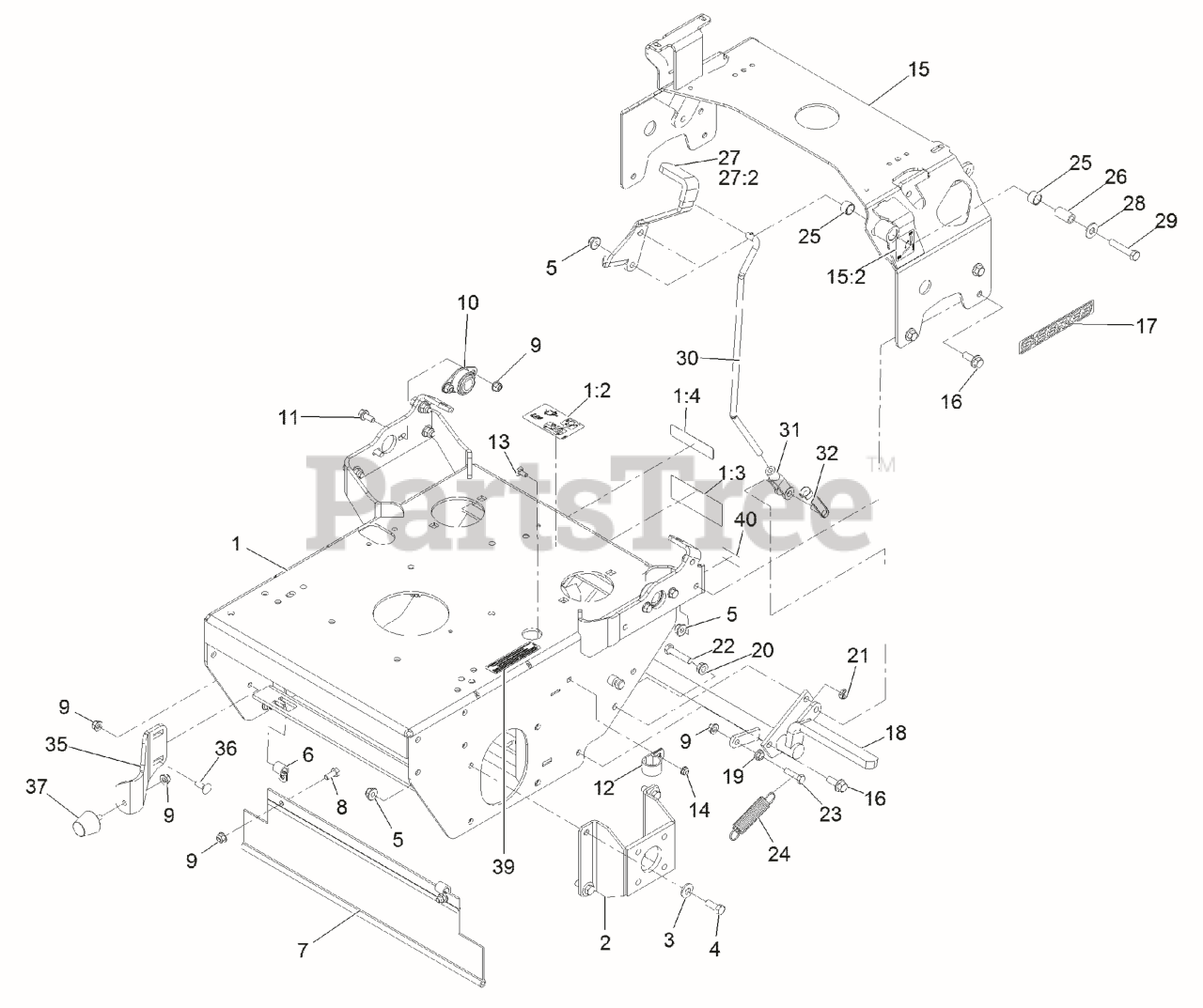

TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Engine Deck

  • Title
126-1238

1

ASM, Engine Deck W/ Decals

Part# 126-1238

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $572.58

116-8253

1:2

Decal-Drive Release

Part# 116-8253

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.42

126-1400

1:3

Decal-Warning, Sulky

Part# 126-1400

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.99

98-1977

1:4

Decal-Warning

Part# 98-1977

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.91

1-412080-01

2

Mount, Wheel Motor 36"

Part# 1-412080-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.31

98-5975

3

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

323-6

4

Screw-HH 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

104-8301

5

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

1-413510

6

Clip-Loom

Part# 1-413510

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

103-2056

7

Shield-Drag

Part# 103-2056

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.70

322-3

8

Screw-HH 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

104-8300

9

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

1-633102

10

Bearing-Flanged

Part# 1-633102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

3234-47

11

Screw-HH Flg 5/16-18 X 3/4

Part# 3234-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

1-643312

12

Clip-Loom

Part# 1-643312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

3229-11

13

Bolt-Carriage 1/4-20 X 5/8

Part# 3229-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

104-7201

14

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

126-2181

15

ASM, Tank Support W/ Decal

Part# 126-2181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $219.15

116-5988

15:2

Decal-Park Brake, CE

Part# 116-5988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.00

3234-42

16

Screw HHF 3/8-16 X 1

Part# 3234-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.49

126-6572

17

Decal-S-Series

Part# 126-6572

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

126-1599

18

Shaft-Cross, Brake

Part# 126-1599

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.73

32128-20

19

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

3290-357

20

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3296-44

21

Nut-Lock, NI

Part# 3296-44

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.54

323-9

22

Screw-HH 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

322-6

23

Screw-HH 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

1-323161

24

Spring

Part# 1-323161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.41

1-413347

25

Sleeve-Bushing

Part# 1-413347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-413344

26

Bushing-Pivot

Part# 1-413344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.81

126-2180

27

ASM, Brake Lever W/ Grip

Part# 126-2180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.73

1-303020

27:2

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

3256-4

28

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-10

29

Screw-HH 3/8-16 X 2

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

116-9959

30

Linkage, Brake

Part# 116-9959

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.73

1-633131

31

Yoke-Linkage, Brake

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

103-2399

32

Pin-Clevis Spring 3/8

Part# 103-2399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.25

126-2191-01

35

Bracket-Bumper

Part# 126-2191-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.81

3230-16

36

Bolt-Carriage 5/16-18 X 7/8

Part# 3230-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.39

1-543963

37

Bumper-Rubber

Part# 1-543963

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.14

117-2718

39

Decal-Arrester, Spark

Part# 117-2718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.55

126-4345

40

Decal-Patent

Part# 126-4345

OEM Warranty Repair Part for Exmark

Currently unavailable
