TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

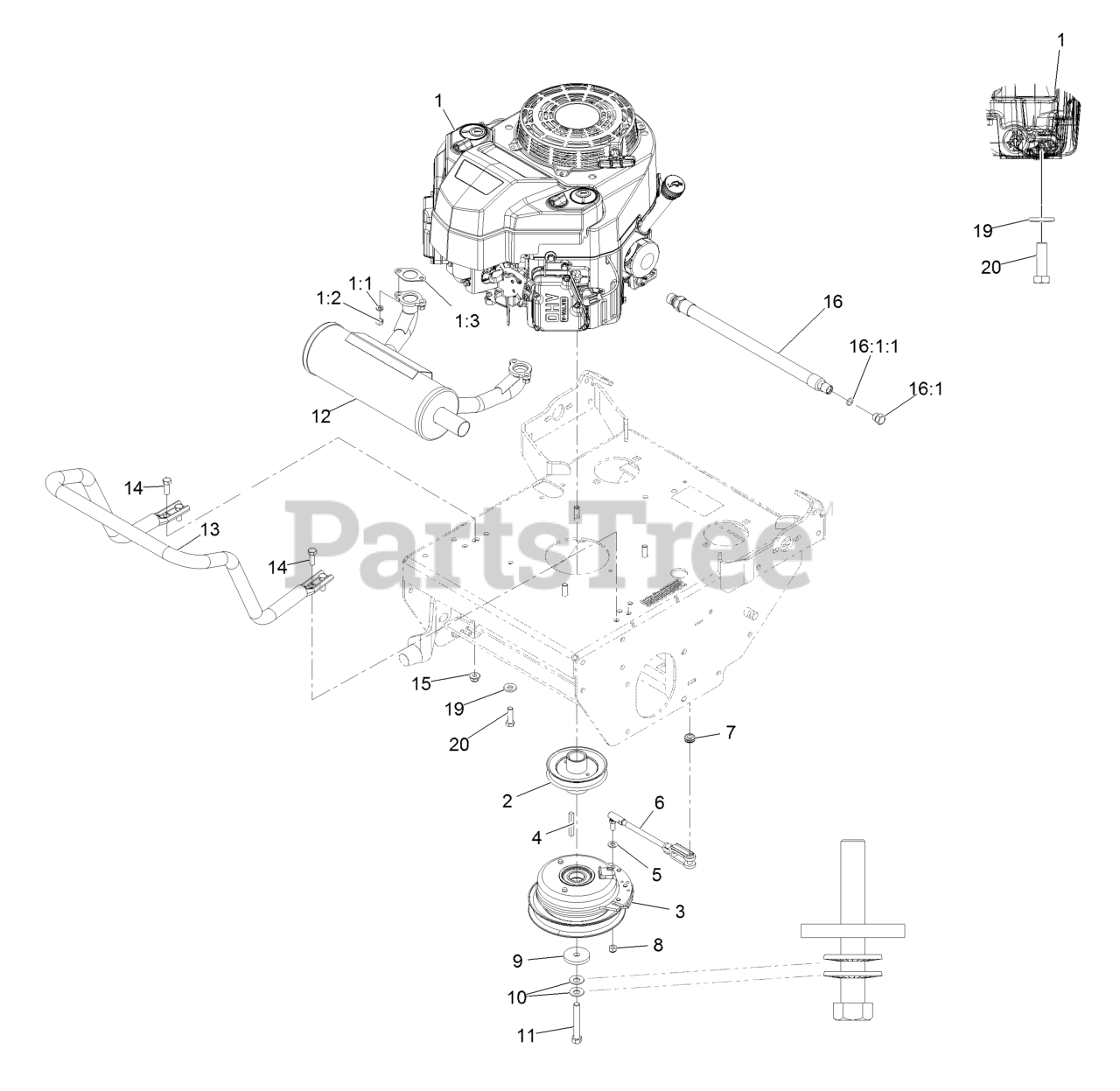

Engine Assembly Parts Diagram

  • Title

1

Engine, Kawasaki 481Cc

$

$

Not available

1:1

Exmark 114-3550

Washer-Spring Lock M8

$1.49

$

In Stock, Qty 20+

0

1:2

Exmark 114-3549

Nut-M8

$2.49

$

In Stock, Qty 20+

0

1:3

Exmark 1-653313

Gasket-Exhaust

$5.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7328

Sheave, W/ Hub

$112.99

$

Usually ships in 3-6 days

0

3

Exmark 126-2615

Clutch, 105 Ft/Lbs, 1.13

$493.99

$

In Stock, Qty 18

0

4

Exmark 5-1336

Key-Machine 1/4 X 1/4 X 2

$11.99

$

In Stock, only 2 left!

0

5

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

6

Exmark 126-0620

ASM, Clutch Anchor

$76.99

$

In Stock, only 2 left!

0

7

Exmark 237-136

Grommet

$4.49

$

In Stock, only 3 left!

0

8

Exmark 3296-4

Nut-Lock 5/16-24

$0.99

$

In Stock, Qty 6

0

9

Exmark 109-6919

Washer-Clutch

$8.99

$

In Stock, Qty 6

0

10

Exmark 1-603610

Washer-Spring Disc 7/16

$5.99

$

In Stock, Qty 20+

0

11

Exmark 3212-12

Screw-HH 7/16-20 X 3

$3.49

$

In Stock, Qty 6

0

12

Exmark 116-3735

Muffler-Horizontal

$232.99

$

In Stock, only 2 left!

0

13

Exmark 116-6278-03

Guard-Muffler
(Superseded to 135-4729-03)

$98.99

$

Usually ships in 3-6 days

0

14

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0

15

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-5052

Asm-Oil Drain Hose W/Plug

$58.99

$

Usually ships in 3-6 days

0

16:1

Exmark 353-508

Plug-W/O-Ring

$9.49

$

In Stock, only 1 left!

0

16:1:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 14

0

19

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

20

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$3.49

$

In Stock, Qty 20+

0
