TTS481KA363 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS (SN: 313000000 - 313999999) (2013) Engine Deck Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS

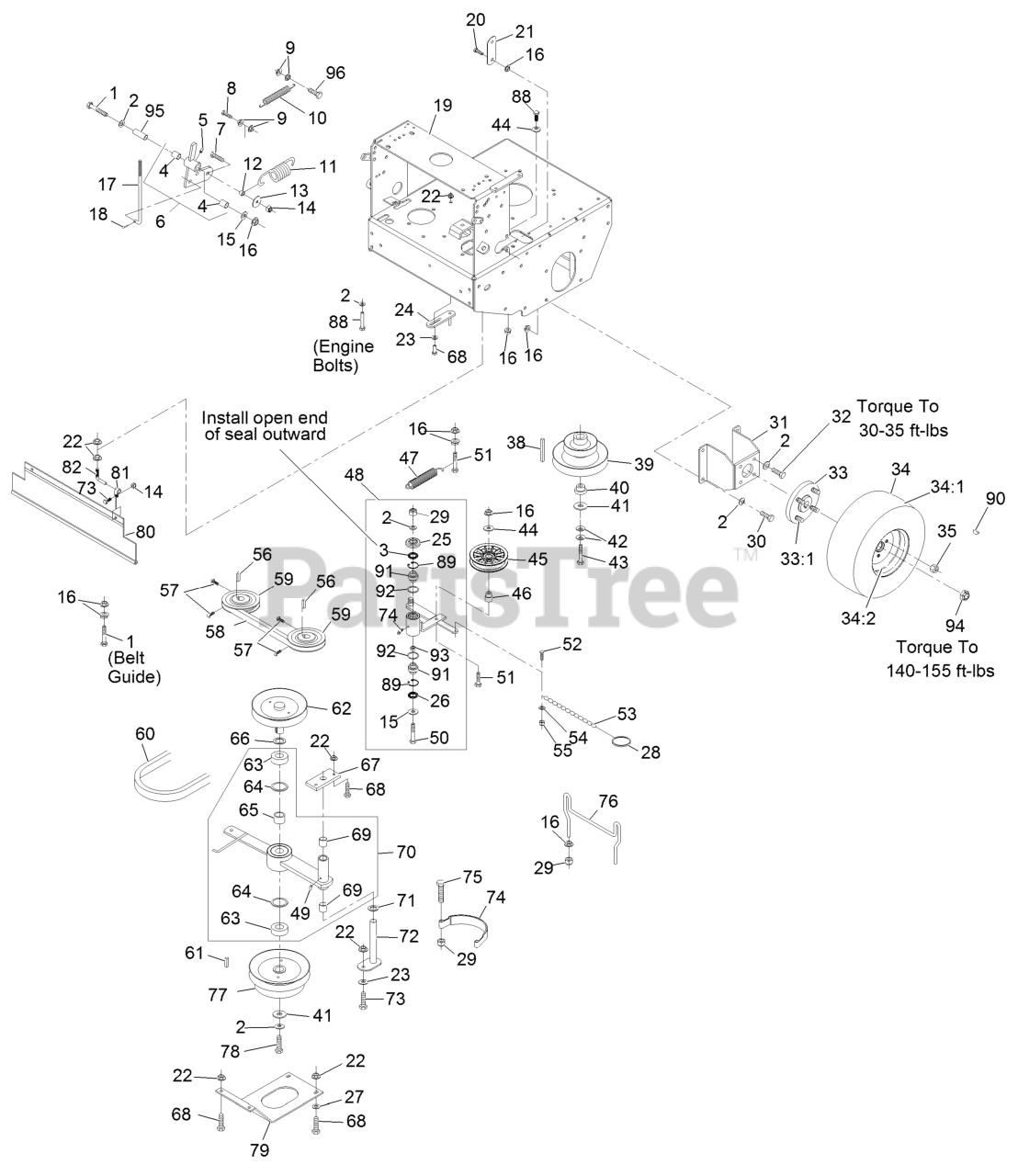

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 15

0

4

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

5

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-414143

ASM,PIVOT W/BUSHINGS

$128.99

$

Usually ships in 3-6 days

0

7

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

8

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-523498

SPRING,EXTENSION

$9.99

$

In Stock, only 2 left!

0

11

Exmark 103-7398

SPRING,EXTENSION

$17.99

$

In Stock, only 4 left!

0

12

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 3 left!

0

13

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-413282

LINKAGE,LOWER

$18.99

$

In Stock, Qty 5

0

18

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

19

Exmark 116-6129

KIT, TTS ENG DECK

$

$

Not available

20

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

21

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

In Stock, only 1 left!

0

22

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

0

24

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 11

0

25

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 12

0

26

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

27

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-323366

RING-SPLIT

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Exmark 1-412080-01

WLD,MOTOR MOUNT 36

$123.99

$

Usually ships in 3-6 days

0

32

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

33

Exmark 112-9049

WHEEL HUB ASM

$184.99

$

In Stock, only 4 left!

0

33:1

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

34

Exmark 1-413473

WHEEL AND TIRE ASM

$218.99

$

Usually ships in 3-6 days

0

34:1

Exmark 1-413474

TIRE-TURFMASTER

$134.99

$

In Stock, only 2 left!

0

34:2

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$72.99

$

In Stock, only 2 left!

0

35

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

38

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, Qty 9

0

39

Exmark 103-6309

SHEAVE, DRIVE

Note: Apply anti-seize compound in bore.

$223.99

$

In Stock, only 1 left!

0

40

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$28.99

$

In Stock, only 1 left!

0

41

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

43

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.49

$

In Stock, Qty 5

0

44

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Exmark 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, Qty 5

0

46

Exmark 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

47

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$22.99

$

In Stock, Qty 20+

0

48

Exmark 109-1296

KIT,PUMP IDLER ARM TTHP

$210.99

$

In Stock, only 1 left!

0

49

Exmark 1481

FITTING-GREASE

$6.49

$

In Stock, only 4 left!

0

50

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

51

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Exmark 1-809069

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

53

Exmark 1-323365

CHAIN-LINK, TWIST

$17.99

$

Usually ships in 3-6 days

0

54

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 10

0

57

Exmark 120-6474

SCREW-SET, SQH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 14

0

58

Exmark 109-1057

BELT,COG A 50.55
(Superseded to 109-1057-SL)

$37.99

$

In Stock, Qty 9

0

59

Exmark 1-413010

SHEAVE ASM

Note: Apply anti-seize compound in bore.

$52.99

$

In Stock, Qty 10

0

60

Exmark 103-6317

BELT,B-38.0
(Superseded to 103-6317-SL)

$36.99

$

In Stock, Qty 13

0

61

Exmark 1-807259

KEY

$2.99

$

In Stock, Qty 16

0

62

Exmark 103-6308

SHEAVE, W/ SHAFT

Note: Apply anti-seize compound in bore.

$153.99

$

In Stock, only 2 left!

0

63

Exmark 1-413111

BEARING,CLUTCH SHAFT

Note: Apply anti-seize compound in bore.

$42.99

$

In Stock, Qty 5

0

64

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

65

Exmark 1-413012

SPACER,CLUTCH BEARING

$6.99

$

In Stock, Qty 7

0

66

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

67

Exmark 1-413049-01

PLATE-CLUTCH PIVOT

$40.99

$

In Stock, only 2 left!

0

68

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

69

Exmark 1-413207

SLEEVE,BEARING

$13.99

$

In Stock, only 2 left!

0

70

Exmark 1-414418

ASM,CLUTCH ARM W/BEARING

$413.99

$

Usually ships in 3-6 days

0

71

Exmark 1-413235

WASHER-SPACER

$1.49

$

In Stock, Qty 16

0

72

Exmark 1-412138-03

WLD,PIN PIVOT

$40.99

$

In Stock, Qty 8

0

73

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

74

Exmark 1-413062

BAND,BRAKE BLADE

$

$

Not available

75

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

76

Exmark 103-6310

GUIDE,BELT (PLTD)

$33.99

$

Usually ships in 3-6 days

0

77

Exmark 1-412031

SHEAVE,6.13 W/HUB

Note: Apply anti-seize compound in bore.

$151.99

$

In Stock, only 2 left!

0

78

Exmark 1-800521

SCRW,CAP HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

79

Exmark 1-413009-01

PLATE-GUARD

$61.99

$

Usually ships in 3-6 days

0

80

Exmark 103-2056

SHIELD-DRAG

$61.99

$

In Stock, Qty 8

0

81

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 17

0

82

Exmark 1-413511

MOUNT,DRAG SHIELD

$8.49

$

In Stock, Qty 6

0

88

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

89

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

90

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

91

Exmark 103-3504

BEARING-SPHERICAL

$23.99

$

In Stock, Qty 20+

0

92

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

93

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 7

0

94

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 4 left!

0

95

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

96

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
