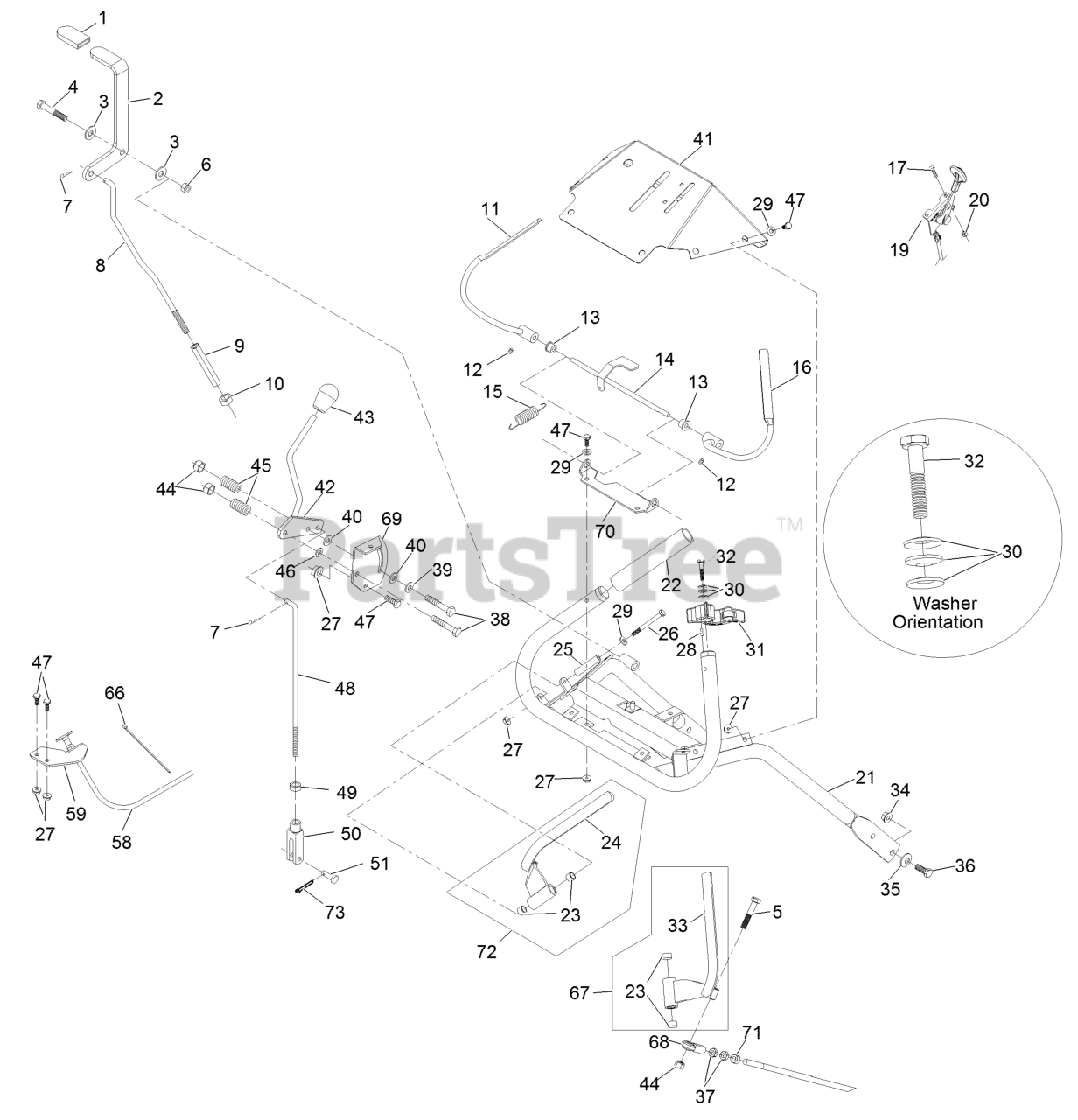

TTS481KA363CA - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kaw, CARB (SN: 312000000 - 312999999) (2012) > Parts Diagrams (8) > ECS Upper Handles and Controls Assembly

  • Title
1-303020

1

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

116-6334

2

Asm, Lever (116-1736-03) W/Grip

Part# 116-6334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.02

3256-4

3

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

323-11

4

Screw-Hh 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

322-9

5

Screw-Hh 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.38

3296-39

6

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

1-806003

7

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

103-1149

8

Link, Blade Engagement

Part# 103-1149

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.47

1-413279

9

Turnbuckle

Part# 1-413279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60

3217-7

10

Nut-Hex 3/8-16

Part# 3217-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.27

116-4079

11

Wld, Lever, Opc (Lh)

Part# 116-4079

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-803322

12

Setscrew-5/16-24 X 5/16

Part# 1-803322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-303365

13

Bushing-Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-0769-03

14

Wld, Opc Axle Lever

Part# 103-0769-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.24

1-303363

15

Spring-Extension

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

116-4080

16

Wld, Opc Lever (Rh)

Part# 116-4080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-807513

17

Bolt-Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

116-2426

19

Cable, Throttle

Part# 116-2426

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.18

3296-2

20

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

103-0770-03

21

Wld, Handle

Part# 103-0770-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $407.57

103-0815

22

Grip-Bar, Handle

Part# 103-0815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.89

1-413152

23

Bushing-Sleeve

Part# 1-413152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

116-4081-03

24

Lever, Drive (Lh)

Part# 116-4081-03

OEM Warranty Repair Part for Exmark

Currently unavailable

103-0027

25

Bushing-Lever, Drive

Part# 103-0027

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

321-14

26

Screw-Hh 1/4-20 X 2 3/4

Part# 321-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.60

32128-33

27

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

103-0464

28

Pin-Spring 1/8 X 1/2

Part# 103-0464 (Superseded to 126-2925)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3256-22

29

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

1-303435

30

Washer-Spring Disc 1/4

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-1371

31

Thumb Latch Asm Rh(Shown)

Part# 103-1371

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.00

103-1372

31

Thumb Latch Asm Lh(Not Shown)

Part# 103-1372

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.00

103-0235

32

Screw-Hh 1/4-20 X 1 1/8 W/Nylon

Part# 103-0235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

116-4082-03

33

Lever, Drive (Rh)

Part# 116-4082-03

OEM Warranty Repair Part for Exmark

Currently unavailable

3290-357

34

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

98-5975

35

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

323-6

36

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

3220-3

37

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.28

322-10

38

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

1-603716

39

Washer-Friction Disc

Part# 1-603716

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-323244

40

Washer-Friction

Part# 1-323244

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

109-4651

41

Asm, Console (109-4649-03)W/ Decals

Part# 109-4651

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $198.97

116-4083

42

Wld, Speed Shift

Part# 116-4083 (Superseded to 116-8632)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.37

103-0423

43

Knob-Nyloc 3/8-16

Part# 103-0423

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

3296-29

44

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-323245

45

Spring-Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

3256-23

46

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

321-3

47

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

1-413225

48

Rod, Speed Control

Part# 1-413225

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.40

3220-2

49

Nut-Jam 5/16-24

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.04

1-303105

50

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.81

1-808280

51

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-1796

58

Cable-Choke

Part# 103-1796

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.08

103-1797-01

59

Bracket-Cable, Choke

Part# 103-1797-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.76

1-303287

66

Tie-Cable 5 1/2 (Small)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-2513

67

Asm, Drive Lever Rh

Part# 103-2513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $84.76

103-2463

68

Balljoint

Part# 103-2463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

103-0503

69

Bracket, Shifter Slide

Part# 103-0503

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.02

103-0489-03

70

Bracket, Opc Axle

Part# 103-0489-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.79

3219-3

71

Nut-Hex 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

103-2514

72

Asm, Drive Lever Lh

Part# 103-2514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $84.76

3272-5

73

Pin-Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
