TTS481KA363CA - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kaw, CARB (SN: 312000000 - 312999999) (2012)

36" Turf Tracer S-Series Walk-Behind Mower, Kaw, CARB

TTS481KA363CA - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kaw, CARB (SN: 312000000 - 312999999) (2012) > Parts Diagrams (8) > Engine Deck Assembly

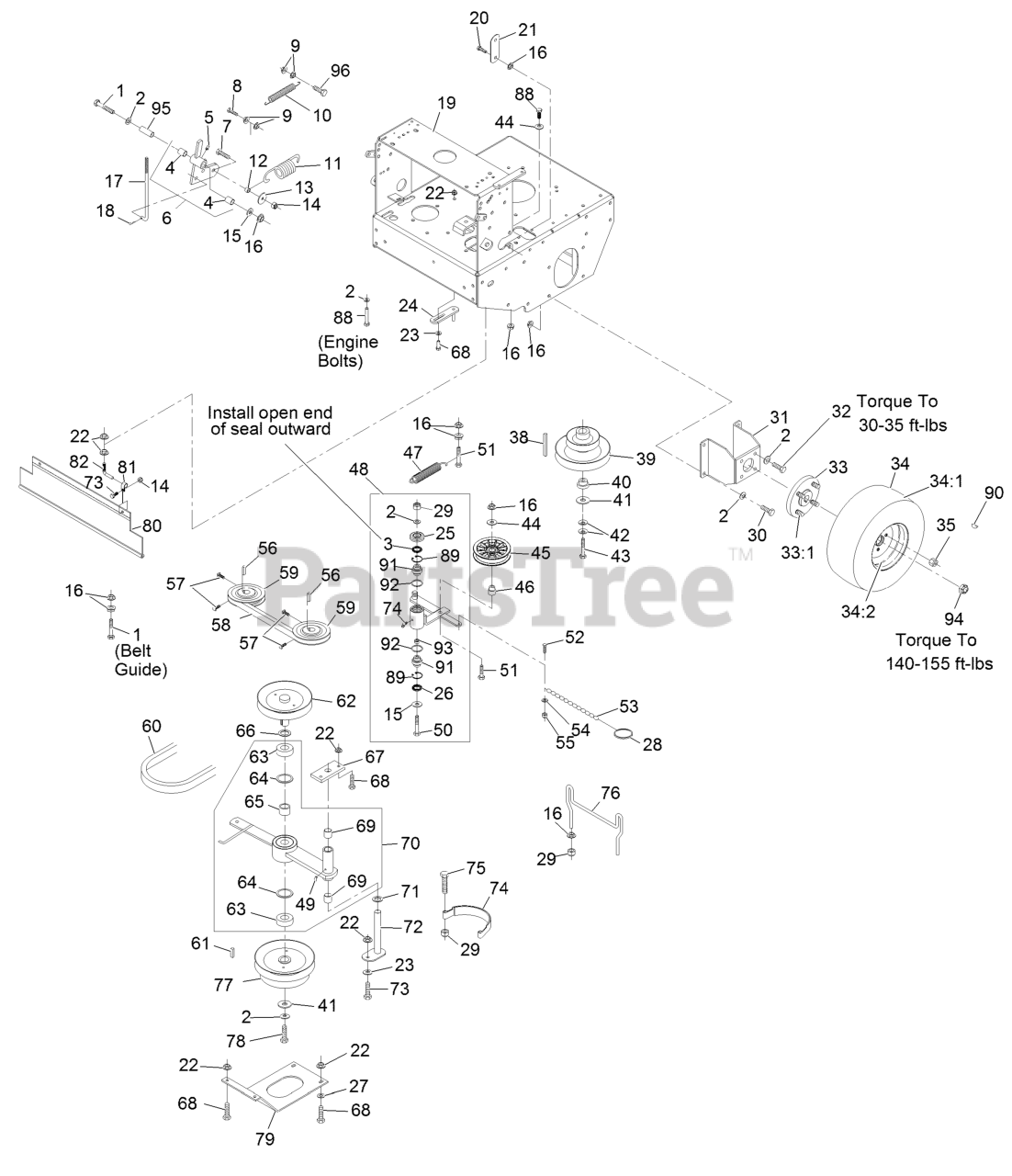

  • Title
323-11

1

Screw-Hh 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

98-5975

2

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

103-3506

3

Seal-Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

1-513034

4

Sleeve-Bearing

Part# 1-513034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.92

302-19

5

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

1-414143

6

Asm, Bellcrank (1-412285-03) W/Brgs

Part# 1-414143

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $86.08

322-6

7

Screw-Hh 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

321-6

8

Screw-Hh 1/4-20 X 1

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.40

32128-33

9

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-523498

10

Spring, Motion Control

Part# 1-523498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.70

103-7398

11

Spring, Belt Tension

Part# 103-7398

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-543007

12

Spacer

Part# 1-543007

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-213069

13

Washer

Part# 1-213069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3296-29

14

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

3256-4

15

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

3290-357

16

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-413282

17

Linkage

Part# 1-413282

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.94

1-806003

18

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

116-6129

19

Asm, Deck (116-6080-01) W/Decals

Part# 116-6129

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $967.82

323-4

20

Screw-Hh 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.95

1-633068

21

Arm-Lift, Deck

Part# 1-633068

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

32128-20

22

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-303334

23

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-322110

24

Guide-Belt

Part# 1-322110

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.02

103-2916

25

Guard-Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-3505

26

Seal-Double Lip

Part# 103-3505

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

3256-3

27

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

1-323366

28

Ring-Split

Part# 1-323366

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

3296-39

29

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

323-6

30

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

1-412080-01

31

Mount, Wheel Motor (36)

Part# 1-412080-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $83.58

323-6

32

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

112-9049

33

Wheel Hub Asm

Part# 112-9049

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $125.63

1-633926

33:1

Stud-Wheel

Part# 1-633926

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.01

1-413473

34

Wheel And Tire Asm

Part# 1-413473

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $161.11

1-413474

34:1

Tire-Turfmaster

Part# 1-413474

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $88.31

1-603715

34:2

Wheel-Rim

Part# 1-603715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.53

242-50

35

Nut-Lug 1/2-20

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

1-807264

38

Key-Machine 1/4 X 1/4 X 2 5/8

Part# 1-807264

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-6309

39

Asm, Drive Sheave

Part# 103-6309

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $156.51

1-603609

40

Bushing

Part# 1-603609

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.11

1-373034

41

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.33

1-603610

42

Washer-Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

3212-10

43

Screw-Hh 7/16-20 X 2 1/2

Part# 3212-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.62

3256-24

44

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

109-4077

45

Pulley-Idler, Flat

Part# 109-4077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

1-603496

46

Bushing-Idler

Part# 1-603496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-8599

47

Spring, Extension

Part# 103-8599 (Superseded to 116-6316)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.64

109-1296

48

Kit, Idler Arm (109-1208-03) W/Brgs

Part# 109-1296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $141.27

1481

49

Zerk-45deg 1/4-28

Part# 1481

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

98-5961

50

Screw-Hh 3/8-16 X 4 Gr8

Part# 98-5961

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

323-9

51

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

1-809069

52

Screw-Hsh #10-24 X 7/8

Part# 1-809069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.24

1-323365

53

Chain-Link, Twist

Part# 1-323365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.94

3256-14

54

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

3296-2

55

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

1-807272

56

Key-5mm X 5mm X 25mm

Part# 1-807272

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.24

1-803050

57

Setscrew-5/16-18 X 3/4

Part# 1-803050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

109-1057

58

Belt, Pump Drive

Part# 109-1057

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.13

1-413010

59

Sheave Asm

Part# 1-413010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.15

103-6317

60

Belt, Blade Clutch

Part# 103-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.80

1-807259

61

Key-Machine 1/4 X 1/4 X 1

Part# 1-807259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-6308

62

Sheave W/Shaft

Part# 103-6308

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $108.44

1-413111

63

Bearing, Clutch

Part# 1-413111

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.18

32120-8

64

Ring-Retaining

Part# 32120-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.32

1-413012

65

Spacer, Bearing

Part# 1-413012

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-523157

66

Washer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-413049-01

67

Plate, Clutch Pivot

Part# 1-413049-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.07

322-5

68

Screw-Hh 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.42

1-413207

69

Pivot, Bearing

Part# 1-413207

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-414418

70

Asm, Clutch Arm (1-412417-03) W/Bearings

Part# 1-414418

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $279.49

1-413235

71

Washer, Spacer

Part# 1-413235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-412138-03

72

Wld, Pivot Pin

Part# 1-412138-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.82

322-3

73

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-413062

74

Band, Brake

Part# 1-413062

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.76

323-8

75

Screw-Hh 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

103-6310

76

Wld, Belt Guide

Part# 103-6310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.36

1-412031

77

Sheave W/Drum

Part# 1-412031

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.38

1-800521

78

Screw-Hh 3/8-24 X 1

Part# 1-800521

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-413009-01

79

Plate, Guard

Part# 1-413009-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.19

103-2056

80

Shield-Drag

Part# 103-2056

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $43.55

1-413510

81

Clip-Loom

Part# 1-413510

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-413511

82

Hanger, Drag Shield

Part# 1-413511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

323-7

88

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

32120-10

89

Ring-Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-807019

90

Key-Woodruff 1 X 1/4

Part# 1-807019

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.97

103-3504

91

Bearing-Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.76

106-7159

92

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

103-5677

93

Spacer

Part# 103-5677

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

116-2839

94

Nut-Lock

Part# 116-2839

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-603044

95

Bushing

Part# 1-603044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.48

321-8

96

Screw-Hh 1/4-20 X 1 1/4

Part# 321-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.88
