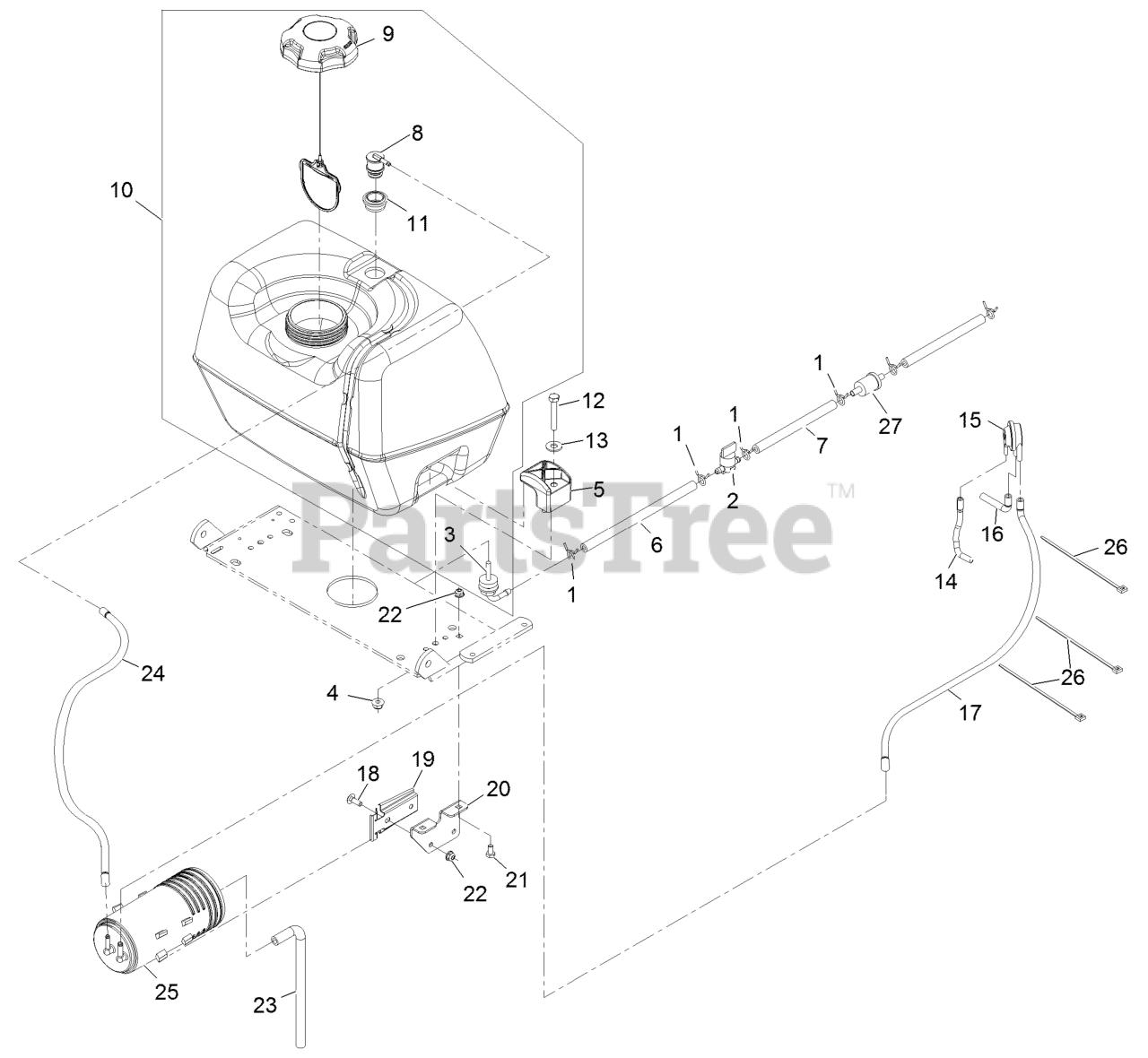

TTS481KA363CA - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kaw, CARB (SN: 312000000 - 312999999) (2012) > Parts Diagrams (8) > Fuel Tank Assembly

  • Title
2412-98

1

Clamp-Hose

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.95

1-603770

2

Valve-Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

103-2605

3

Fitting-Fuel Bulkhead W/Strainer

Part# 103-2605

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

104-8300

4

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

107-4543

5

Clamp

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.79

109-0650

6

Hose-Fuel

Part# 109-0650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

99-9415

7

Hose-Fuel

Part# 99-9415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.50

114-0285

8

Valve-Rollover

Part# 114-0285 (Superseded to 119-3547)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.94

120-5461

9

Cap-Fuel, Ratcheting

Part# 120-5461 (Superseded to 137-4119)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

116-3656

10

Asm, Fuel Tank

Part# 116-3656 (Superseded to 135-2855)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $208.39

114-0284

11

Grommet

Part# 114-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

322-10

12

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

3256-3

13

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

116-2394

14

Hose-Vent, Formed

Part# 116-2394

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

116-2232

15

Valve-Control, Vacuum

Part# 116-2232

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.65

116-2233

16

Hose-Vent, Formed

Part# 116-2233

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.63

116-2231

17

Hose-Vent, Formed

Part# 116-2231

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.69

321-2

18

Screw-Hh 1/4-20 X 1/2

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.01

114-0292

19

Bracket-Canister, Carbon

Part# 114-0292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.96

115-4486-01

20

Bracket-Canister, Carbon

Part# 115-4486-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.15

3229-1

21

Bolt-Carriage 1/4-20 X 3/4

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.62

104-7201

22

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

115-0962

23

Hose-Vent, Canister

Part# 115-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.76

114-0286

24

Hose-Vent

Part# 114-0286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.87

117-1221

25

Canister-Carbon, 800cc

Part# 117-1221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.82

1-303335

26

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

Pn 41019-1055 Filter W/6in Fuel Line

27

Pn 41019-1055 Filter W/6in Fuel Line

Part# Pn 41019-1055 Filter W/6in Fuel Line

Note: (Not Used)

Not available
