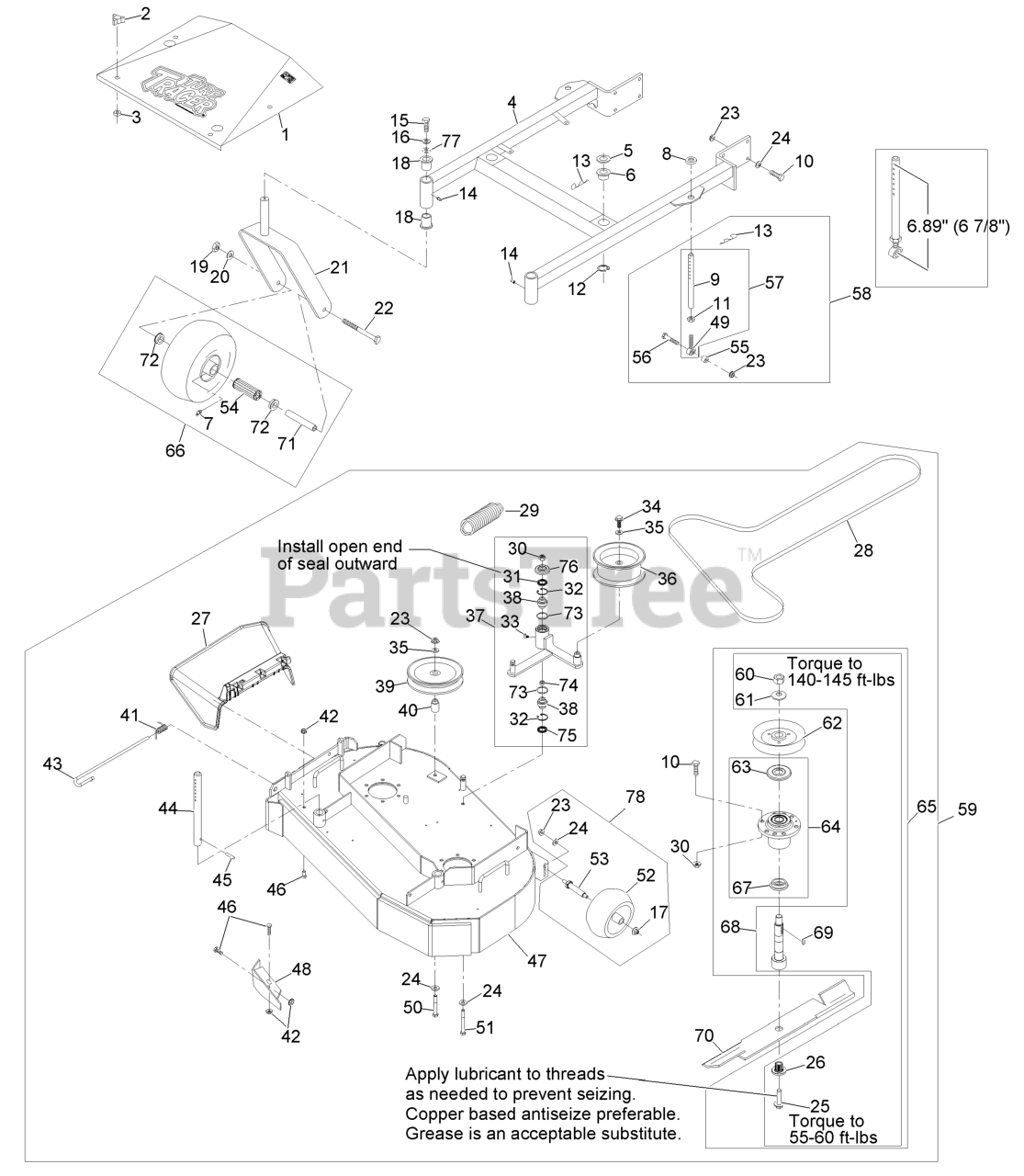

  • Title
116-2710

1

Shield, Belt (1-413098-01) W/Decals

Part# 116-2710

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $204.86

1-323385

2

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-323417

3

Washer-Belt Shield

Part# 1-323417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-414309

4

Wld, Support (1-412108-01) W/Bushings & Decals

Part# 1-414309

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $671.76

1-413425

5

Spacer

Part# 1-413425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-513336

6

Bushing-Deck

Part# 1-513336

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

302-61

7

Zerk-45deg 1/4-28

Part# 302-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-323539

8

Spacer-Blade Drive

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.00

1-413525

9

Link, Rear Deck Support

Part# 1-413525

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.42

323-7

10

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3220-3

11

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.28

32120-33

12

Ring-Retaining

Part# 32120-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.27

1-806009

13

Hairpin-Cotter #206

Part# 1-806009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

302-52

14

Zerk-1/8-27 Str

Part# 302-52

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.84

323-6

15

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

3253-5

16

Washer-Lock 3/8 Heavy

Part# 3253-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

109-6658

17

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-303514

18

Bearing-Flanged

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

3217-9

19

Nut-Hex 1/2-13

Part# 3217-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

3253-7

20

Washer-Lock 1/2

Part# 3253-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-522143-01

21

Wld, Caster

Part# 1-522143-01 (Superseded to 116-7941-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $60.95

325-20

22

Screw-Hh 1/2-13 X 6

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

3290-357

23

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

98-5975

24

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

109-9220

25

Screw-Sems 1/2-20 X 2.19

Part# 109-9220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.64

103-3037

26

Bushing,Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.64

109-5151

27

Deflector-Discharge

Part# 109-5151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.31

1-413094

28

Belt, Deck Drive

Part# 1-413094

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $82.72

103-3330

29

Spring-Extension

Part# 103-3330 (Superseded to 116-6317)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

3296-39

30

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

103-3506

31

Seal-Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

32120-10

32

Ring-Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

302-40

33

Zerk-90deg 1/4-28

Part# 302-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.37

3234-11

34

Screw-Hh Flg 3/8-16 X 1

Part# 3234-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.12

3256-24

35

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

1-413099

36

Pulley-Idler

Part# 1-413099 (Superseded to 116-4666)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.81

103-8584

37

Kit, Idler Arm (103-7327-03) W/Brgs

Part# 103-8584

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $150.92

103-3504

38

Bearing-Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.76

1-613098

39

Pulley-Idler

Part# 1-613098

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.08

1-413113

40

Bushing-Idler

Part# 1-413113

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

116-0962

41

Spring, Torsion

Part# 116-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

32128-20

42

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

109-8854

43

Pin-Chute

Part# 109-8854

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

1-603001

44

Rod, Deck Support

Part# 1-603001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60

1-806332

45

Rollpin 1/4 X 1 1/2

Part# 1-806332 (Superseded to 32121-15)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

322-2

46

Screw-Hh 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.86

1-414383

47

Wld, Deck (116-0613-01) W/Decals,Discharge Baffle & Support Rods

Part# 1-414383

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1770.82

116-2297-01

48

Baffle, Discharge

Part# 116-2297-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.00

1-613204

49

Balljoint

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

323-13

50

Screw-Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.82

98-5961

51

Screw-Hh 3/8-16 X 4 Gr8

Part# 98-5961

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-603299

52

Roller-Scalp, Anti

Part# 1-603299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

99-2842

53

Spacer

Part# 99-2842 (Superseded to 126-2928)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

1-513809

54

Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-603050

55

Spacer

Part# 1-603050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

323-9

56

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

1-414521

57

Link, Assembly

Part# 1-414521 (Superseded to 1-411532)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $98.21

1-411532

58

Kit, Support Link W/Pin

Part# 1-411532

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $98.21

103-0320

59

Asm, Deck Complete

Part# 103-0320

OEM Warranty Repair Part for Exmark

Currently unavailable

3217-46

60

Nut-Hex 3/4-16 Heavy

Part# 3217-46

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.97

103-2802

61

Washer-Spring Disc 3/4

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-413424

62

Sheave W/ Hub

Part# 1-413424

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.95

103-1330

63

Guard-Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-8280

64

Kit, Cutter Housing

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

103-9081

65

Asm, Cutter Housing Complete

Part# 103-9081

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $309.68

103-2171

66

Kit, Tire & Wheel Asm W/ Spacer

Part# 103-2171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.43

103-2535

67

Spacer-Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.21

103-9071

68

Kit, Spindle

Part# 103-9071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $147.89

1-807268

69

Key-Machine 1/4 X 3/16 X 1

Part# 1-807268

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-6402

70

Blade-Notched

Part# 103-6402 (Superseded to 103-6402-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.23

103-6392

70

Blade, Mulch 18.0 (.94 Hole)

Part# 103-6392 (Superseded to 103-6392-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.23

103-6387

70

Blade, Low Lift 18.0 (.94 Hole)

Part# 103-6387 (Superseded to 103-6387-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

103-6382

70

Blade, Solid 18.0 (.94 Hole)

Part# 103-6382 (Superseded to 103-6382-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

116-5175

70

Blade-Extreme 2, 18.00"

Part# 116-5175 (Superseded to 116-5175-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.23

1-513547

71

Spacer

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-513810

72

Bushing-Flanged

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

106-7159

73

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

103-5677

74

Spacer

Part# 103-5677

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-3505

75

Seal-Double Lip

Part# 103-3505

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

103-2916

76

Guard-Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-373034

77

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.33

103-4051

78

Kit,Anti-Scalp Roller

Part# 103-4051 (Superseded to 116-9981)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.88
