TTS541CKA48300 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 315000000 - 315999999) (2015) Electrical Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

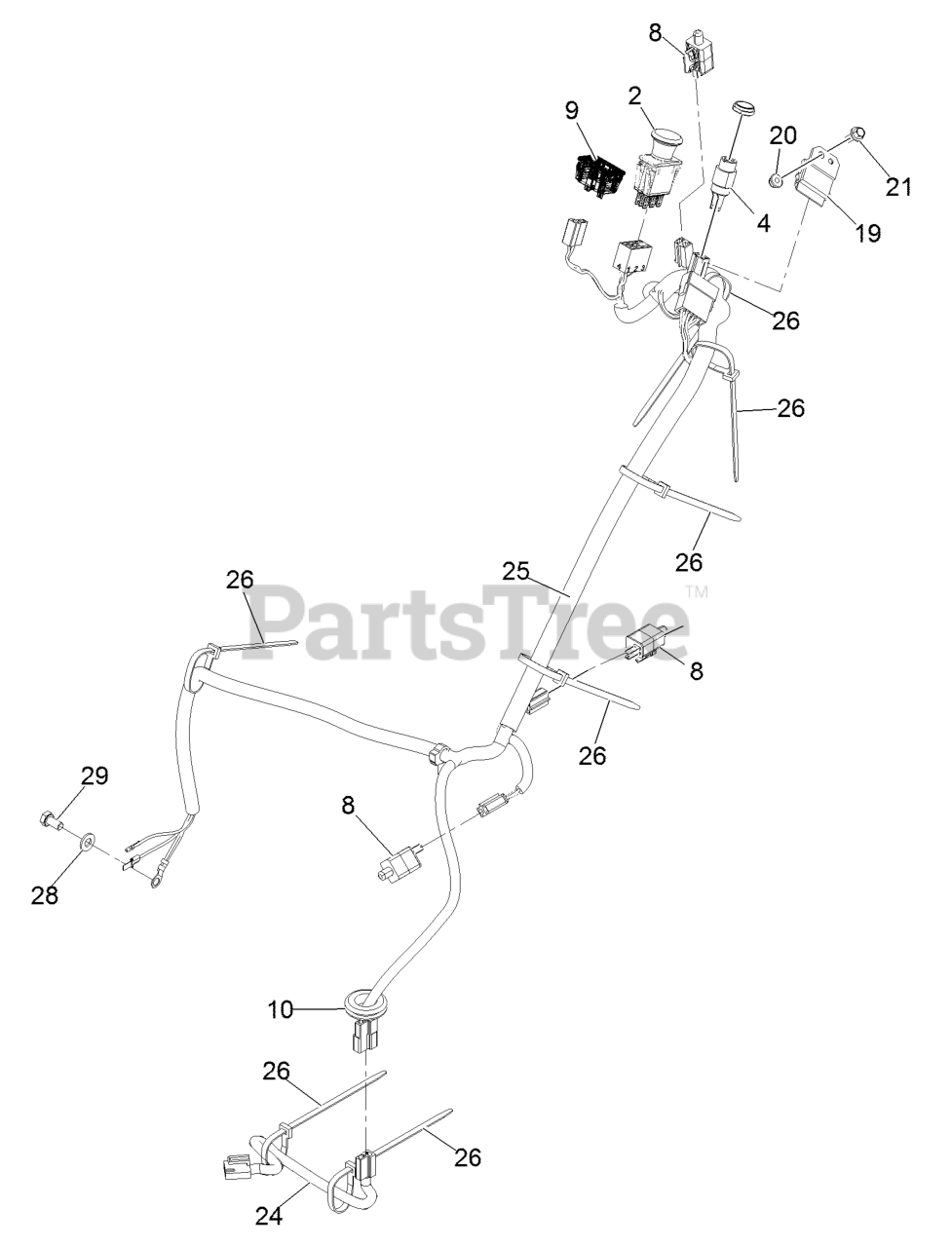

Electrical Assembly Parts Diagram

  • Title

2

Exmark 103-5221

SWITCH-PTO

$61.99

$

In Stock, Qty 20+

0

4

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$23.99

$

In Stock, Qty 6

0

4

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

8

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

9

Exmark 126-3931

METER-HOUR

$71.99

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 1-323430

MODULE-INTERLOCK

$148.99

$

In Stock, only 2 left!

0

20

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Exmark 126-1592

SCREW-HEAD, FLANGE

$1.49

$

In Stock, only 1 left!

0

24

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$16.99

$

In Stock, Qty 10

0

25

Exmark 126-0625

HARNESS-MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$353.99

$

In Stock, only 1 left!

0

26

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

28

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

29

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 10

0
