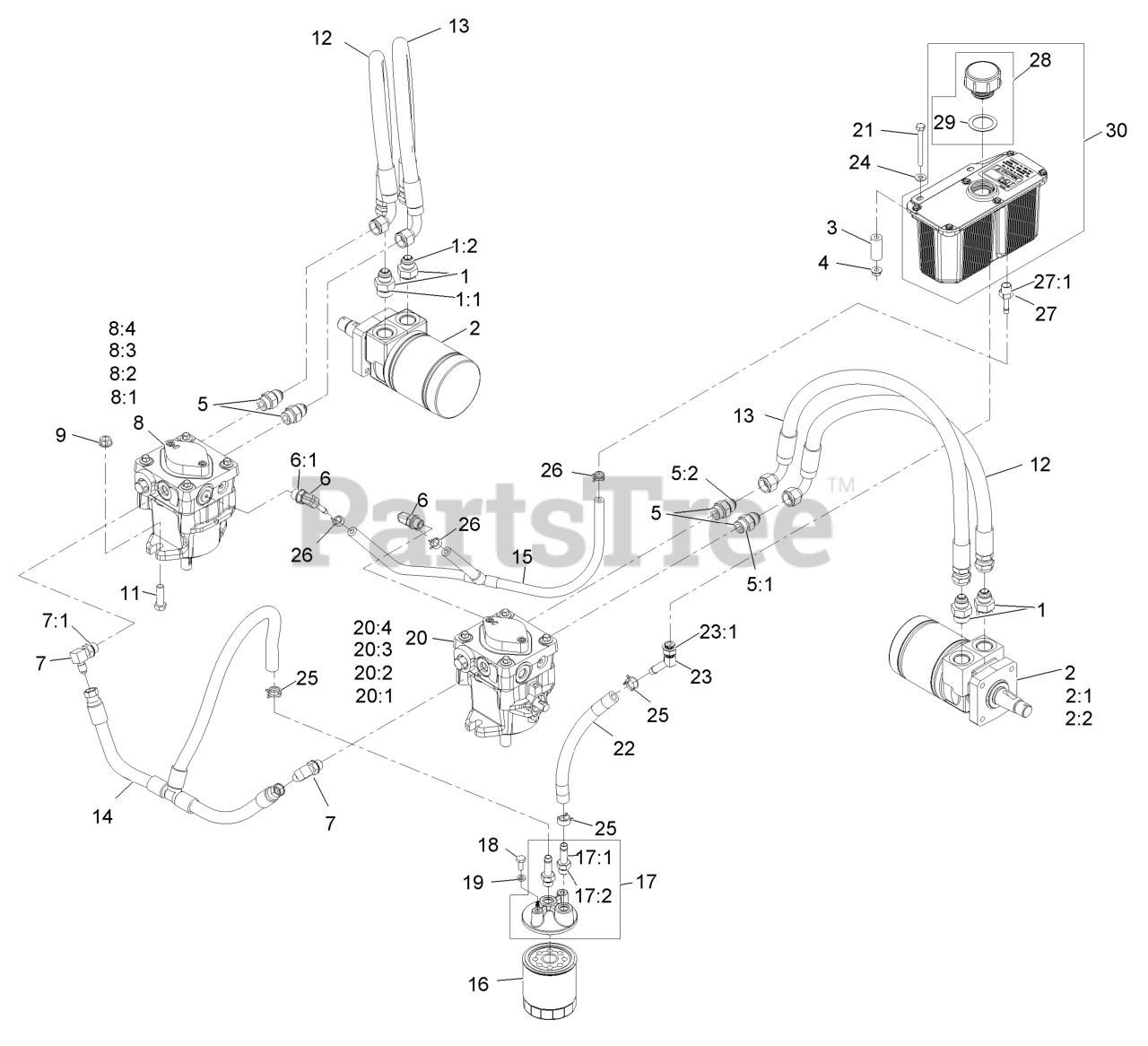

TTS541KA523 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS (SN: 312000000 - 312999999) (2012) Hydraulic Assembly Parts Diagram

52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$23.99

$

In Stock, Qty 7

0

1:1

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 20+

0

1:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1208.99

$

Usually ships in 3-6 days

0

2:1

Exmark 1-000138

BEARING AND SEAL KIT

$341.99

$

Usually ships in 3-6 days

0

2:2

Exmark 1-000119

SEAL KIT

$222.99

$

In Stock, only 1 left!

0

3

Exmark 103-2191

SPACER

$8.49

$

Usually ships in 3-6 days

0

4

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

5

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, Qty 7

0

5:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

5:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 103-1799

ELBOW-90 DEG

$33.99

$

In Stock, only 1 left!

0

6:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 2 left!

0

7:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

8

Exmark 116-0942

LH HYD PUMP ASM

$1267.99

$

In Stock, only 1 left!

0

8:1

Exmark 103-2664

INPUT SHAFT KIT

$254.99

$

Usually ships in 3-6 days

0

8:2

Exmark 94-6922

BEARING-THRUST

$68.99

$

In Stock, only 2 left!

0

8:3

Exmark 103-2666

CYLINDER BLOCK KIT

$596.99

$

Usually ships in 3-6 days

0

8:4

Exmark 105-6184

SEAL OVERHAUL KIT

$93.99

$

In Stock, only 1 left!

0

9

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, Qty 5

0

11

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-613034

119-7827
(Superseded to 119-7827)

$85.99

$

In Stock, only 4 left!

0

13

Exmark 1-323241

HOSE-PRESSURE, HIGH

$94.99

$

Usually ships in 3-6 days

0

14

Exmark 116-2123

CHARGE HOSE ASM

$66.99

$

Usually ships in 3-6 days

0

15

Exmark 116-0918

CASE DRAIN HOSE ASM

$41.99

$

Usually ships in 3-6 days

0

16

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$52.99

$

In Stock, Qty 8

0

16

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32degF (0degC).

$52.99

$

In Stock, only 2 left!

0

17

Exmark 103-2889

FILTER HEAD ASM

$117.99

$

Usually ships in 3-6 days

0

17:1

Exmark 103-1912

ADAPTER-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

17:2

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

18

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

20

Exmark 116-0943

RH HYD PUMP ASM

$1267.99

$

Usually ships in 3-6 days

0

20:1

Exmark 103-2664

INPUT SHAFT KIT

$254.99

$

Usually ships in 3-6 days

0

20:2

Exmark 94-6922

BEARING-THRUST

$68.99

$

In Stock, only 2 left!

0

20:3

Exmark 103-2666

CYLINDER BLOCK KIT

$596.99

$

Usually ships in 3-6 days

0

20:4

Exmark 105-6184

SEAL OVERHAUL KIT

$93.99

$

In Stock, only 1 left!

0

21

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

22

Exmark 103-2959

HOSE-CHARGE

$9.49

$

Usually ships in 3-6 days

0

23

Exmark 103-1807

FITTING-BARBED, 45 DEG

$30.99

$

Usually ships in 3-6 days

0

23:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

25

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 10

0

27

Exmark 103-1801

ADAPTER-STRAIGHT

$34.99

$

In Stock, only 1 left!

0

27:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$36.99

$

In Stock, only 4 left!

0

29

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-1947

HYD RESERVOIR ASM

$279.99

$

Usually ships in 3-6 days
