Exmark TTS541KA523 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS (SN: 313000000 - 313999999) (2013) ECS Upper Handles And Controls Assembly Parts Lookup with Diagrams

1

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

2

Exmark 116-6334

ASM, LEVER W/GRIP

$70.99

$

Usually ships in 3-6 days

3

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

4

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

5

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 15

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

7

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

8

Exmark 103-1149

LINK,BLADE ENGAGE (PLTD)

$28.99

$

In Stock, only 2 left!

9

Exmark 1-413279

TURNBUCKLE

$54.99

$

In Stock, only 3 left!

10

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 19

11

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$41.99

$

In Stock, only 2 left!

12

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

13

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$51.99

$

In Stock, Qty 14

15

Exmark 1-303363

SPRING-EXTENSION

$6.99

$

In Stock, Qty 14

16

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$41.99

$

In Stock, only 4 left!

17

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

19

Exmark 116-2426

CONTROL, THROTTLE

$52.99

$

Usually ships in 3-6 days

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

21

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$730.99

$

Usually ships in 3-6 days

22

Exmark 103-0815

GRIP-BAR, HANDLE

$13.99

$

In Stock, Qty 5

23

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 12

24

Exmark 116-4081-03

Lever, Drive Lh

$

Currently unavailable 

25

Exmark 103-0027

BUSHING-LEVER, DRIVE

$21.99

$

In Stock, only 2 left!

26

Exmark 321-14

SCREW-HH

$5.49

$

In Stock, Qty 12

27

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

28

Exmark 103-0464

126-2925

(Superseded to 126-2925) 

$1.49

$

In Stock, only 3 left!

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

30

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

31

Exmark 103-1371

ASM,LATCH RH THUMB

$36.99

$

In Stock, Qty 5

31

Exmark 103-1372

ASM,LATCH LH THUMB

$36.99

$

In Stock, only 2 left!

32

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 14

33

Exmark 116-4082-03

Lever, Drive Rh

$

Currently unavailable 

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

36

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

37

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

38

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

39

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 4 left!

40

Exmark 1-323244

WASHER-FRICTION

(Superseded to 93-1633) 

$3.49

$

In Stock, Qty 10

41

Exmark 109-4651

ASM,CONSOLE W/DECALS

$

Not available 

42

Exmark 116-8632

LEVER, SHIFT W/GRIP

$74.99

$

In Stock, Qty 8

43

Exmark 103-5994

GRIP-HANDLE, STEERING

$14.99

$

Usually ships in 3-6 days

44

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

45

Exmark 1-323245

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 9

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

47

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

48

Exmark 1-413225

ROD,SPEED CONTROL

$17.99

$

In Stock, only 2 left!

49

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

50

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

51

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

58

Exmark 103-1796

CABLE-CHOKE

$54.99

$

Usually ships in 3-6 days

59

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.99

$

In Stock, only 1 left!

66

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

$152.99

$

Usually ships in 3-6 days

68

Exmark 103-2463

JOINT-BALL, END

$30.99

$

In Stock, only 4 left!

69

Exmark 103-0503

BRACKET,SHIFTER SLIDE (PL

$16.99

$

Usually ships in 3-6 days

70

Exmark 103-0489-03

BRACKET,OPC AXLE

$27.99

$

In Stock, only 3 left!

71

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 13

72

Exmark 103-2514

DRIVE LEVER-ASM, LH

$152.99

$

In Stock, only 4 left!

73

Exmark 3272-5

PIN-COTTER

$1.99

$

Usually ships in 3-6 days

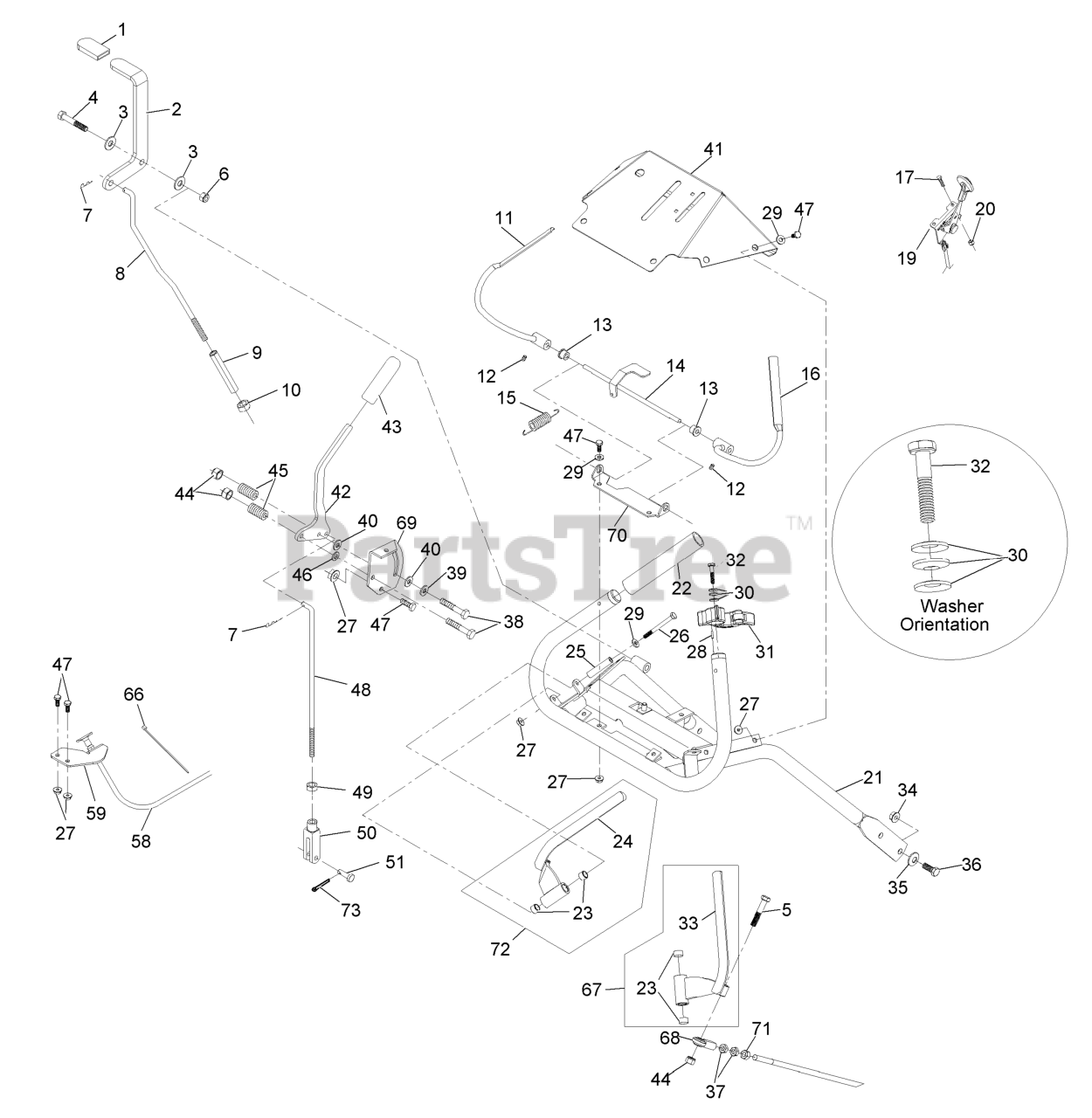

TTS541KA523 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS (SN: 313000000 - 313999999) (2013) ECS Upper Handles And Controls Assembly Parts Diagram

ECS Upper Handles And Controls Assembly Parts Diagram
