Exmark TTS600GKA363E0 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 416150475 - 417930745) (Rev A) (2024) Handle Assembly Parts Lookup with Diagrams

1

Exmark 126-2642-03

WELD, HANDLE

$505.99

$

Usually ships in 3-6 days

2

Exmark 103-0815

GRIP-BAR, HANDLE

$13.99

$

In Stock, Qty 5

4

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

6

Exmark 126-4707

ASM, CONSOLE W/ DECALS

$145.99

$

Usually ships in 3-6 days

6:2

Exmark 135-2851

DECAL-CONSOLE

$28.99

$

Usually ships in 3-6 days

6:3

Exmark 103-2242

DECAL,LH ECS INSTRUCTION

$9.99

$

In Stock, Qty 6

6:4

Exmark 103-2243

DECAL,RH ECS INSTRUCTION

$9.99

$

In Stock, Qty 7

6:5

Exmark 126-6877

DECAL, EXMARK LOGO

$8.49

$

In Stock, only 1 left!

7

Exmark 103-0027

BUSHING-LEVER, DRIVE

$21.99

$

In Stock, only 2 left!

8

Exmark 103-2513

DRIVE LEVER-ASM, RH

$152.99

$

Usually ships in 3-6 days

8:1

Exmark 116-4082

WLD,RH DRIVE LEVER

$61.99

$

Usually ships in 3-6 days

8:2

Exmark 126-9366

BUSHING, SLEEVE

$2.99

$

Usually ships in 3-6 days

9

Exmark 103-1371

ASM,LATCH RH THUMB

$36.99

$

In Stock, Qty 5

10

Exmark 103-2514

DRIVE LEVER-ASM, LH

$152.99

$

In Stock, only 4 left!

10:1

Exmark 116-4081

WLD,LH DRIVE LEVER

$61.99

$

Usually ships in 3-6 days

10:2

Exmark 126-9366

BUSHING, SLEEVE

$2.99

$

Usually ships in 3-6 days

11

Exmark 103-1372

ASM,LATCH LH THUMB

$36.99

$

In Stock, only 2 left!

12

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

13

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$51.99

$

In Stock, Qty 14

14

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$41.99

$

In Stock, only 2 left!

14:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

15

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$41.99

$

In Stock, only 4 left!

15:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

16

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

18

Exmark 93-1633

WASHER

$3.49

$

In Stock, Qty 10

19

Exmark 126-0148

LEVER, SHIFT W/GRIP

$61.99

$

In Stock, only 2 left!

19:2

Exmark 103-5994

GRIP-HANDLE, STEERING

$14.99

$

Usually ships in 3-6 days

20

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 4 left!

21

Exmark 322-11

SCREW-HH

(Superseded to 120-9738) 

$1.99

$

In Stock, Qty 20+

22

Exmark 1-323245

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 9

23

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

25

Exmark 109-3958

CONTROL-THROTTLE

$43.99

$

In Stock, only 4 left!

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

28

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

29

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

30

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

31

Exmark 321-14

SCREW-HH

$5.49

$

In Stock, Qty 12

33

Exmark 126-2931

SCREW-SHOULDER

$2.99

$

In Stock, Qty 11

34

Exmark 1-303363

SPRING-EXTENSION

$6.99

$

In Stock, Qty 14

35

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

36

Exmark 1-413225

ROD,SPEED CONTROL

$17.99

$

In Stock, only 2 left!

37

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

38

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

39

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 15

40

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

41

Exmark 126-2107

CABLE, CHOKE

$46.99

$

In Stock, only 2 left!

42

Exmark 103-1166

SPACER-TUBE, PUMP LINK

$6.99

$

In Stock, only 3 left!

43

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

44

Exmark 103-2463

JOINT-BALL, END

$30.99

$

In Stock, only 4 left!

45

Exmark 103-1148

LINK,DRIVE (PLTD)

$22.99

$

In Stock, only 2 left!

46

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

47

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 13

48

Exmark 3220-16

NUT-HEX JAM, LH

$2.49

$

In Stock, only 2 left!

49

Exmark 116-3414

DRIVE LINK ASM

$41.99

$

In Stock, only 4 left!

50

Exmark 3272-5

PIN-COTTER

$1.99

$

Usually ships in 3-6 days

51

Exmark 103-1167

JOINT-BALL END, LH

$35.99

$

In Stock, Qty 8

52

Exmark 116-4081

WLD,LH DRIVE LEVER

$61.99

$

Usually ships in 3-6 days

53

Exmark 116-4082

WLD,RH DRIVE LEVER

$61.99

$

Usually ships in 3-6 days

54

Exmark 126-9366

BUSHING, SLEEVE

$2.99

$

Usually ships in 3-6 days

55

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

56

Exmark 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 6

57

Exmark 126-2921

LATCH, ECS

$13.99

$

In Stock, Qty 8

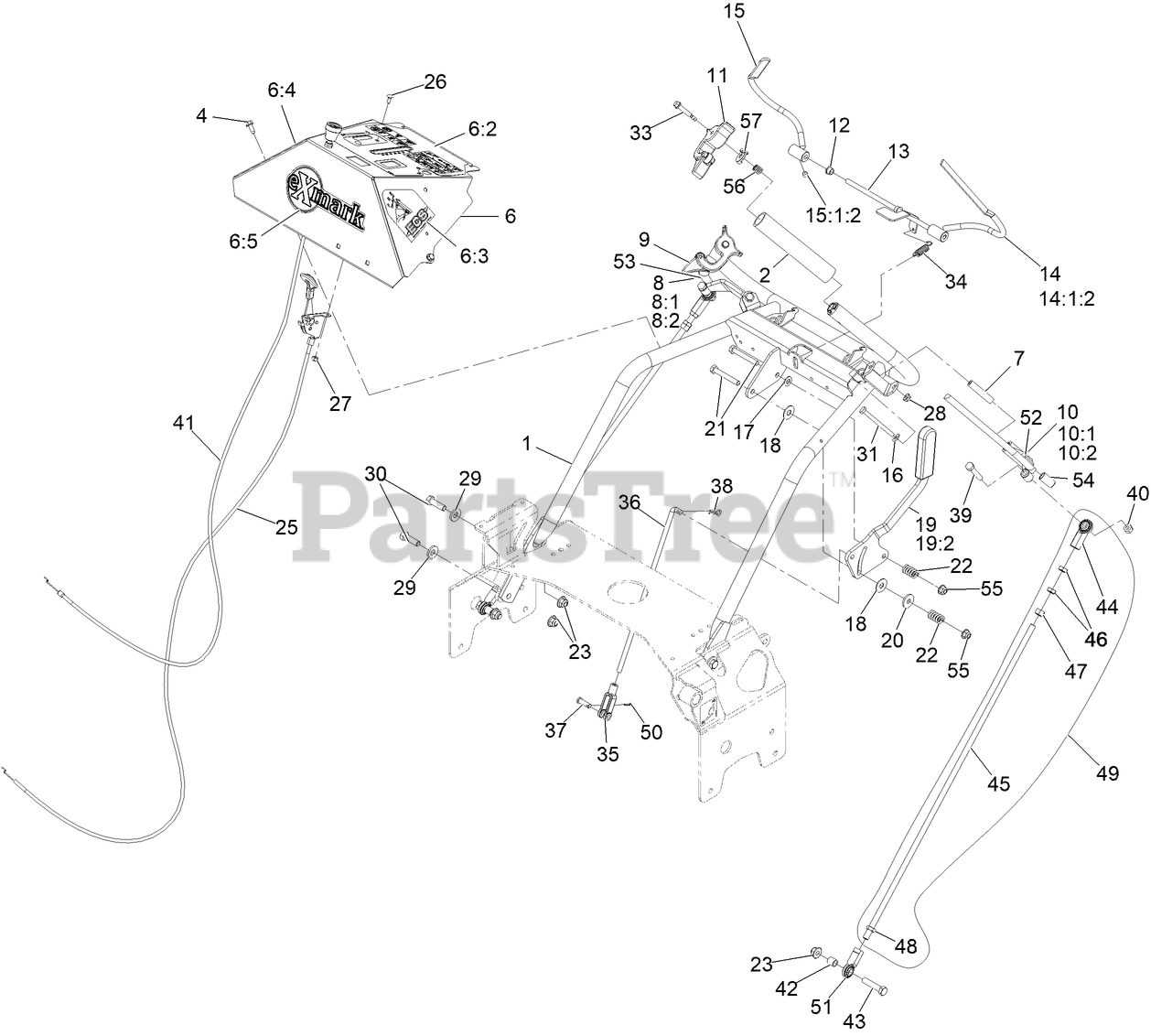

TTS600GKA363E0 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 416150475 - 417930745) (Rev A) (2024) Handle Assembly Parts Diagram

Handle Assembly Parts Diagram
