TTS600GKA483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (2019)

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

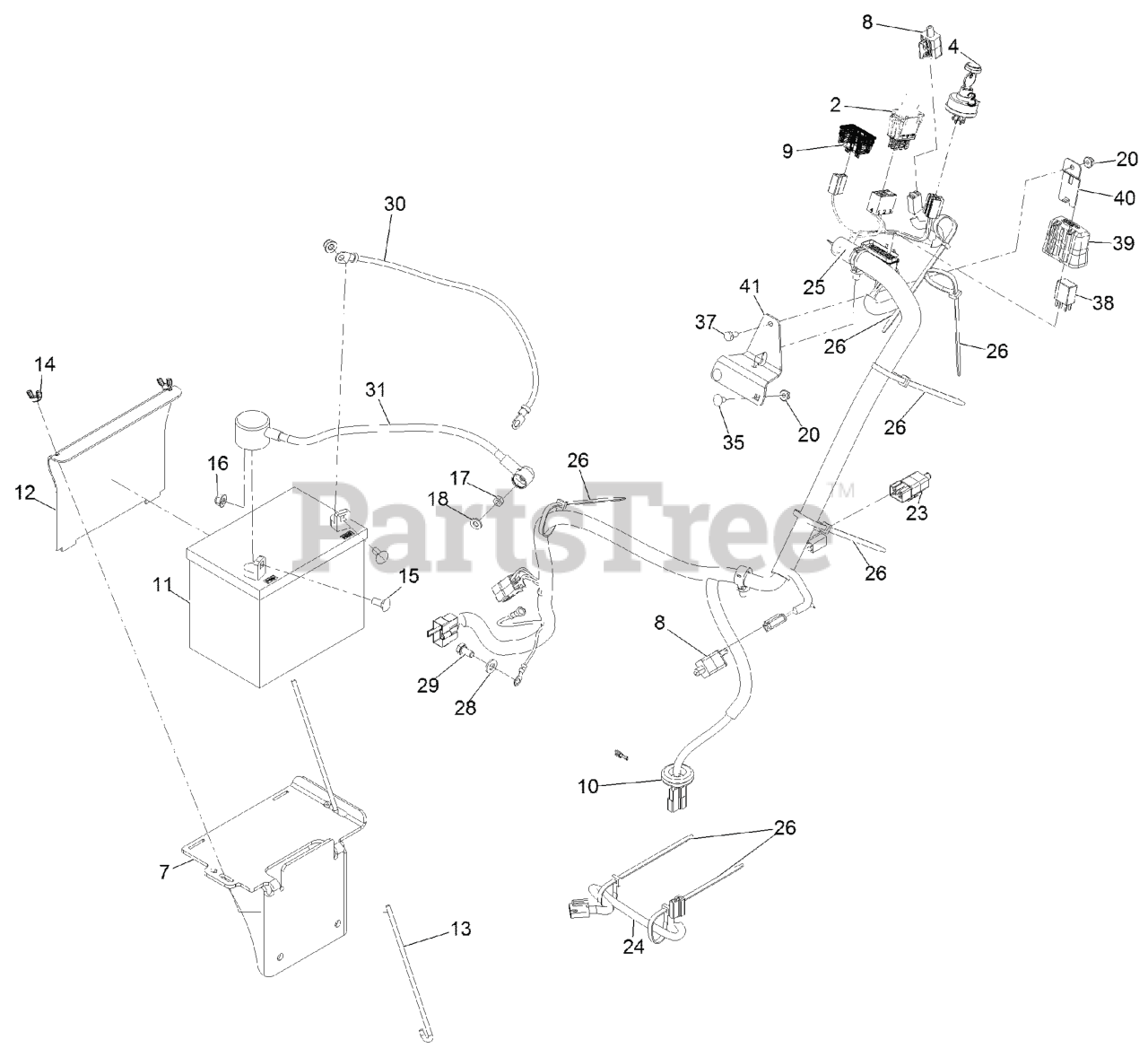

TTS600GKA483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (2019) > Parts Diagrams (13) > Electrical Assembly

  • Title
103-5221

2

SWITCH-PTO

Part# 103-5221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.92

135-2253

3

SWITCH, KEY START

Part# 135-2253

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.24

103-0498

4

NUT-SWITCH, IGNITION

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

126-1470-03

7

WELD, BATTERY MOUNT

Part# 126-1470-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.02

110-6765

8

SWITCH

Part# 110-6765

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.00

126-3931

9

METER-HOUR

Part# 126-3931

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.72

1-543286

10

GROMMET

Part# 1-543286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

11

Battery

Part#

Note: Not serviced separately

Not available

126-0069-03

12

BRACKET, BATTERY HOLD DOW

Part# 126-0069-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.94

1-633651

13

BOLT-HOLDDOWN

Part# 1-633651

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.81

1-543792

14

WINGNUT

Part# 1-543792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.60

3230-1

15

BOLT-CARR

Part# 3230-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

104-8300

16

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

3217-5

17

NUT-HEX

Part# 3217-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

3256-22

18

WASHER-FLAT

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

104-7201

20

NUT-HF

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.10

126-1904

23

SWITCH, 2 POLE

Part# 126-1904

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

126-0624

24

HARNESS-CLUTCH PIGTAIL

Part# 126-0624

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.27

126-6172

25

HARNESS-WIRING

Part# 126-6172

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $170.10

1-303335

26

TIE-PLASTIC

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.98

33094-00

28

WASHER-PLAIN

Part# 33094-00

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.13

33114-016

29

SCREW-HH

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.48

1-413540

30

CABLE-BATTERY, NEGATIVE

Part# 1-413540

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.74

109-7628

31

ASM,POSITIVE BATTERY CABL

Part# 109-7628

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.32

3229-10

35

SCREW-CARR

Part# 3229-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

321-2

37

SCREW-HH

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.30

126-6157

38

RELAY-MICRO 280, SPDT

Part# 126-6157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.00

32180-176

39

COVER-BLOCK, FUSE

Part# 32180-176

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.82

32180-177

40

CLIP-MOUNTING

Part# 32180-177

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.74

126-6603-03

41

BRACKET-MOUNTING, FUSEBLO

Part# 126-6603-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.34
