TTS600GKA523E0 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

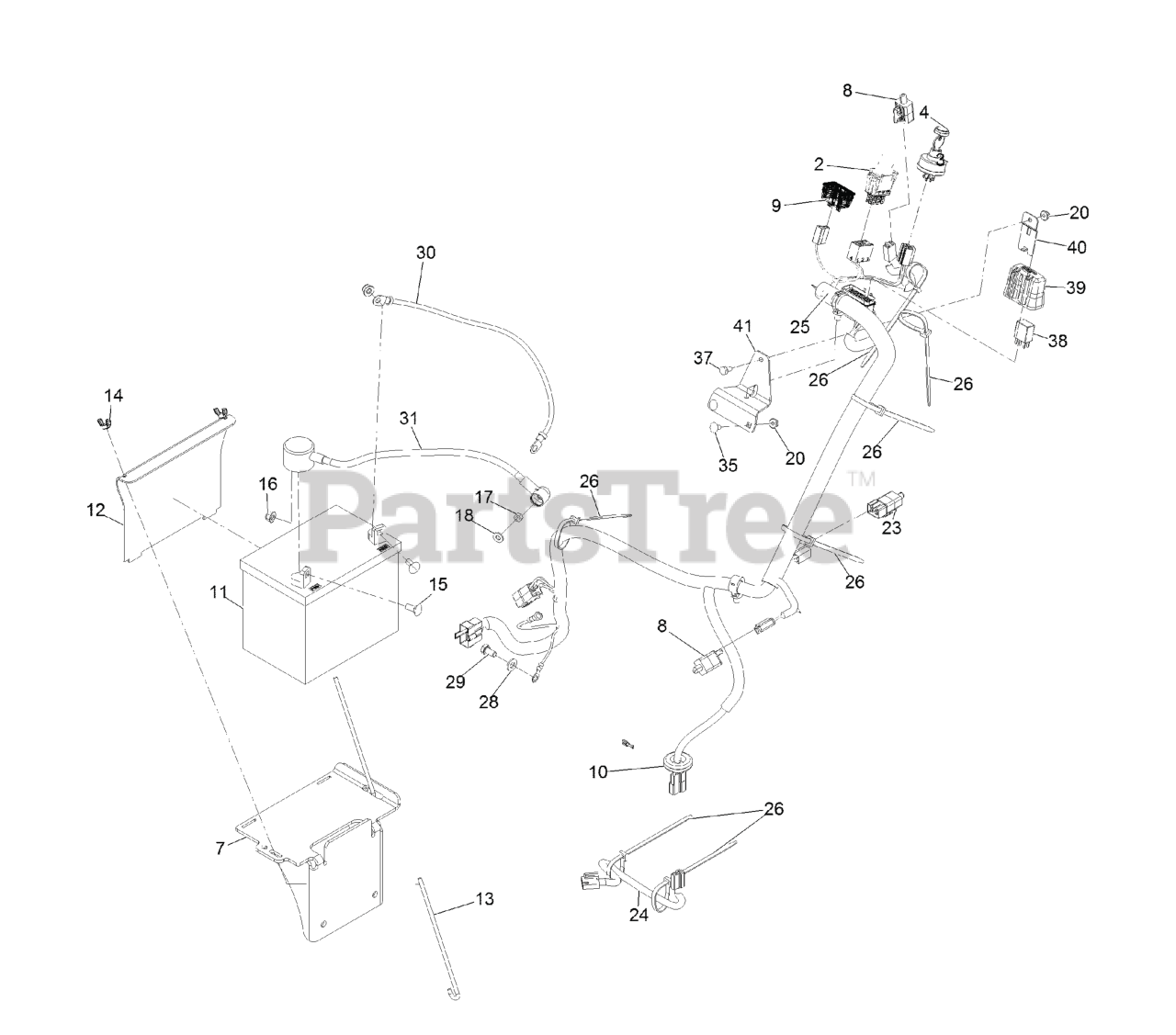

Electrical Assembly Parts Diagram

  • Title

2

Exmark 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

3

Exmark 135-2253

SWITCH, KEY START

$30.99

$

In Stock, only 2 left!

0

4

Exmark 103-0498

NUT-SWITCH, IGNITION

$2.99

$

In Stock, only 1 left!

0

7

Exmark 126-1470-03

WELD, BATTERY MOUNT

$85.99

$

Usually ships in 3-6 days

0

8

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

9

Exmark 126-3931

METER-HOUR

$64.99

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

11

Battery

Note: Not serviced separately

$

$

Not available

12

Exmark 126-0069-03

BRACKET, BATTERY HOLD DOW

$34.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

14

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 20+

0

15

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

18

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 126-1904

SWITCH, 2 POLE

$10.99

$

In Stock, only 2 left!

0

24

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$13.99

$

In Stock, only 3 left!

0

25

Exmark 126-6172

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$231.99

$

Usually ships in 3-6 days

0

26

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

28

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

29

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0

30

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

31

Exmark 109-7628

ASM,POSITIVE BATTERY CABL

$26.99

$

In Stock, only 1 left!

0

35

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

37

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

38

Exmark 126-6157

RELAY-MICRO 280, SPDT

$28.99

$

Usually ships in 3-6 days

0

39

Exmark 32180-176

COVER-BLOCK, FUSE

$7.49

$

Usually ships in 3-6 days

0

40

Exmark 32180-177

CLIP-MOUNTING

$5.49

$

In Stock, only 1 left!

0

41

Exmark 126-6603-03

BRACKET-MOUNTING, FUSEBLO

$16.99

$

Usually ships in 3-6 days

0
