TTS600GKA523E0 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 417930746 & Above) (Rev A) (2025) Deck Assembly-Type B Parts Diagram

52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

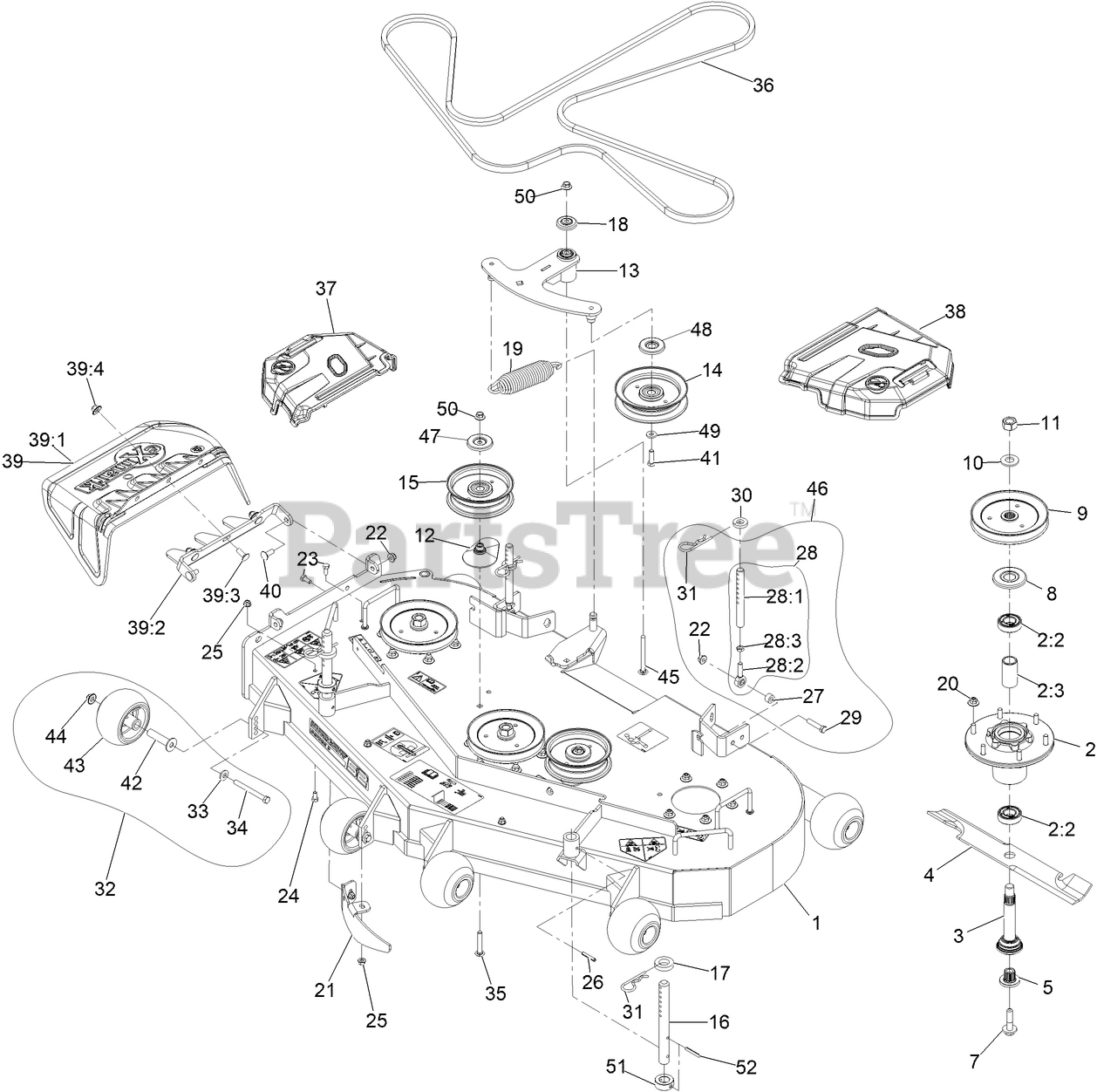

Deck Assembly-Type B Parts Diagram

  • Title

1

Exmark 126-0766

ASM, DECK W/ DECALS, 52

$2892.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$172.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 8

0

3

Exmark 116-3342

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$96.99

$

In Stock, only 2 left!

0

4

Exmark 103-6382

USE 103-6382-S
(Superseded to 103-6382-S)

Note: Optional Equipment

$39.99

$

In Stock, Qty 8

0

4

Exmark 103-6387

USE 103-6387-S
(Superseded to 103-6387-S)

Note: Optional Equipment

$39.99

$

In Stock, only 4 left!

0

4

Exmark 103-6392

USE 103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

4

Exmark 103-6402

USE 103-6402-S
(Superseded to 103-6402-S)

$34.99

$

In Stock, Qty 20+

0

4

Exmark 116-5175

USE 116-5175-S
(Superseded to 116-5175-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

0

5

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

7

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.99

$

In Stock, Qty 20+

0

8

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

9

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$112.99

$

In Stock, Qty 11

0

10

Exmark 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

11

Exmark 116-7306

NUT-HEX

Note: Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$3.49

$

In Stock, Qty 20+

0

12

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

13

Exmark 126-2314

ASM, DECK IDLER

$218.99

$

Usually ships in 3-6 days

0

14

Exmark 146-4609

IDLER-PULLEY, FLAT

$38.99

$

Usually ships in 3-6 days

0

15

Exmark 146-4605

IDLER-PULLEY, FLAT 5.00X1.31

$44.99

$

In Stock, only 4 left!

0

16

Exmark 135-7043

ROD, DECK SUPPORT TTS

$46.99

$

Usually ships in 3-6 days

0

17

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

0

18

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

19

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 18

0

20

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 126-2783-01

BAFFLE, DOGLEG

$55.99

$

Usually ships in 3-6 days

0

22

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-806332

USE 32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

27

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 3 left!

0

28

Exmark 1-414521

USE 1-411532
(Superseded to 1-411532)

$173.99

$

In Stock, only 3 left!

0

28:1

Exmark 1-413525

LINK,SUPPORT

$54.99

$

In Stock, Qty 5

0

28:2

Exmark 1-613204

BALLJOINT

$36.99

$

In Stock, Qty 20+

0

28:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

37

Exmark 142-7103

SHIELD, RT

$23.99

$

In Stock, only 1 left!

0

29

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Exmark 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-806009

PIN,HAIR COTTER

$3.49

$

In Stock, Qty 20+

0

32

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$56.99

$

In Stock, Qty 20+

0

33

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

34

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

35

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 126-0784

BELT, DECK
(Superseded to 126-0784-SL)

$160.99

$

Usually ships in 3-6 days

0

37

Exmark 142-7103

SHIELD, RT

$23.99

$

In Stock, only 1 left!

0

38

Exmark 142-7102

SHIELD, LT

$23.99

$

In Stock, only 3 left!

0

39

Exmark 126-0959

ASM, DISCHARGE CHUTE

$125.99

$

In Stock, only 1 left!

0

39:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

39:2

Exmark 126-0958-01

BRACKET, DISCHARGE CHUTE

$53.99

$

Usually ships in 3-6 days

0

39:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

39:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

41

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

42

Exmark 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

0

43

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

44

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

45

Exmark 3231-24

SCREW-CARR

$15.99

$

Usually ships in 3-6 days

0

46

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

$173.99

$

In Stock, only 3 left!

0

47

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

48

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 8

0

49

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

50

Exmark 32128-19

NUT-HF

$1.99

$

In Stock, Qty 20+

0

51

Exmark 135-4828

COLLAR, DECK HEIGHT PIN

$21.99

$

In Stock, only 2 left!

0

52

Exmark 32121-32

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0
