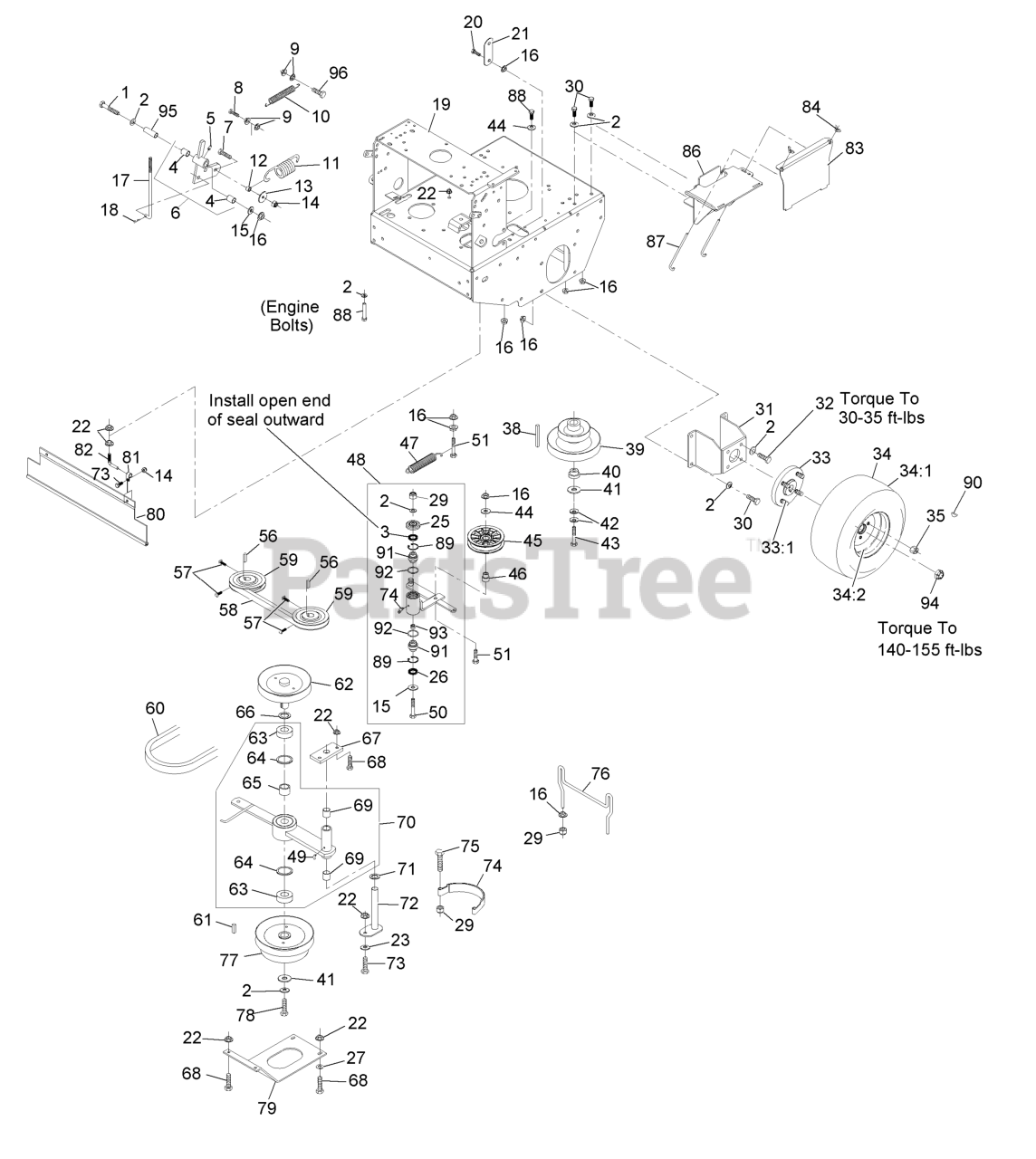

TTS600PKAE483 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 313000000 - 313999999) (2013) Engine Deck Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 7

0

4

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

5

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

6

Exmark 1-414143

ASM,PIVOT W/BUSHINGS

$140.99

$

Usually ships in 3-6 days

0

7

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

8

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

9

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-523498

SPRING,EXTENSION

$12.99

$

In Stock, only 2 left!

0

11

Exmark 103-7398

SPRING,EXTENSION

$22.99

$

In Stock, only 3 left!

0

12

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.99

$

In Stock, only 2 left!

0

13

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-413282

LINKAGE,LOWER

$22.99

$

In Stock, Qty 12

0

18

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

19

Exmark 126-0080

Asm, Deck (126-0079-01) W/Decals

$

$

Currently unavailable

20

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Exmark 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

22

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

25

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 8

0

26

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

27

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-412082-01

WLD,MOTOR MOUNT 48&52

$149.99

$

Usually ships in 3-6 days

0

32

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Exmark 112-9049

WHEEL HUB ASM

$199.99

$

In Stock, only 2 left!

0

33:1

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

34

Exmark 1-613263

WHEEL AND TIRE ASM

$198.99

$

Usually ships in 3-6 days

0

34:1

Exmark 1-613264

TIRE-TURFMASTER

$161.99

$

Usually ships in 3-6 days

0

34:2

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

35

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, only 4 left!

0

39

Exmark 103-6309

SHEAVE, DRIVE

Note: Apply anti-seize compound in bore.

$266.99

$

In Stock, only 4 left!

0

40

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$32.99

$

In Stock, only 2 left!

0

41

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

42

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

43

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.99

$

In Stock, Qty 20+

0

44

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Exmark 109-4077

PULLEY-IDLER, FLAT

$22.99

$

In Stock, Qty 20+

0

46

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

47

Exmark 47103-8599

Spring, Extension

$

$

Currently unavailable

48

Exmark 48109-1296

Kit, Idler Arm (109-1208-03) W/Brgs

$

$

Currently unavailable

49

Exmark 491481

Zerk-45deg 1/4-28

$

$

Currently unavailable

50

Exmark 5098-5961

Screw-Hh 3/8-16 X 4 Gr8

$

$

Currently unavailable

51

Exmark 51323-9

Screw-Hh 3/8-16 X 1 3/4

$

$

Currently unavailable

56

Exmark 561-807272

Key-5mm X 5mm X 25mm

$

$

Currently unavailable

57

Exmark 57120-6474

Screw-Set, Sqh 5/16-18 X 3/4

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$

$

Currently unavailable

58

Exmark 58109-1057

Belt, Pump Drive

$

$

Currently unavailable

59

Exmark 591-413010

Sheave Asm

Note: Apply anti-seize compound in bore.

$

$

Currently unavailable

60

Exmark 60103-6317

Belt, Blade Clutch

$

$

Currently unavailable

61

Exmark 611-807259

Key-Machine 1/4 X 1/4 X 1

$

$

Currently unavailable

62

Exmark 62103-6308

Sheave W/Shaft

Note: Apply anti-seize compound in bore.

$

$

Currently unavailable

63

Exmark 631-413111

Bearing, Clutch Shaft

Note: Apply anti-seize compound in bore.

$

$

Currently unavailable

64

Exmark 6432120-8

Ring-Retaining

$

$

Currently unavailable

65

Exmark 651-413012

Spacer, Bearing Clutch

$

$

Currently unavailable

66

Exmark 661-523157

Washer

$

$

Currently unavailable

67

Exmark 671-413049-01

Plate, Clutch Pivot

$

$

Currently unavailable

68

Exmark 68322-5

Screw-Hh 5/16-18 X 1

$

$

Not available

69

Exmark 691-413207

Pivot, Bearing

$

$

Currently unavailable

70

Exmark 701-414418

Clutch Arm W/Bearings

$

$

Currently unavailable

71

Exmark 711-413235

Washer, Spacer

$

$

Currently unavailable

72

Exmark 721-412138-03

Pivot Pin Weldment

$

$

Currently unavailable

73

Exmark 73322-3

Screw-Hh 5/16-18 X 3/4

$

$

Currently unavailable

74

Exmark 741-413062

Band, Brake Clutch

$

$

Currently unavailable

75

Exmark 75323-8

Screw-Hh 3/8-16 X 1 1/2

$

$

Currently unavailable

76

Exmark 76103-6310

Wld, Belt Guide

$

$

Currently unavailable

77

Exmark 771-412028

Sheave W/Drum (48")

Note: Apply anti-seize compound in bore.

$

$

Currently unavailable

78

Exmark 781-800521

Screw-Hh 3/8-24 X 1

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$

$

Currently unavailable

79

Exmark 791-413009-01

Plate, Guard

$

$

Currently unavailable

80

Exmark 80103-2056

Shield-Drag

$

$

Currently unavailable

81

Exmark 811-413510

Clip-Loom

$

$

Currently unavailable

82

Exmark 821-413511

Hanger, Drag Shield

$

$

Currently unavailable

83

Exmark 831-543891

Battery Cover

$

$

Currently unavailable

83

Exmark 83126-0069-03

Battery, Cover

$

$

Currently unavailable

84

Exmark 841-543792

Wingnut-Nyloc 1/4-20

$

$

Currently unavailable

86

Exmark 86126-0068-03

Stand

$

$

Currently unavailable

87

Exmark 871-633651

Bolt-Holddown

$

$

Currently unavailable

88

Exmark 88323-7

Screw-Hh 3/8-16 X 1 1/4

$

$

Currently unavailable

89

Exmark 8932120-10

Ring-Retaining

$

$

Currently unavailable

90

Exmark 901-807019

Key-Woodruff 1 X 1/4

$

$

Currently unavailable

91

Exmark 91103-3504

Bearing-Spherical

$

$

Currently unavailable

92

Exmark 92106-7159

O-Ring

$

$

Currently unavailable

93

Exmark 93103-5677

Spacer

$

$

Currently unavailable

94

Exmark 94116-2839

Nut-Lock

$

$

Currently unavailable

95

Exmark 951-603044

Bushing

$

$

Currently unavailable

96

Exmark 96321-8

Screw-Hh 1/4-20 X 1 1/4

$

$

Currently unavailable
