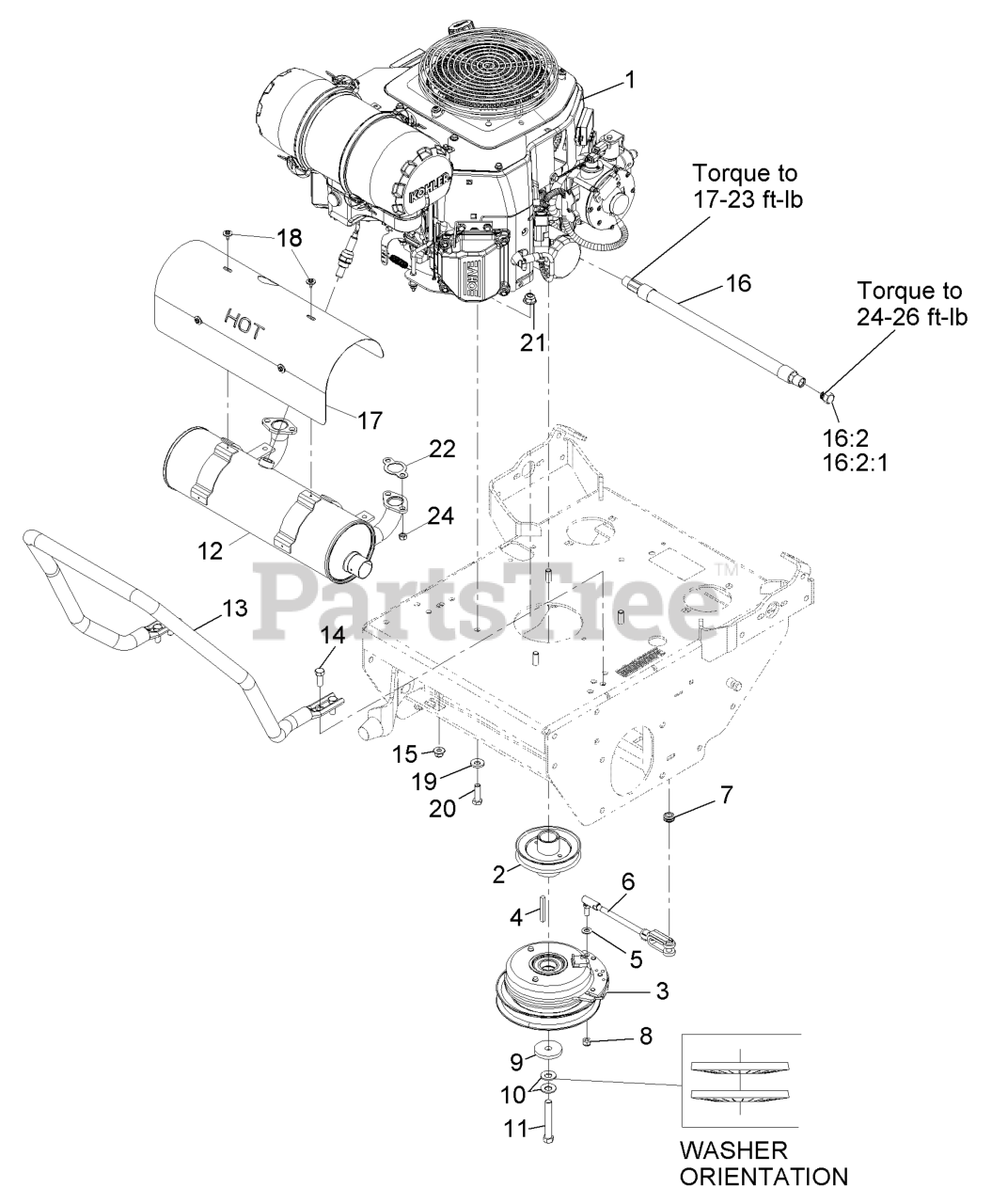

TTS680PKC48300 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kohler (SN: 315000000 - 315999999) (2015) Engine Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kohler

Engine Assembly Parts Diagram

  • Title

1

Engine, Kohler Pcv680

Note: Not serviced separately; Obtain parts from www.kohlerplus.com

$

$

Not available

2

Exmark 116-7328

SHEAVE, W/ HUB

$100.99

$

In Stock, only 1 left!

0

3

Exmark 126-2616

CLUTCH, 125 FT/LBS, 1.13

$534.99

$

Usually ships in 3-6 days

0

4

Exmark 5-1336

KEY-SQUARE

Note: Apply anti-seize compound to engine crankshaft, pulley hub I.D., clutch bore I.D. and square key.

$11.99

$

In Stock, Qty 5

0

5

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Exmark 126-0620

ASM, CLUTCH ANCHOR

$72.99

$

In Stock, Qty 6

0

7

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

8

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, only 4 left!

0

9

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

10

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

11

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, Qty 12

0

12

Exmark 116-8653

MUFFLER-TTX, EFI

$336.99

$

Usually ships in 3-6 days

0

13

Exmark 116-8575-03

GUARD,AIR CLEANER
(Superseded to 135-4730-03)

$138.99

$

Usually ships in 3-6 days

0

14

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-5316

OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$58.99

$

In Stock, Qty 15

0

16:2

Exmark 353-508

PLUG-HH

$8.99

$

In Stock, only 4 left!

0

16:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Exmark 116-8654

SHIELD-MUFFLER,TTX EFI

$67.99

$

Usually ships in 3-6 days

0

18

Exmark 116-1103

SCREW-HH, THREAD FORMING

$2.99

$

In Stock, Qty 5

0

19

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

20

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 110-6697

GASKET-EXHAUST

$

$

Not available

24

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0
