TTS680PKCE483 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kohler (SN: 314000000 - 314999999) (2014) Fuel Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kohler

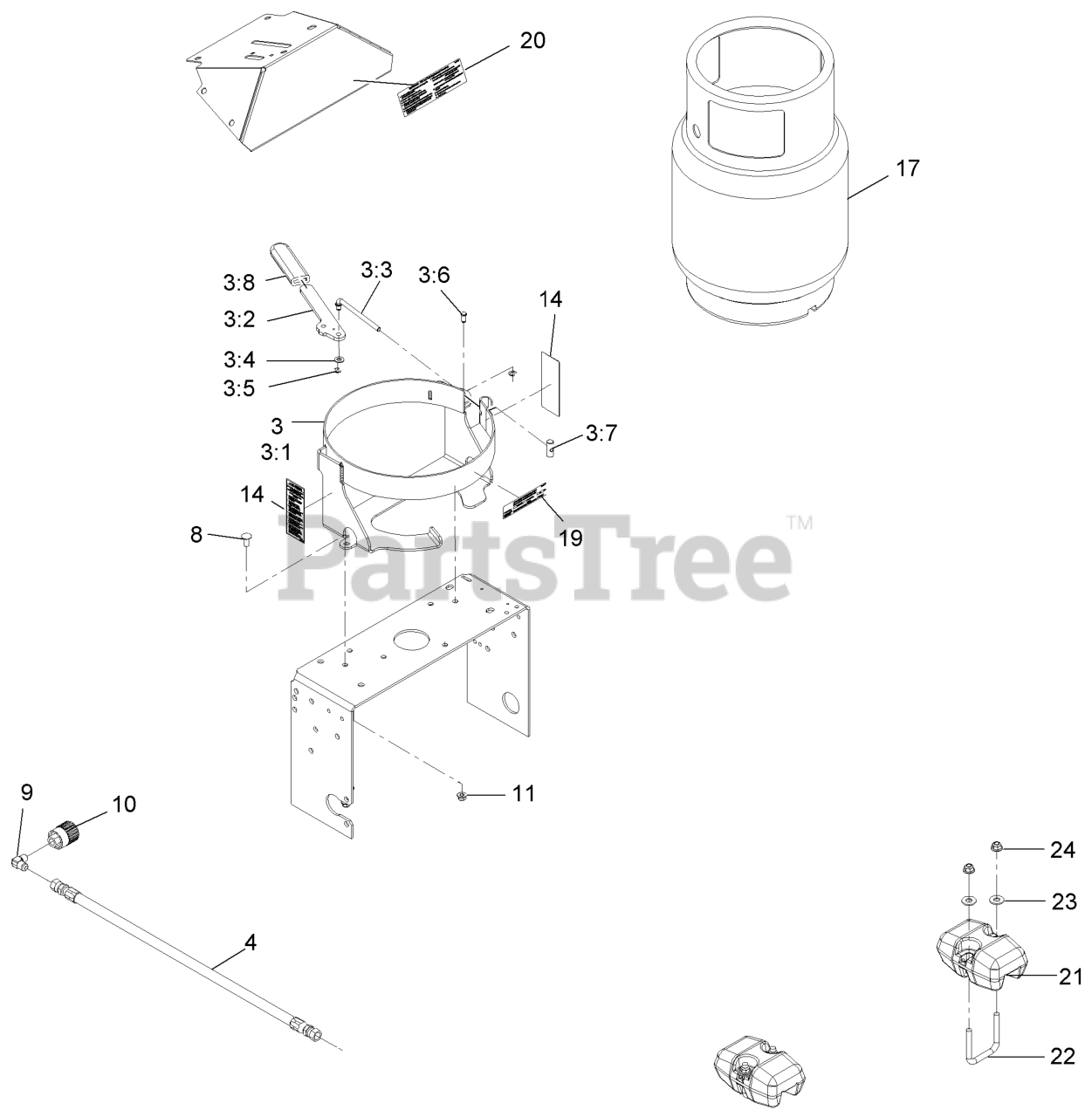

Fuel Assembly Parts Diagram

  • Title

3

Exmark 126-0365

ASM, LP TANK MOUNT

$

$

Not available

3:1

Exmark 126-0320-03

WELD, TANK MOUNT

$

$

Not available

3:2

Exmark 126-0321

ARM, LEVER

$70.99

$

Usually ships in 3-6 days

0

3:3

Exmark 126-0322

LINKAGE, LATCH

$

$

Not available

3:4

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3:5

Exmark 116-0332

E-RING,5/16 HEAVY DUTY

$

$

Not available

3:6

Exmark 109-6887

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

3:7

Exmark 126-0323

TRUNNION, LATCH

$24.99

$

Usually ships in 3-6 days

0

3:8

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 20+

0

4

Exmark 126-0074

ASM, HOSE-LPG

$

$

Not available

8

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Exmark 116-1116

ELBOW 90DEG,1/4 NPT X3/8

$

$

Not available

10

Exmark 116-1073

CONNECTOR-LPG TANK, LH TH

$157.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-9875

DECAL-LPG WARNING

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 109-9675

126-4505
(Superseded to 126-4505)

$

$

Not available

19

Exmark 109-9870

DECAL,LPG TANK SPEC VERTI

$

$

Not available

20

Exmark 109-9906

DECAL-TANK REPLACEMENT

$15.99

$

In Stock, only 2 left!

0

21

Exmark 103-2455-01

WEIGHT-SUPPORT, CASTER

$117.99

$

Usually ships in 3-6 days

0

22

Exmark 103-2469

U-BOLT

$11.99

$

Usually ships in 3-6 days

0

23

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

99

Exmark 116-1457

WASHER,RUBBER LPG CONNECT

Note: Not illustrated

$

$

Not available

99

Exmark 116-1456

O-RING, LPG CONNECTOR (SV

Note: Not illustrated

$

$

Not available
