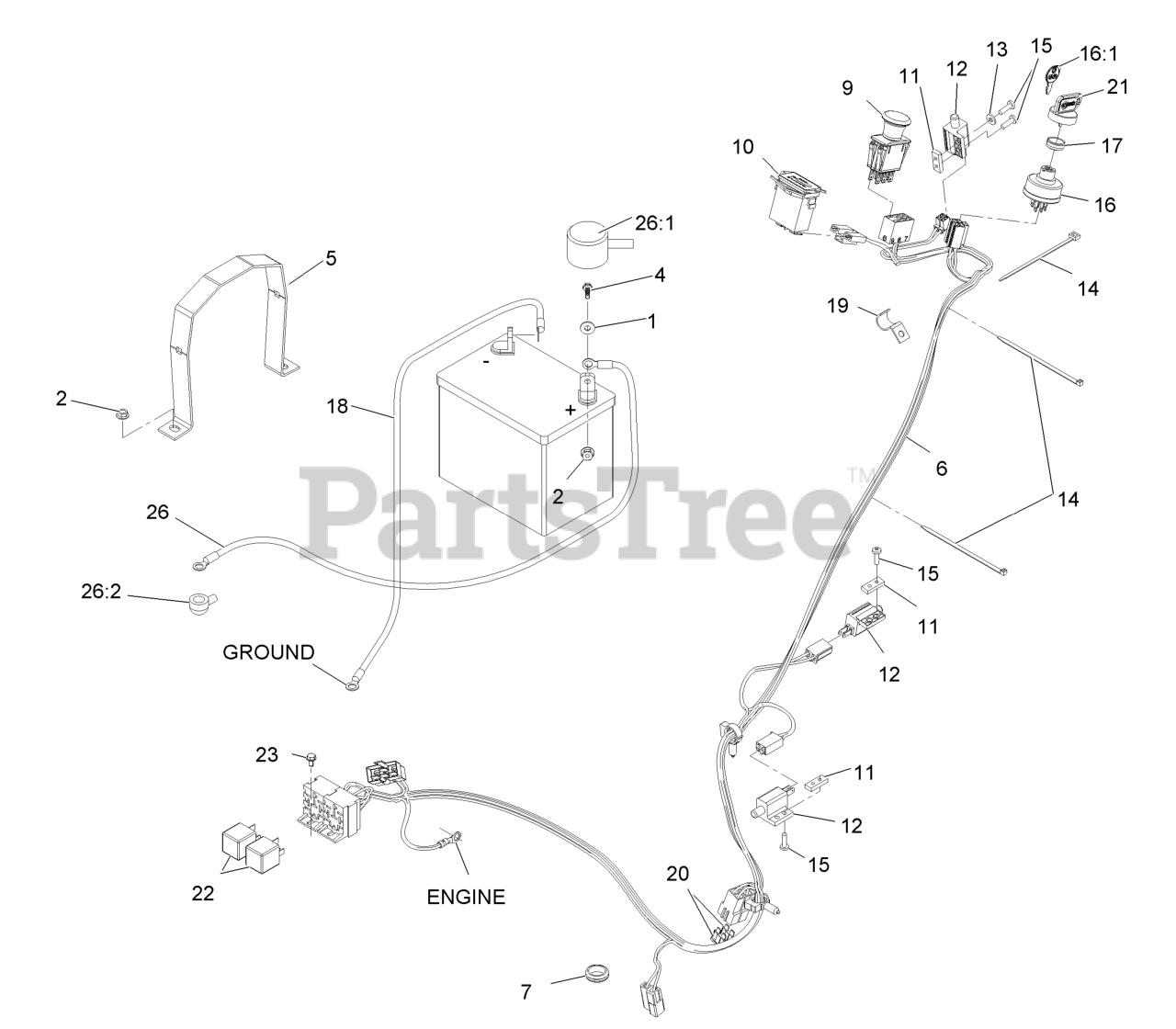

TTX20KCE - Exmark Turf Tracer X-Series Hydro Walk-Behind Mower, 20HP Kohler (SN: 920000 - 999999) (2011) > Parts Diagrams (7) > Electrical Assembly

  • Title
3256-2

1

Washer-1/4 Std

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

32128-33

2

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

321-4

4

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-603814-03

5

Strap, Battery Holddown

Part# 1-603814-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.90

116-2561

6

Harness, Wiring

Part# 116-2561 (Superseded to 116-8374)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $160.45

1-543286

7

Grommet

Part# 1-543286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

103-5221

9

Switch-Pto

Part# 103-5221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.78

1-513374

10

Meter-Engine Hours

Part# 1-513374

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $80.79

1-633181

11

Plate-Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.96

1-513051

12

Switch-N.O.

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

3256-14

13

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-303335

14

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

3290-500

15

Screw-Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

103-0206

16

Switch-Ignition W/Keys

Part# 103-0206 (Superseded to 109-4736)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

1-603511

16:1

Key-Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-0498

17

Nut-Ignition

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

1-543767

18

Wire-Ground

Part# 1-543767

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.28

103-1193

19

Clip-Loom Half

Part# 103-1193

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.23

1-816001

20

Fuse-Blade Type, 20 Amp

Part# 1-816001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.70

103-2106

21

Key-Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

1-643275

22

Relay-12vdc 40 Amp

Part# 1-643275

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.89

104-2065

23

Screw-Hwh #10-24 X 3/8

Part# 104-2065

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

109-7630

26

Positive Battery Cable Asm

Part# 109-7630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.80

109-2407

26:1

Insulator-Battery

Part# 109-2407

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

1-543393

26:2

Insulator-Solenoid

Part# 1-543393

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.14
