TTX20KCE - Exmark Turf Tracer X-Series Hydro Walk-Behind Mower, 20HP Kohler (SN: 920000 - 999999) (2011)

Turf Tracer X-Series Hydro Walk-Behind Mower, 20HP Kohler

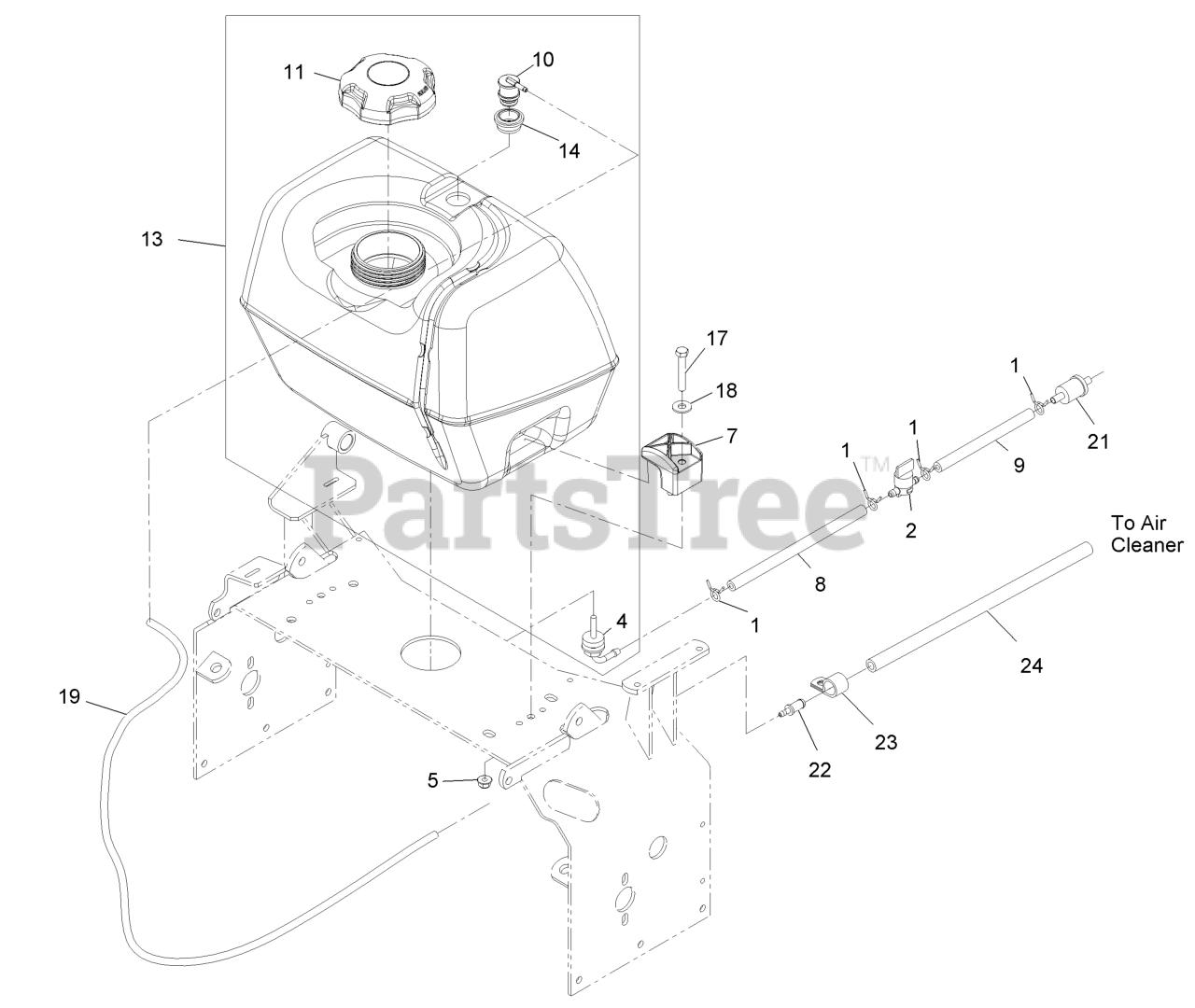

TTX20KCE - Exmark Turf Tracer X-Series Hydro Walk-Behind Mower, 20HP Kohler (SN: 920000 - 999999) (2011) > Parts Diagrams (7) > Fuel Tank Assembly

  • Title
1-303077

1

Clamp-Fuel Line

Part# 1-303077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

1-603770

2

Valve-Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

103-2605

4

Fitting-Fuel Bulkhead W/Strainer

Part# 103-2605

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.86

104-8300

5

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

107-4543

7

Clamp

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.84

109-0293

8

Hose-Fuel Line 8 1/2"

Part# 109-0293

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.85

109-0304

9

Hose-Fuel Line 2 1/2"

Part# 109-0304

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

114-0285

10

Valve-Rollover

Part# 114-0285 (Superseded to 119-3547)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.00

115-4465

11

Cap-Fuel, Ratcheting

Part# 115-4465 (Superseded to 137-4119)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.98

116-3656

13

Asm-Fuel Tank

Part# 116-3656 (Superseded to 135-2855)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $215.16

119-6549

14

Grommet-Valve, Roll-Over

Part# 119-6549 (Superseded to 114-0284)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.89

322-10

17

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

3256-3

18

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

116-4346

19

Hose-Emissions

Part# 116-4346

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.63

Pn 240513-S Filter-Fuel

21

Pn 240513-S Filter-Fuel

Part# Pn 240513-S Filter-Fuel

Not available

98-2952

22

Fitting-Straight

Part# 98-2952

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.75

1-633396

23

Clip-Loom 5/8

Part# 1-633396

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.87

116-4344

24

Hose-Fuel

Part# 116-4344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.47
