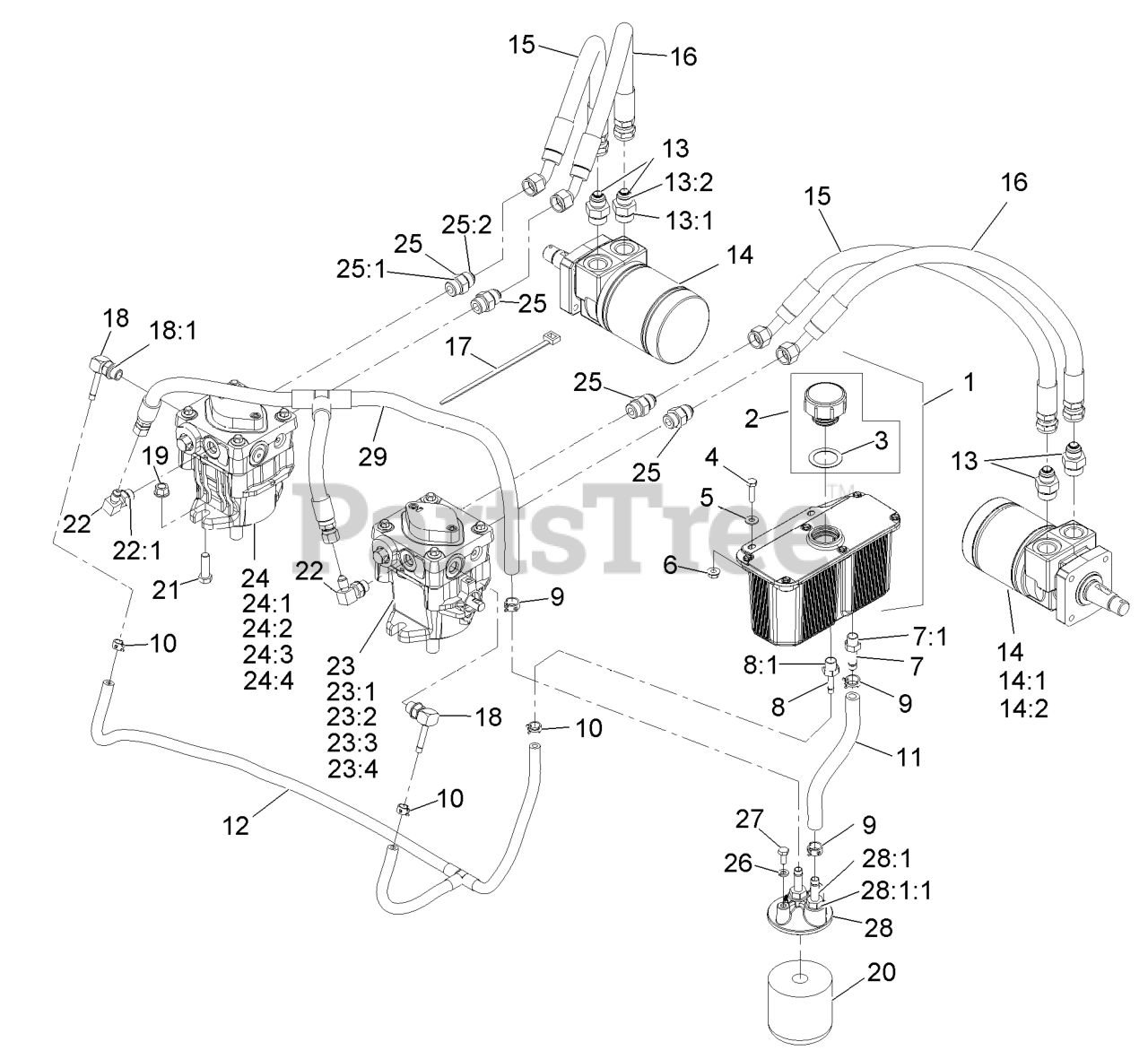

TTX20KCE - Exmark Turf Tracer X-Series Hydro Walk-Behind Mower, 20HP Kohler (SN: 920000 - 999999) (2011) > Parts Diagrams (7) > Hydraulics Assembly

  • Title
103-1947

1

Hyd Reservoir Asm

Part# 103-1947

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $177.75

103-7615

2

Asm, Cap W/Gasket

Part# 103-7615

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.61

103-1949

3

Gasket-Cap

Part# 103-1949

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.53

321-6

4

Screw-Hh 1/4-20 X 1

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.41

3256-22

5

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

32128-33

6

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-1912

7

Adapter-Straight

Part# 103-1912

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.91

1-603921

7:1

O-Ring-SAE #6

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

103-1801

8

Adapter-Straight

Part# 103-1801

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.76

1-603921

8:1

O-Ring-SAE #6

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

103-1988

9

Clamp-Hose 11/16

Part# 103-1988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-1716

10

Clamp-Hose 17/32

Part# 103-1716

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.41

109-1010

11

Hose, Charge

Part# 109-1010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.65

103-4607

12

Asm, Case Drain Hose

Part# 103-4607

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.45

1-603991

13

Adapter-Straight

Part# 1-603991

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.80

1-603919

13:1

O-Ring-SAE #10

Part# 1-603919

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

1-603992

13:2

O-Ring-37 Flare #8

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

1-603718

14

Hyd Motor Asm

Part# 1-603718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $842.65

1-000119

14:1

Seal Kit

Part# 1-000119

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $137.36

1-000138

14:2

Bearing And Seal Kit

Part# 1-000138

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $207.77

103-4609

15

Hose, Hydro

Part# 103-4609 (Superseded to 116-8646)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.27

103-4610

16

Hose, Hydro

Part# 103-4610 (Superseded to 116-8647)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $67.60

1-303335

17

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

103-1799

18

Elbow-90 Deg

Part# 103-1799

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.36

1-603921

18:1

O-Ring-SAE #6

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

32128-43

19

Nut-Whizlock 3/8-16

Part# 32128-43

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.04

109-4180

20

Filter,25 Micron Bi-Directional

Part# 109-4180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

1-523541

20

Element, Oil Filter(Winter)

Part# 1-523541

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

323-7

21

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-1802

22

Fitting-Hyd, 90 Deg

Part# 103-1802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.42

1-603921

22:1

O-Ring-SAE #6

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

116-2495

23

Pump, Hydro Rh

Part# 116-2495

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $912.76

103-2664

23:1

Input Shaft Kit

Part# 103-2664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $529.83

94-6922

23:2

Bearing-Thrust

Part# 94-6922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.70

103-2666

23:3

Cylinder Block Kit

Part# 103-2666

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $347.66

105-6184

23:4

Seal Overhaul Kit

Part# 105-6184

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.70

116-2494

24

Pump, Hydro Lh

Part# 116-2494

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $912.76

103-2664

24:1

Input Shaft Kit

Part# 103-2664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $529.83

94-6922

24:2

Bearing-Thrust

Part# 94-6922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.70

103-2666

24:3

Cylinder Block Kit

Part# 103-2666

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $347.66

105-6184

24:4

Seal Overhaul Kit

Part# 105-6184

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.70

1-603990

25

Adapter-Straight

Part# 1-603990

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.53

1-603920

25:1

O-Ring-SAE #8

Part# 1-603920

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-603992

25:2

O-Ring-37 Flare #8

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

1-805004

26

Washer-Lock 1/4 Heavy

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

321-3

27

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

103-2889

28

Filter Head Asm

Part# 103-2889

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.55

103-1912

28:1

Adapter-Straight

Part# 103-1912

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.91

1-603921

28:1:1

O-Ring-SAE #6

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

103-4608

29

Asm, Charge Hose

Part# 103-4608

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $55.90
