TTX640KCE - Exmark Turf Tracer X-Series Walk-Behind Mower, Kohler CV640 (SN: 312000000 - 312999999) (2012) Fuel Tank Assembly Parts Diagram

Turf Tracer X-Series Walk-Behind Mower, Kohler CV640

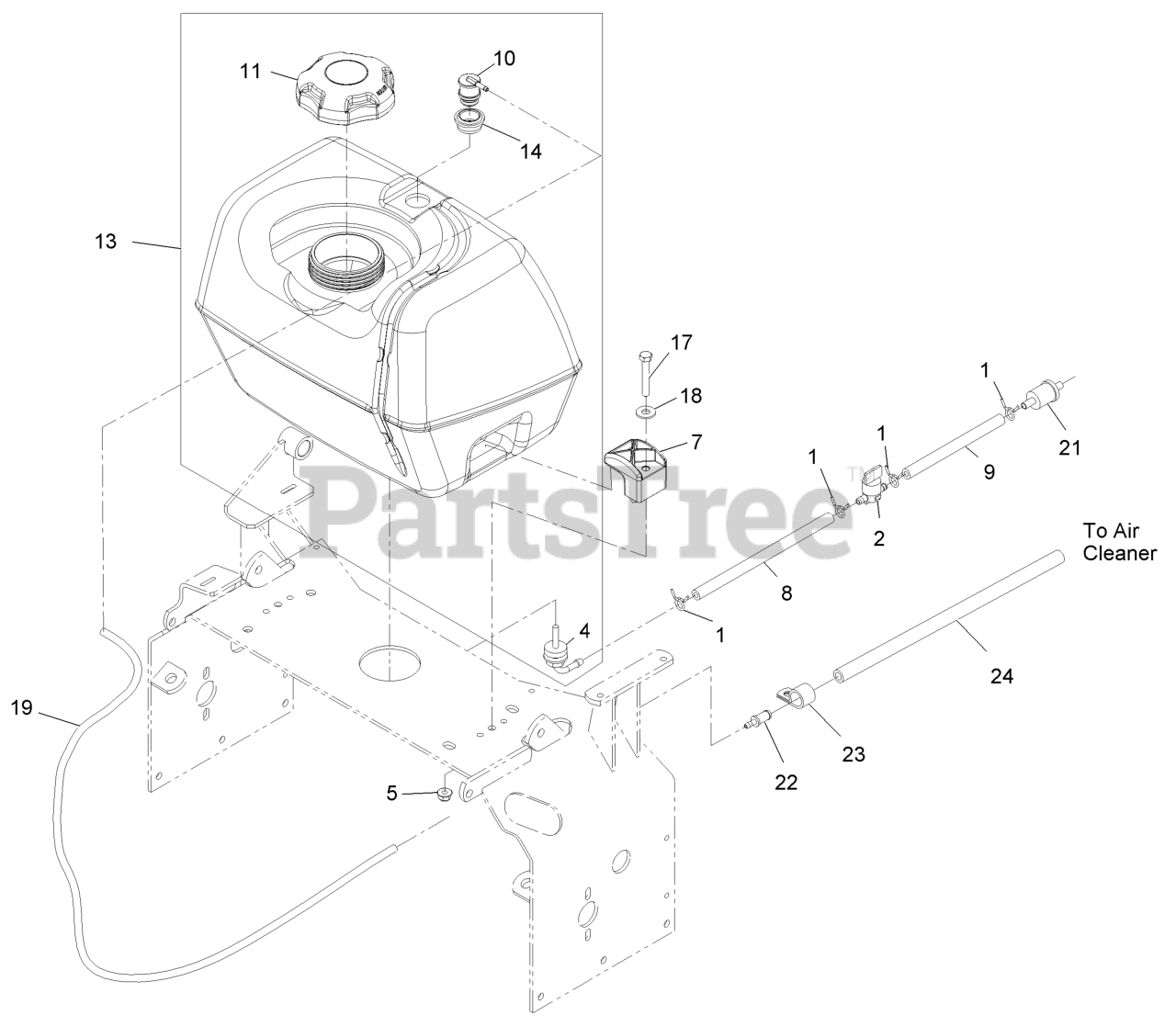

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

4

Exmark 103-2605

FITTING-FUEL, BULKHEAD

$38.99

$

In Stock, only 4 left!

0

5

Exmark 104-8300

NUT-HF, NI

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

7

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0293

HOSE-FUEL

$6.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 5

0

10

Exmark 114-0285

119-3547
(Superseded to 119-3547)

$17.99

$

In Stock, only 4 left!

0

11

Exmark 115-4465

137-4119
(Superseded to 137-4119)

$28.99

$

In Stock, Qty 9

0

13

Exmark 116-3656

126-1525
(Superseded to 140-4343)

$311.99

$

In Stock, only 1 left!

0

14

Exmark 119-6549

114-0284
(Superseded to 114-0284)

$2.99

$

In Stock, Qty 16

0

17

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 116-4346

HOSE-EMISSIONS

$12.99

$

Usually ships in 3-6 days

0

21

Pn 240513-S Filter-Fuel

Note: Obtain parts from www.kohlerplus.com, Not serviced separately

$

$

Not available

22

Exmark 98-2952

FITTING-STRAIGHT

$10.99

$

In Stock, only 1 left!

0

23

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 116-4344

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0
