TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017)

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

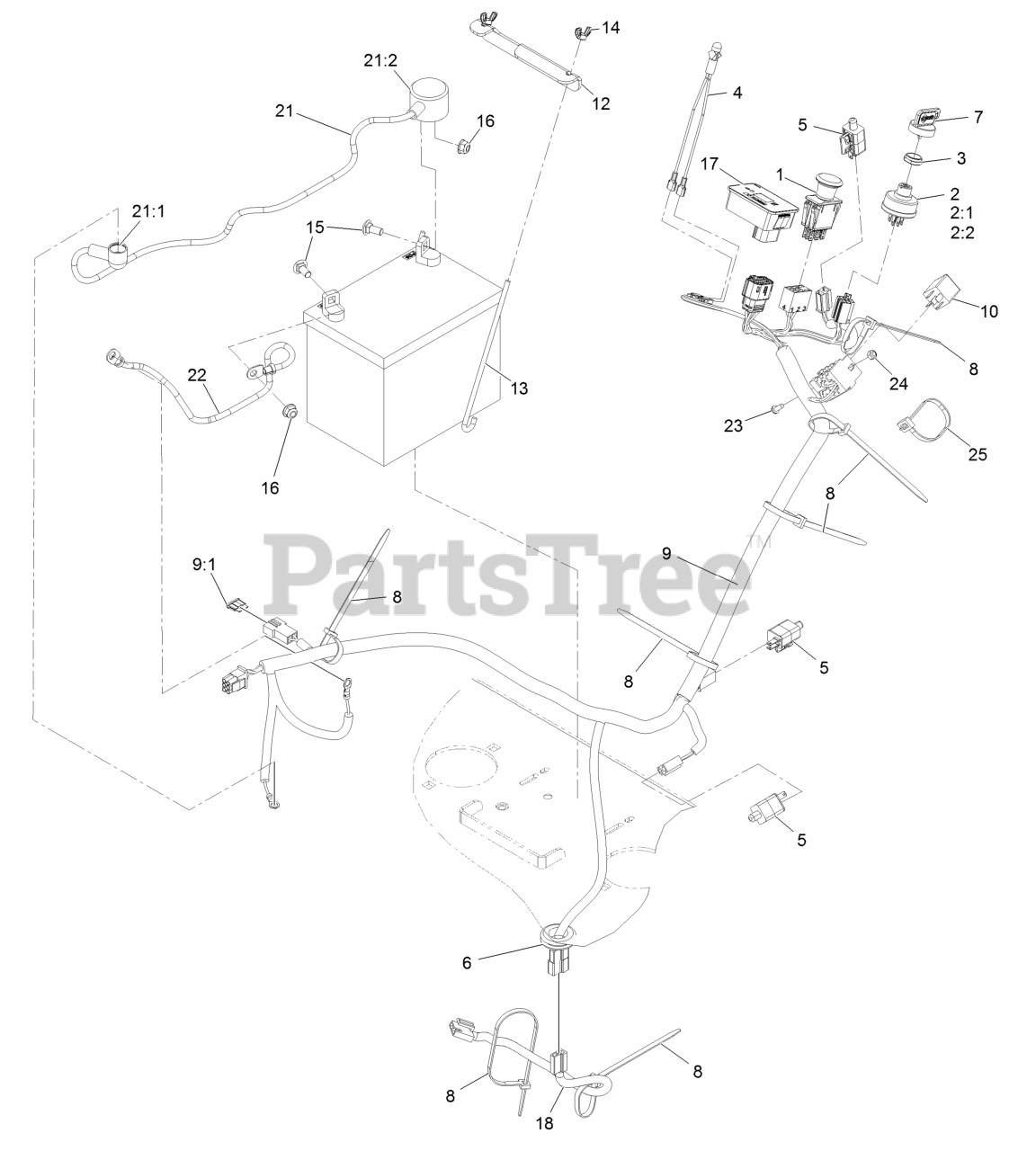

TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Electrical Assembly

  • Title
103-5221

1

Switch-PTO

Part# 103-5221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.57

103-0206

2

Switch-Ignition W/Keys

Part# 103-0206 (Superseded to 109-4736)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.53

3254-5

2:1

Washer-Tooth, Internal

Part# 3254-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

218-461

2:2

Nut-HH

Part# 218-461

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.86

103-0498

3

Nut-Ignition

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-643267

4

Indicator-Red LED

Part# 1-643267

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.65

110-6765

5

Switch

Part# 110-6765

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.05

1-543286

6

Grommet

Part# 1-543286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

103-2106

7

Key-Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

1-303335

8

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

126-3011

9

Harness-Main Ttx Kohler Efi

Part# 126-3011

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $151.87

1-816001

9:1

Fuse-Blade Type, 20 Amp

Part# 1-816001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

1-643275

10

Relay-12Vdc 40 Amp

Part# 1-643275

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.64

126-0008

12

Bracket, Battery Hold Down

Part# 126-0008 (Superseded to 135-2056)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.18

1-633651

13

Bolt-Holddown

Part# 1-633651

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-543792

14

Wingnut-Nyloc 1/4-20

Part# 1-543792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

3230-1

15

Bolt-Carriage 5/16-18 X 3/4

Part# 3230-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

104-8300

16

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-8893

17

Module-Hour Meter

Part# 116-8893

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.82

126-0624

18

Harness-Clutch Pigtail

Part# 126-0624

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.40

109-7621

21

Positive Battery Cable ASM

Part# 109-7621

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.24

1-543393

21:1

Insulator-Solenoid

Part# 1-543393

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

109-2407

21:2

Insulator-Battery

Part# 109-2407

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

1-413540

22

Cable-Battery, Negative

Part# 1-413540

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.37

1-803071

23

Screw-Machine #10-24 X 1/2

Part# 1-803071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3296-2

24

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

1-643115

25

Tie-Cable 11.4

Part# 1-643115

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34
