TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017)

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

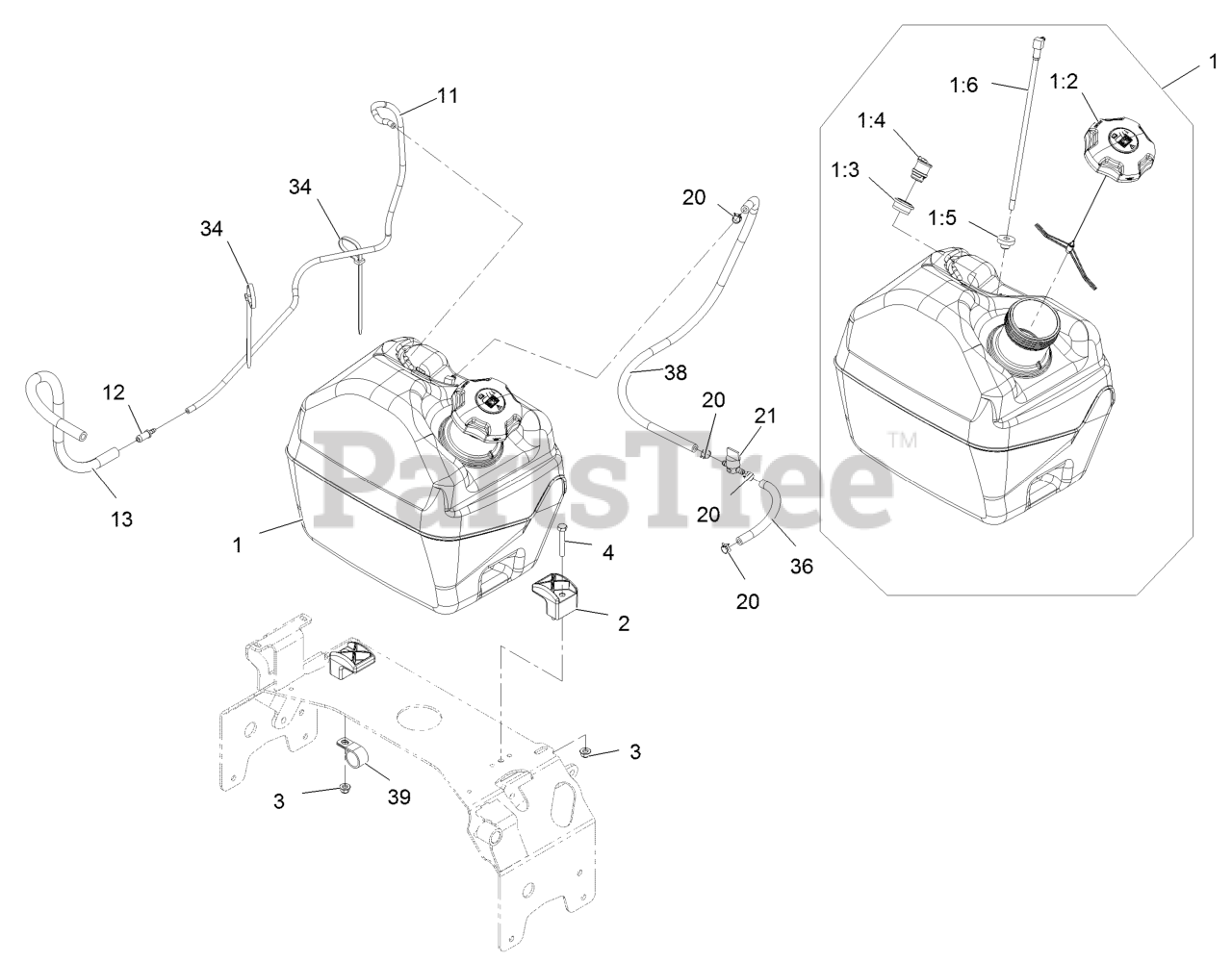

TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Fuel Assembly

  • Title
126-9062

1

ASM, Fuel Tank 5 Gal

Part# 126-9062 (Superseded to 135-2855)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $208.39

135-0330

1:2

Cap-Fuel, Ratcheting (3.5")

Part# 135-0330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.37

114-0284

1:3

Grommet

Part# 114-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

119-3547

1:4

Valve-Vent, Fuel

Part# 119-3547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.94

46-6560

1:5

Bushing

Part# 46-6560

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.37

109-9364

1:6

Fitting-Fuel (W/Line And Screen)

Part# 109-9364 (Superseded to 116-2459)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.24

107-4543

2

Clamp

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.79

104-8300

3

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

322-10

4

Screw-HH 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

126-1679

11

Hose, Emissions

Part# 126-1679

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.02

98-2952

12

Fitting-Straight

Part# 98-2952

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.08

119-8562

13

Hose-Fuel

Part# 119-8562

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.66

2412-98

20

Clamp-Hose

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.95

1-603770

21

Valve-Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303335

34

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

110-1876

36

Hose-Fuel

Part# 110-1876

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.02

109-0275

38

Hose-Fuel Line 32"

Part# 109-0275

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.27

1-643312

39

Clip-Loom

Part# 1-643312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.69
