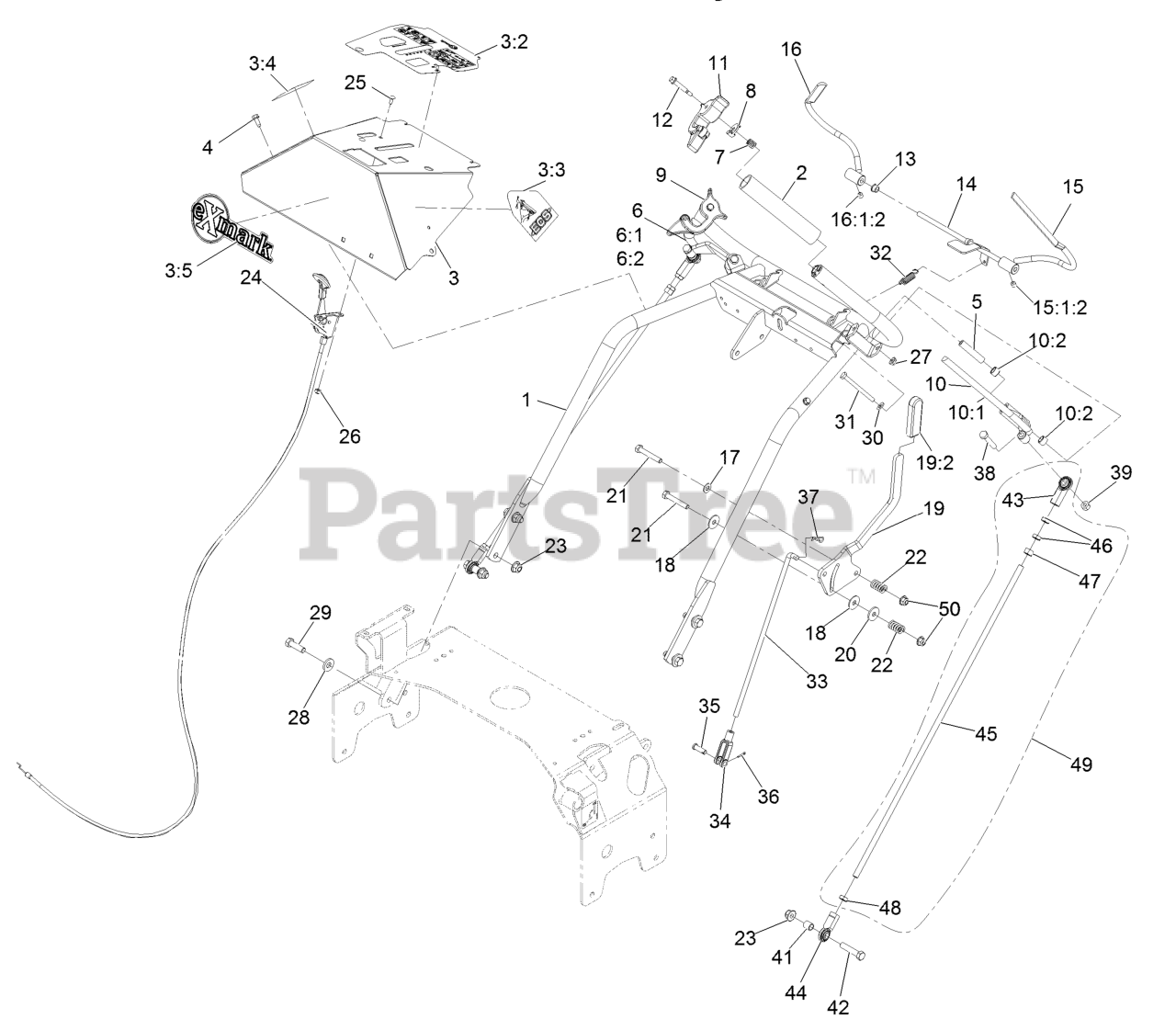

TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Handle Assembly

  • Title
126-2642-03

1

Weld, Handle

Part# 126-2642-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $283.37

103-0815

2

Grip-BAR, Handle

Part# 103-0815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.89

126-2820

3

ASM, Console W/ Decals

Part# 126-2820

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $114.19

126-3315

3:2

Decal-Console Ttx Efi

Part# 126-3315

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.47

103-2242

3:3

Decal, Ecs Instruction LH

Part# 103-2242

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

103-2243

3:4

Decal, Ecs Instruction RH

Part# 103-2243

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

126-6877

3:5

Decal, Exmark Logo

Part# 126-6877

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

32144-10

4

Screw-HWH 1/4-20 X .62

Part# 32144-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.63

103-0027

5

Bushing-Lever, Drive

Part# 103-0027

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

103-2513

6

Asm, Drive Lever RH

Part# 103-2513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $84.76

116-4082

6:1

Wld,RH Drive Lever

Part# 116-4082

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.13

126-9366

6:2

Bushing, Sleeve

Part# 126-9366

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

1-633349

7

Spring-Compression

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

126-2921

8

Latch, Ecs

Part# 126-2921

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

103-1371

9

Thumb Latch Asm RH

Part# 103-1371

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.00

103-2514

10

Asm, Drive Lever LH

Part# 103-2514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $84.76

116-4081

10:1

Wld,LH Drive Lever

Part# 116-4081

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.13

126-9366

10:2

Bushing, Sleeve

Part# 126-9366

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

103-1372

11

Thumb Latch Asm LH

Part# 103-1372

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.00

126-2931

12

Screw-Shoulder

Part# 126-2931

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-303365

13

Bushing-Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-0769-03

14

Rod Weldment, OPC

Part# 103-0769-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.24

116-4079

15

Wld,LH OPC Lever

Part# 116-4079

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-803322

15:1:2

Setscrew-5/16-24 X 5/16

Part# 1-803322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

116-4080

16

Wld,RH OPC Lever

Part# 116-4080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-803322

16:1:2

Setscrew-5/16-24 X 5/16

Part# 1-803322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3256-23

17

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

1-323244

18

Washer-Friction

Part# 1-323244

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

126-0148

19

Lever, Shift W/Grip

Part# 126-0148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.13

103-5994

19:2

Grip-Handle, Steering

Part# 103-5994

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

1-603716

20

Washer-Friction Disc

Part# 1-603716

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

322-11

21

Screw-HH 5/16-18 X 2 1/4

Part# 322-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

1-323245

22

Spring-Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

104-8301

23

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

109-3958

24

Control-Throttle

Part# 109-3958

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.06

1-807513

25

Bolt-Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3296-2

26

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

104-7201

27

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

98-5975

28

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

323-7

29

Screw-HH 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3256-22

30

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

321-14

31

Screw-HH 1/4-20 X 2 3/4

Part# 321-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.60

1-303363

32

Spring-Extension

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-413225

33

Rod, Speed Control

Part# 1-413225

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.40

1-303105

34

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.81

1-808280

35

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3272-5

36

Pin-Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-806003

37

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

322-9

38

Screw-HH 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.38

3296-29

39

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

103-1166

41

Spacer-Tube, Pump Link

Part# 103-1166

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

323-9

42

Screw-HH 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

103-2463

43

Balljoint

Part# 103-2463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

103-1167

44

Joint-Ball End

Part# 103-1167

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.44

103-1148

45

Rod,Drive Lever

Part# 103-1148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.94

3220-3

46

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.28

3219-3

47

Nut-Hex 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

3220-16

48

Nut-Jam 3/8-24 LH

Part# 3220-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

116-3414

49

Drive Link ASM

Part# 116-3414

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.36

104-8300

50

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79
