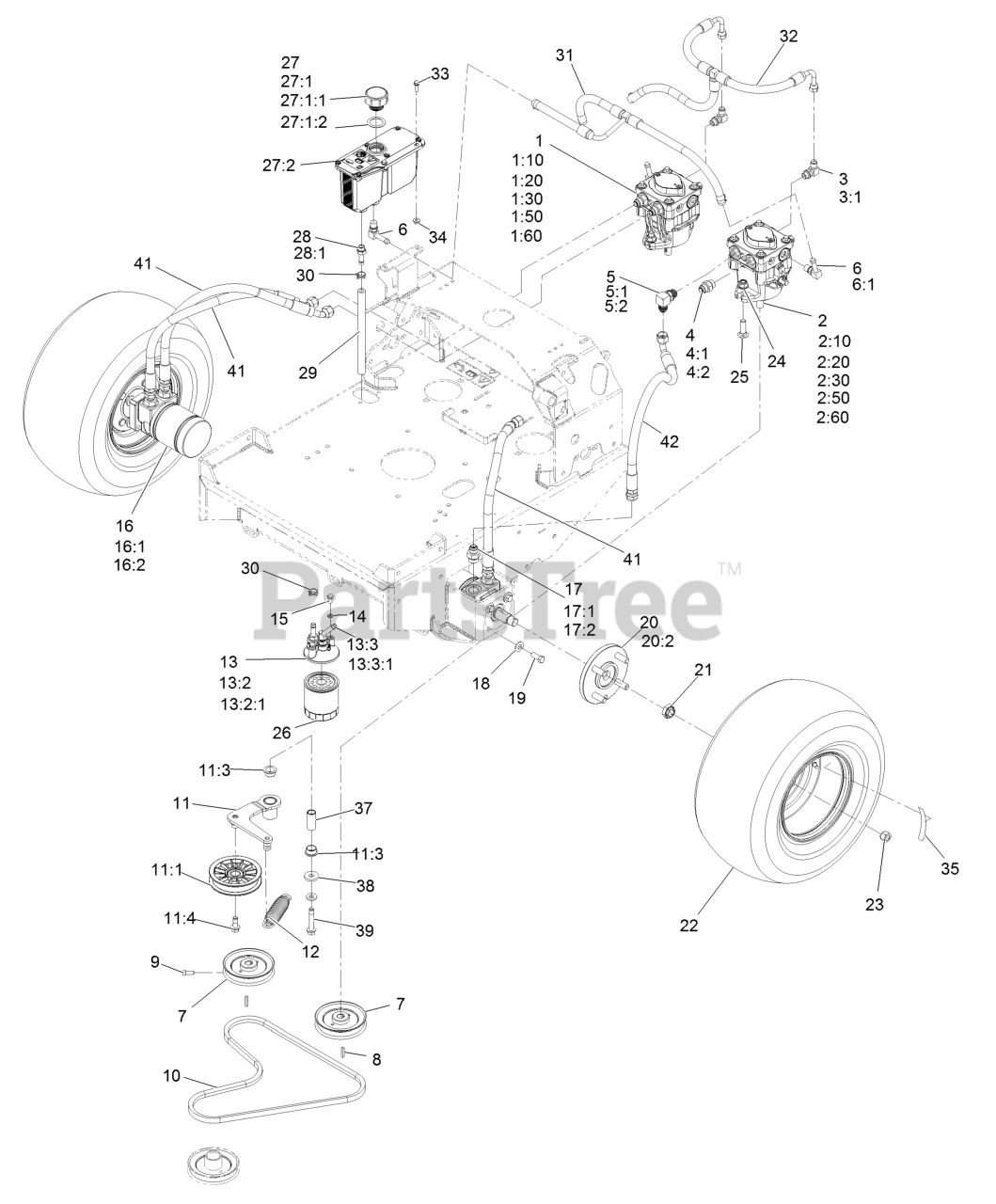

  • Title
116-2495

1

Pump-HYD Pe RH TTH

Part# 116-2495

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $884.02

103-2664

1:10

Input Shaft Kit

Part# 103-2664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $525.74

94-6922

1:20

Bearing-Thrust

Part# 94-6922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.97

103-2666

1:30

Cylinder Block Kit

Part# 103-2666

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $353.58

105-6184

1:50

Seal Overhaul Kit

Part# 105-6184

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.44

126-2479

1:60

Kit, 10Cc Pump Kit

Part# 126-2479

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $273.15

116-2494

2

Pump-HYD Pe LH TTH

Part# 116-2494

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $884.02

103-2664

2:10

Input Shaft Kit

Part# 103-2664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $525.74

94-6922

2:20

Bearing-Thrust

Part# 94-6922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.97

103-2666

2:30

Cylinder Block Kit

Part# 103-2666

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $353.58

105-6184

2:50

Seal Overhaul Kit

Part# 105-6184

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.44

126-2479

2:60

Kit, 10Cc Pump Kit

Part# 126-2479

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $273.15

103-1802

3

Ftg-Elbow 90D

Part# 103-1802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.71

237-42

3:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.26

1-603990

4

Adapter-Straight

Part# 1-603990

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.24

1-603920

4:1

O-Ring-SAE #8

Part# 1-603920

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-603992

4:2

O-Ring-37 Flare #8

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-2153

5

Elbow-90deg

Part# 103-2153

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.31

1-603920

5:1

O-Ring-SAE #8

Part# 1-603920

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-603992

5:2

O-Ring-37 Flare #8

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

100-4887

6

Fitting-Barbed, 90 DEG

Part# 100-4887

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.32

237-42

6:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.26

1-413010

7

Sheave ASM

Part# 1-413010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.15

1-807272

8

Key-5Mm X 5Mm X 25Mm

Part# 1-807272

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.24

120-6474

9

Screw-Set, SQH 5/16-18 X 3/4

Part# 120-6474

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-4761

10

Belt

Part# 103-4761

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

126-2531

11

ASM, Pump Idler

Part# 126-2531

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $114.03

109-4077

11:1

Pulley-Idler, Flat

Part# 109-4077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

109-8054

11:3

Bushing-Flanged

Part# 109-8054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.38

126-1680

11:4

Screw-Hfh

Part# 126-1680

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

116-6316

12

Spring-Extension

Part# 116-6316

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.64

126-0621

13

ASM, Filter Head

Part# 126-0621

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.71

103-1912

13:2

Adapter-Straight

Part# 103-1912

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.66

237-42

13:2:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.26

103-1807

13:3

Fitting-Barbed, 45 DEG

Part# 103-1807

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.00

237-42

13:3:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.26

1-805004

14

Washer-Lock 1/4 Heavy

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

321-3

15

Screw-HH 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

1-603718

16

HYD Motor ASM

Part# 1-603718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $824.18

1-000119

16:1

Seal Kit

Part# 1-000119

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $134.34

1-000138

16:2

Bearing And Seal Kit

Part# 1-000138

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $222.97

1-603991

17

Adapter-Straight

Part# 1-603991

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.66

237-80

17:1

O-Ring

Part# 237-80

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.86

1-603992

17:2

O-Ring-37 Flare #8

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

98-5975

18

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

323-6

19

Screw-HH 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

112-9049

20

Wheel Hub ASM

Part# 112-9049

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $125.63

1-633926

20:2

Stud-Wheel

Part# 1-633926

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.01

116-2839

21

Nut-Lock

Part# 116-2839

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

103-1715

22

Tire And Wheel Assy

Part# 103-1715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $250.42

242-50

23

Nut-Lug 1/2-20

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

114-8417

24

Nut-HF, NI

Part# 114-8417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.90

3232-3

25

Bolt-Carriage 7/16-14 X 1 1/2

Part# 3232-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

109-4180

26

Element, Oil Filter

Part# 109-4180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.53

126-1248

27

ASM, HYD Reservoir

Part# 126-1248 (Superseded to 116-2066)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $135.39

Reservoir-HYD

27:1

Reservoir-HYD

Part# Reservoir-HYD

Not available

103-1948

27:1:1

Cap-Reservoir, HYD

Part# 103-1948 (Superseded to 103-7615)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

103-1949

27:1:2

Gasket-Cap

Part# 103-1949

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

115-4212

27:2

Decal-Warning

Part# 115-4212

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.23

103-1912

28

Adapter-Straight

Part# 103-1912

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.66

237-42

28:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.26

103-2959

29

Hose-Charge

Part# 103-2959

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.63

103-1988

30

Clamp-Hose 11/16

Part# 103-1988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

126-2550

31

Hose, Case

Part# 126-2550

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.11

126-2555

32

Hose, Charge

Part# 126-2555

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.57

32105-15

33

Screw-Machine 1/4-20 X 3/4

Part# 32105-15

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

32128-33

34

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

126-2056

35

Decal-Torque Wheel Lug-Hub

Part# 126-2056

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.05

126-2954

37

Pivot, Idler

Part# 126-2954

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

1-373034

38

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.33

126-2956

39

Screw-HHF W/ Patch

Part# 126-2956

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

116-8646

41

Hose,Hydraulic W/Cover

Part# 116-8646

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.21

119-7827

42

HYD Hose ASM

Part# 119-7827

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.87
