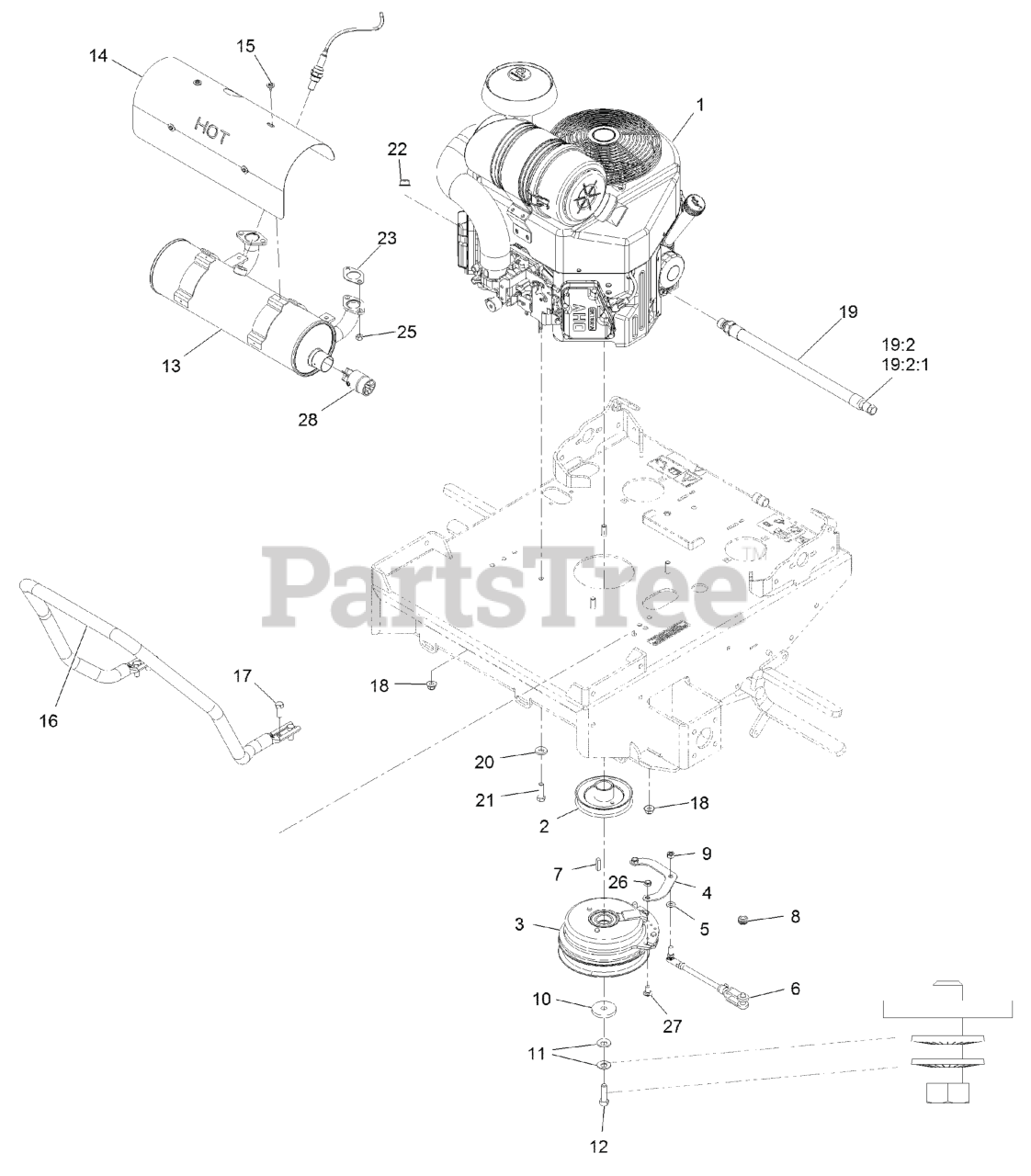

TTX650EKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 404314159 - 406294344) (2019) > Parts Diagrams (13) > Engine Assembly

  • Title

1

Engine, Kohler Ecv650-3017

Part#

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

Not available

126-2605

2

SHEAVE W/ HUB

Part# 126-2605

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.37

126-2601

3

CLUTCH, 200 FT/LBS, 1.13

Part# 126-2601

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $457.61

126-2602

4

STRAP, CLUTCH

Part# 126-2602

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.40

3256-23

5

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

126-0620

6

ASM, CLUTCH ANCHOR

Part# 126-0620

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.37

1-807259

7

KEY

Part# 1-807259

Note: Apply anti-seize compound to engine crankshaft, pulley hub I.D., clutch bore I.D. and square key.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

237-136

8

GROMMET

Part# 237-136

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.13

3296-4

9

NUT-LOCK

Part# 3296-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

109-6919

10

WASHER-CLUTCH

Part# 109-6919

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

1-603610

11

WASHER-SPRING

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

87-2080

12

BOLT-HEX, TAP

Part# 87-2080

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.13

116-8653

13

MUFFLER-TTX, EFI

Part# 116-8653

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $221.63

116-8654

14

SHIELD-MUFFLER,TTX EFI

Part# 116-8654

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.50

116-1103

15

SCREW-HH, THREAD FORMING

Part# 116-1103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.91

135-4730-03

16

Guard,Air Cleaner

Part# 135-4730-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.32

323-6

17

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

104-8301

18

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

116-5316

19

OIL DRAIN HOSE ASM

Part# 116-5316

Note: Use a Teflon Pipe Sealant or equivalent on threads | Torque to 17-23 ft-lb

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $39.14

353-508

19:2

PLUG-HH

Part# 353-508

Note: Torque to 24-26 ft-lb

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.32

237-42

19:2:1

O-RING

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

1-303334

20

WASHER-SPRING

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.41

322-7

21

SCREW-HH

Part# 322-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

104-8300

22

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

110-6697

23

GASKET-EXHAUST

Part# 110-6697

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.82

68-9400

25

NUT-FLANGE

Part# 68-9400

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

3296-47

26

NUT-LOCK, NI

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.49

3230-18

27

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

75-6880

28

SCREEN-ARRESTER, SPARK

Part# 75-6880

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $90.13
