Exmark TTX650EKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Lookup with Diagrams

1

Exmark 126-2570

ASM, DECK W/ DECALS, 60

$3638.99

$

Usually ships in 3-6 days

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 20+

2:2

Exmark 116-0720

BEARING-BALL

$23.99

$

In Stock, Qty 20+

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 18

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$94.99

$

In Stock, Qty 20+

4

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

Currently unavailable 

4

Exmark 103-6403

USE 103-6403-S

(Superseded to 103-6403-S) 

$34.99

$

In Stock, Qty 20+

4

Exmark 103-6393

USE 103-6393-S

(Superseded to 103-6393-S) 

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$33.99

$

In Stock, Qty 20+

4

Exmark 103-6388

USE 103-6388-S

(Superseded to 103-6388-S) 

Note: Optional Equipment

$39.99

$

In Stock, Qty 7

4

Exmark 103-6383

USE 103-6383-S

(Superseded to 103-6383-S) 

Note: Optional Equipment

$36.99

$

In Stock, Qty 20+

5

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

7

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.99

$

In Stock, Qty 20+

8

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

9

Exmark 116-5614-01

DOGLEG - LZ60

$66.99

$

Usually ships in 3-6 days

10

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$74.99

$

In Stock, Qty 20+

11

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

12

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 20+

13

Exmark 109-2872

SPACER-PULLEY

$23.99

$

In Stock, Qty 20+

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

15

Exmark 126-2314

ASM, DECK IDLER

$206.99

$

Usually ships in 3-6 days

16

Exmark 3231-24

SCREW-CARR

$15.99

$

Usually ships in 3-6 days

17

Exmark 126-9196

IDLER-PULLEY, FLAT

$64.99

$

In Stock, Qty 20+

18

Exmark 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 20+

19

Exmark 126-9187

PULLEY-IDLER, FLAT

$63.99

$

In Stock, Qty 9

20

Exmark 135-4829

ROD, DECK SUPPORT

$35.99

$

Usually ships in 3-6 days

21

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

22

Exmark 1-603050

SPACER

$7.99

$

In Stock, Qty 6

23

Exmark 1-414521

USE 1-411532

(Superseded to 1-411532) 

$164.99

$

In Stock, Qty 8

23:1

Exmark 1-413525

LINK,SUPPORT

$51.99

$

In Stock, Qty 10

23:2

Exmark 1-613204

BALLJOINT

$34.99

$

In Stock, Qty 20+

23:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

24

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

25

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 8

26

Exmark 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

27

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

28

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

29

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

30

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

31

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

32

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

33

Exmark 1-806332

USE 32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 20+

34

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

35

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

36

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$55.99

$

In Stock, Qty 20+

37

Exmark 116-0094

COVER-BELT, RH

$92.99

$

In Stock, Qty 20+

38

Exmark 109-6938

COVER-BELT, LH

$102.99

$

In Stock, Qty 19

39

Exmark 109-7188

ASM,DISCHARGE CHUTE

$123.99

$

In Stock, only 1 left!

39:1

Exmark 109-2738

CHUTE,DISCHARGE

$86.99

$

In Stock, Qty 10

39:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$57.99

$

In Stock, only 2 left!

39:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

39:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

40

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

41

Exmark 126-2539

USE 126-2539-SL

(Superseded to 126-2539-SL) 

$199.99

$

In Stock, Qty 8

42

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 4 left!

43

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

44

Exmark 116-8131

AXLE, ROLLER

$13.99

$

In Stock, Qty 20+

45

Exmark 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

46

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

47

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

48

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

$164.99

$

In Stock, Qty 8

49

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

50

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, only 2 left!

51

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

52

Exmark 32128-19

NUT-HF

$1.99

$

In Stock, Qty 20+

53

Exmark 135-4828

COLLAR, DECK HEIGHT PIN

$21.99

$

In Stock, only 3 left!

54

Exmark 32121-32

PIN-ROLL

$1.99

$

In Stock, Qty 20+

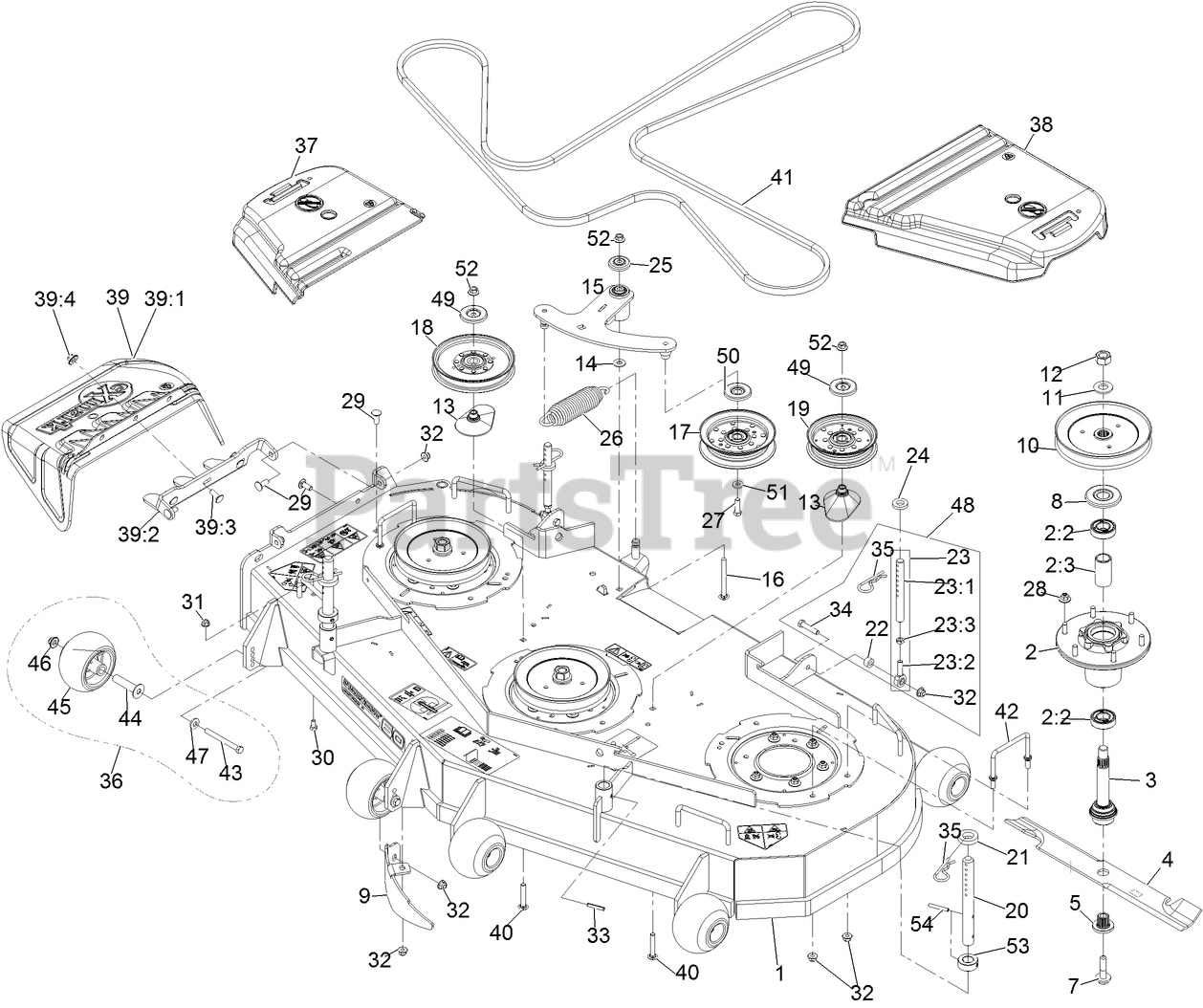

TTX650EKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

Deck Assembly Parts Diagram
