TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017)

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

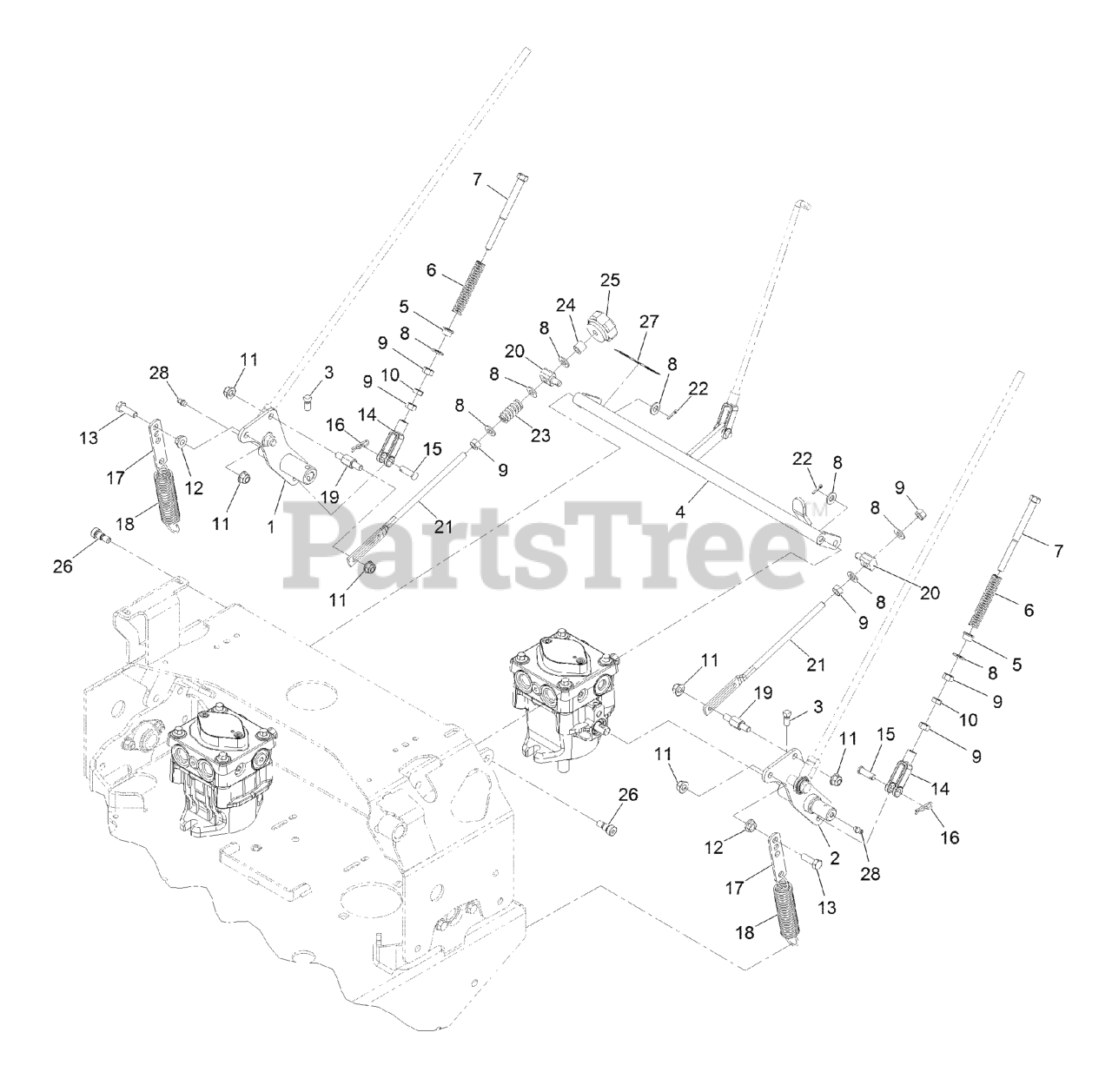

TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017) > Parts Diagrams (16) > Controls Assembly

  • Title
116-9975

1

Weld, Motion Control, Rt

Part# 116-9975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.31

116-9974

2

Weld, Motion Control, Lt

Part# 116-9974

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.31

1-803022

3

Setscrew-5/16-18 X 5/8

Part# 1-803022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.80

126-2982-01

4

Weld, Speed Control

Part# 126-2982-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.55

1-603735

5

Bushing-Flanged

Part# 1-603735

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.37

103-0265

6

Spring, Neutral Return

Part# 103-0265

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

1-603737

7

Bolt-Neutral Return

Part# 1-603737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.62

3256-23

8

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

3219-2

9

Nut-Hex 5/16-24

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3220-2

10

Nut-Jam 5/16-24

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

104-8300

11

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

32128-20

12

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

322-5

13

Screw-HH 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

1-303105

14

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.03

1-808280

15

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

1-806003

16

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-613089

17

Tab-Spring, Extension

Part# 1-613089

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.91

1-603693

18

Spring

Part# 1-603693

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.86

126-0610

19

Pin, Motion Control

Part# 126-0610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.51

1-603676

20

Swivel-Adjustable, Short

Part# 1-603676 (Superseded to 126-8571)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.31

1-413350

21

Link-Control, Speed

Part# 1-413350

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.20

3272-5

22

Pin-Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.02

1-323245

23

Spring-Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.68

1-603903

24

Spacer

Part# 1-603903

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.80

103-3060

25

Knob-Tracking

Part# 103-3060

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.61

1-809056

26

Screw-Sh 5/16-18 X 1 3/8

Part# 1-809056

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.84

116-7918

27

Decal-Tracking Adjustment

Part# 116-7918

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.00

302-19

28

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82
