TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

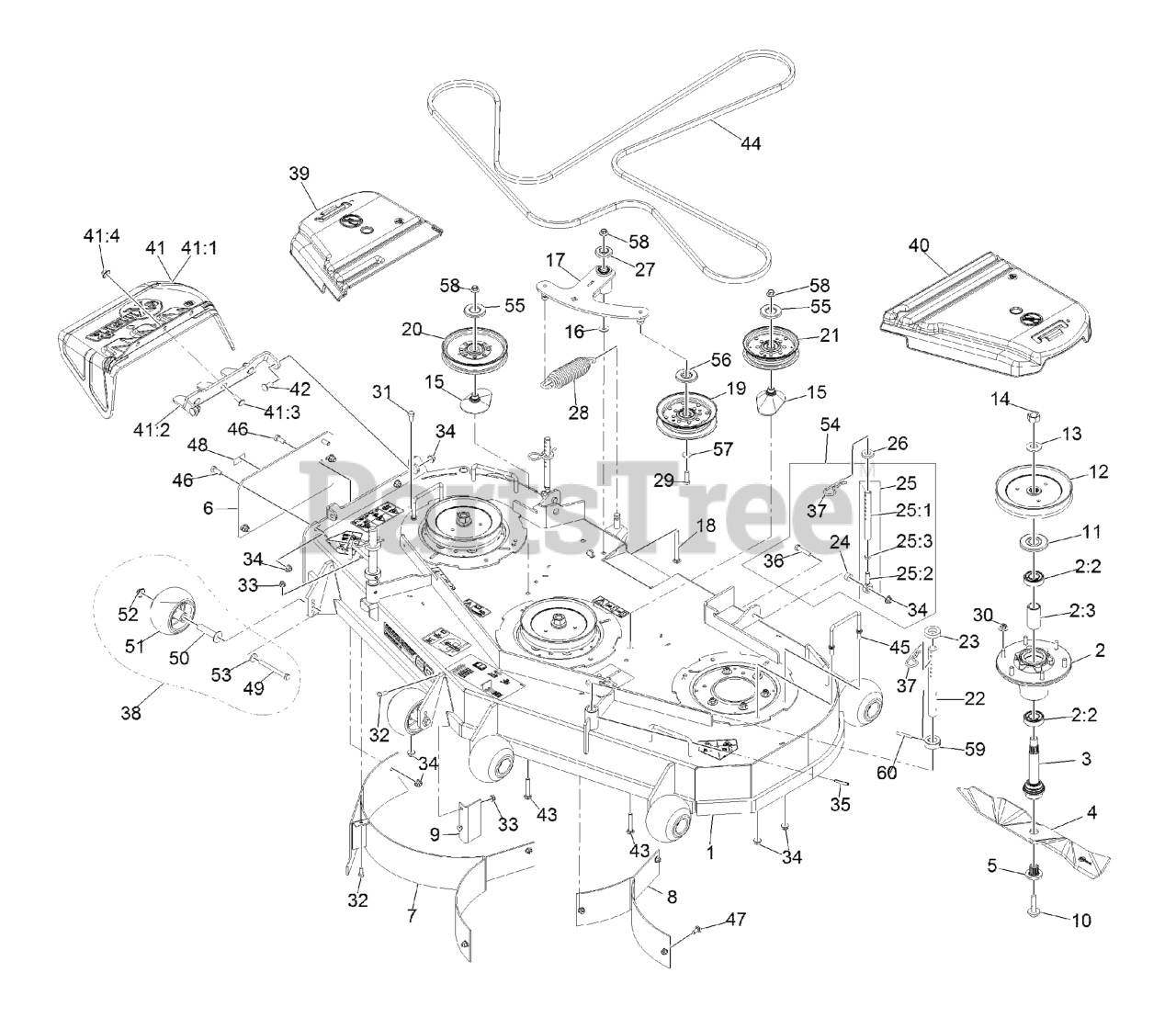

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-2570

ASM, DECK W/ DECALS, 60"

$3300.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.99

$

In Stock, Qty 9

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$89.99

$

In Stock, Qty 20+

0

4

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 20+

0

4

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

Usually ships in 3-6 days

0

4

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

4

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

4

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

5

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

6

Exmark 1-633957-01

PLATE-MULCH COVER, 604

$100.99

$

In Stock, Qty 5

0

7

Exmark 1-632954-03

BAFFLE WLD RH MULCH

$242.99

$

Usually ships in 3-6 days

0

8

Exmark 1-632948-03

XREF 1-632948-03 (EXMARK)

$103.99

$

In Stock, only 2 left!

0

9

Exmark 1-633956-03

BAFFLE,BLOCKER MK604

$49.99

$

In Stock, only 2 left!

0

10

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

11

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

12

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$68.99

$

In Stock, Qty 20+

0

13

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

15

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

16

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Exmark 126-2314

ASM, DECK IDLER

$185.99

$

In Stock, only 2 left!

0

18

Exmark 3231-24

SCREW-CARR

$14.99

$

Usually ships in 3-6 days

0

19

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$63.99

$

In Stock, Qty 20+

0

20

Exmark 116-4667

126-7685
(Superseded to 126-7685)

$63.99

$

In Stock, Qty 20+

0

21

Exmark 116-4665

126-9187
(Superseded to 126-9187)

$62.99

$

In Stock, Qty 20+

0

22

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, Qty 9

0

23

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

0

24

Exmark 1-603050

SPACER

$7.99

$

In Stock, Qty 11

0

25

Exmark 1-414521

1-411532
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 13

0

25:1

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, Qty 13

0

25:2

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 16

0

25:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

27

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 10

0

28

Exmark 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 20+

0

29

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 15

0

30

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

32

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

34

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

36

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

38

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$53.99

$

In Stock, Qty 13

0

39

Exmark 116-0094

COVER-BELT, RH

$84.99

$

In Stock, Qty 17

0

40

Exmark 109-6938

COVER-BELT, LH

$94.99

$

In Stock, Qty 13

0

41

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, Qty 15

0

41:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, only 4 left!

0

41:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

41:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

41:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

42

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

43

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

0

44

Exmark 126-2539

BELT, DECK DRIVE
(Superseded to 126-2539-SL)

$180.99

$

In Stock, Qty 9

0

45

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 7

0

46

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

48

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

Usually ships in 3-6 days

0

49

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

50

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 20+

0

51

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

52

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

53

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

54

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

$147.99

$

In Stock, Qty 13

0
