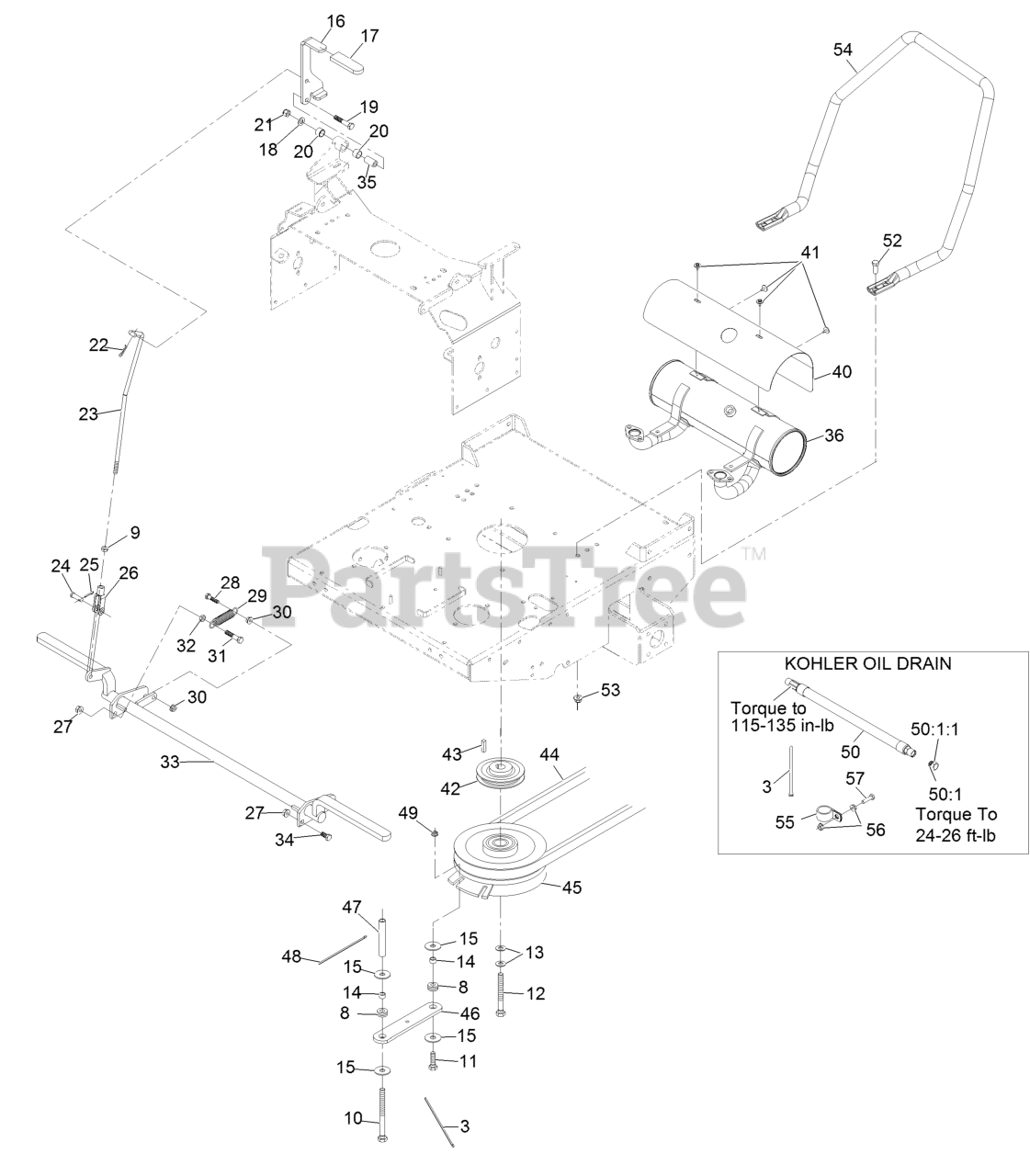

TTX650EKCE604 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 314000000 - 314999999) (2014) > Parts Diagrams (9) > Park Brake and Engine Assembly

  • Title
1-303335

3

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-633630

8

Grommet

Part# 1-633630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

3220-3

9

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.29

322-38

10

Screw-Hh 5/16-18 X 4 1/2

Part# 322-38

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

322-6

11

Screw-Hh 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

3212-10

12

Screw-Hh 7/16-20 X 2 1/2

Part# 3212-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.76

1-603610

13

Washer-Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

1-633545

14

Spacer

Part# 1-633545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

1-613235

15

Washer

Part# 1-613235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

109-4544

16

Lever, Park Brake (109-4543-03) W/Decal And Grip

Part# 109-4544

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.95

1-303020

17

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

3256-24

18

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

322-10

19

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-413347

20

Sleeve-Bushing

Part# 1-413347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

3296-39

21

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

1-806003

22

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

109-4078

23

Linkage, Park Brake

Part# 109-4078

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.45

1-808285

24

Pin-Clevis 3/8 X 1 1/8

Part# 1-808285

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.20

3272-10

25

Pin-Cotter 1/8 X 3/4

Part# 3272-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

1-633131

26

Yoke-Linkage, Brake

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

3290-357

27

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

116-3515

28

Screw,Hh Special 5/16-18 X 1.25

Part# 116-3515

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.89

1-323161

29

Spring

Part# 1-323161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.41

32128-20

30

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

323-9

31

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

3218-3

32

Nut-Jam 3/8-16

Part# 3218-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

116-9159

33

Brake Weldmt

Part# 116-9159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $143.44

323-4

34

Screw-Hh 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.05

1-413344

35

Bushing-Pivot

Part# 1-413344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.81

116-8653

36

Muffler

Part# 116-8653

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $209.08

116-8654

40

Shield-Muffler

Part# 116-8654

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.10

116-1103

41

Screw-Hh, Thread Forming

Part# 116-1103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.80

1-653035

42

Pulley

Part# 1-653035

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $49.63

1-807259

43

Key-Machine 1/4 X 1/4 X 1

Part# 1-807259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

1-603306

44

Belt, Deck Drive (60")

Part# 1-603306

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.23

103-0662

45

Clutch Asm

Part# 103-0662

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $394.77

1-633543-03

46

Strap-Clutch, Brake

Part# 1-633543-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.38

1-323195-03

47

Standoff, Clutch

Part# 1-323195-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.76

1-303287

48

Tie-Cable 5 1/2 (Small)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

32128-20

49

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

116-5316

50

Oil Drain Hose Asm

Part# 116-5316

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.93

353-508

50:1

Plug-W/O-Ring

Part# 353-508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.96

237-42

50:1:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

323-6

52

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

104-8301

53

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

116-8575-03

54

Guard-Air Cleaner

Part# 116-8575-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $69.42

1-643312

55

Clip-Loom

Part# 1-643312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

32128-33

56

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

321-6

57

Screw-Hh 1/4-20 X 1

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.41
