TTX680PKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 315000000 - 315999999) (2015)

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

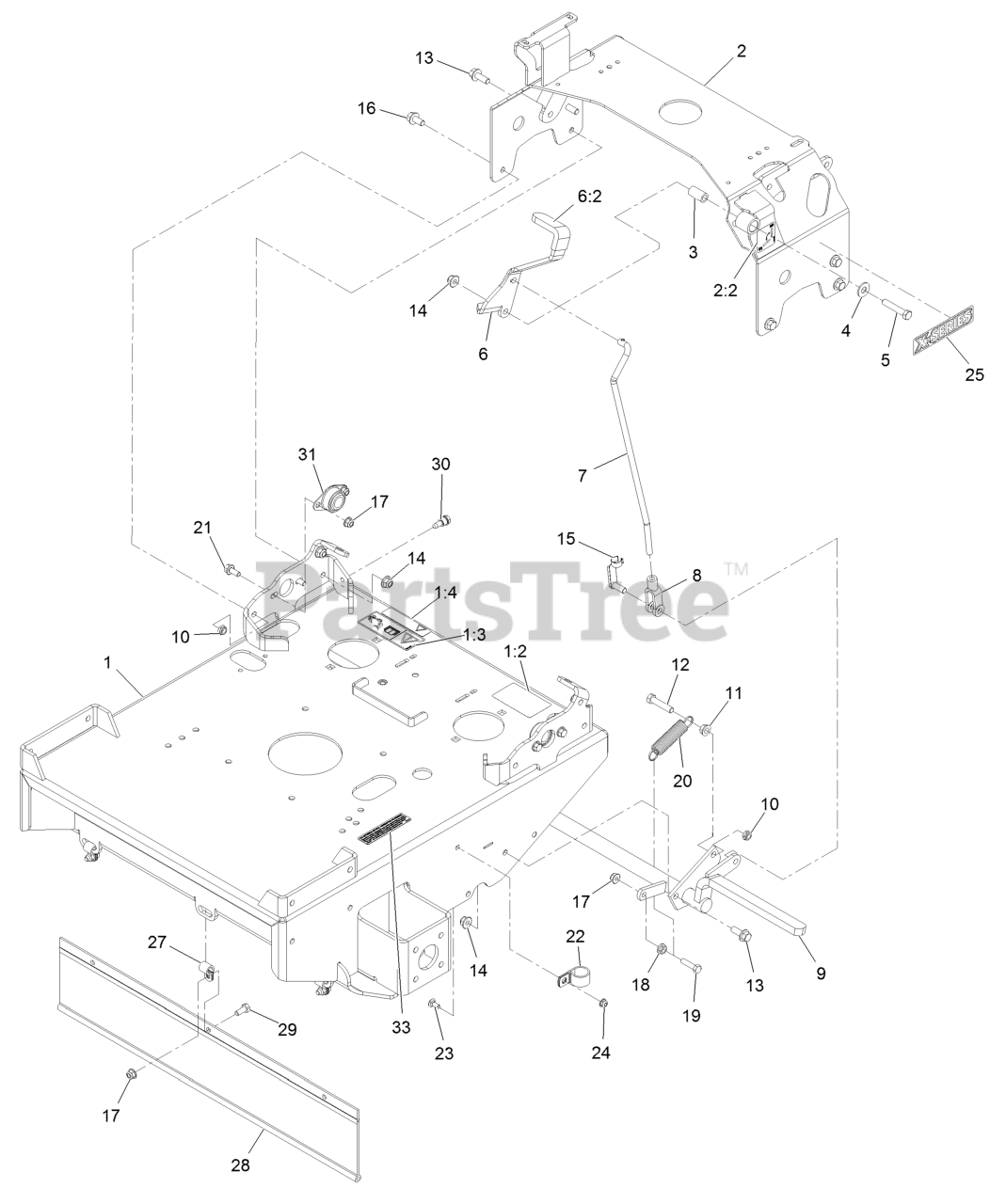

TTX680PKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 315000000 - 315999999) (2015) > Parts Diagrams (13) > Engine Deck Assembly

  • Title
126-2521

1

ASM, Engine Deck W/Decals

Part# 126-2521

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1016.31

98-1977

1:2

Decal-Warning

Part# 98-1977

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.91

126-1400

1:3

Decal-Warning, Sulky

Part# 126-1400

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.99

116-8253

1:4

Decal-Drive Release

Part# 116-8253

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.42

126-2181

2

ASM, Tank Support W/Decals

Part# 126-2181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $219.15

116-5988

2:2

Decal-Park Brake, Ce

Part# 116-5988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.00

1-413344

3

Bushing-Pivot

Part# 1-413344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.81

3256-4

4

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-10

5

Screw-HH 3/8-16 X 2

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

126-2180

6

ASM, Brake Lever W/ Grip

Part# 126-2180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.73

1-303020

6:2

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

116-9960

7

Linkage-Brake

Part# 116-9960

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.87

1-633131

8

Yoke-Linkage, Brake

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

116-9159

9

Wld,Brake Ttx

Part# 116-9159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $143.44

3296-59

10

Nut-Nyloc 3/8-16 Thin

Part# 3296-59 (Superseded to 121-4600)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3290-357

11

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

323-9

12

Screw-HH 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

3234-42

13

Screw HHF 3/8-16 X 1

Part# 3234-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.49

104-8301

14

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

103-2399

15

Pin-Clevis Spring 3/8

Part# 103-2399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.25

3234-12

16

Screw-HH Flg 3/8-16 X 3/4

Part# 3234-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.22

104-8300

17

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

32128-20

18

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

322-6

19

Screw-HH 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

1-323161

20

Spring

Part# 1-323161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.41

3234-47

21

Screw-HH Flg 5/16-18 X 3/

Part# 3234-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

1-643312

22

Clip-Loom

Part# 1-643312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

3229-11

23

Bolt-Carriage 1/4-20 X 5/8

Part# 3229-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

104-7201

24

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

116-3883

25

Decal-X-Series

Part# 116-3883

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.86

1-413510

27

Clip-Loom

Part# 1-413510

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

103-2224

28

Shield, Drag

Part# 103-2224

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.53

322-3

29

Screw-HH 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

115-1958

30

Bolt-Shoulder

Part# 115-1958

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.35

1-633102

31

Bearing-Flanged

Part# 1-633102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

117-2718

33

Decal-Arrester, Spark

Part# 117-2718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.55
