TTX680PKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 315000000 - 315999999) (2015)

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

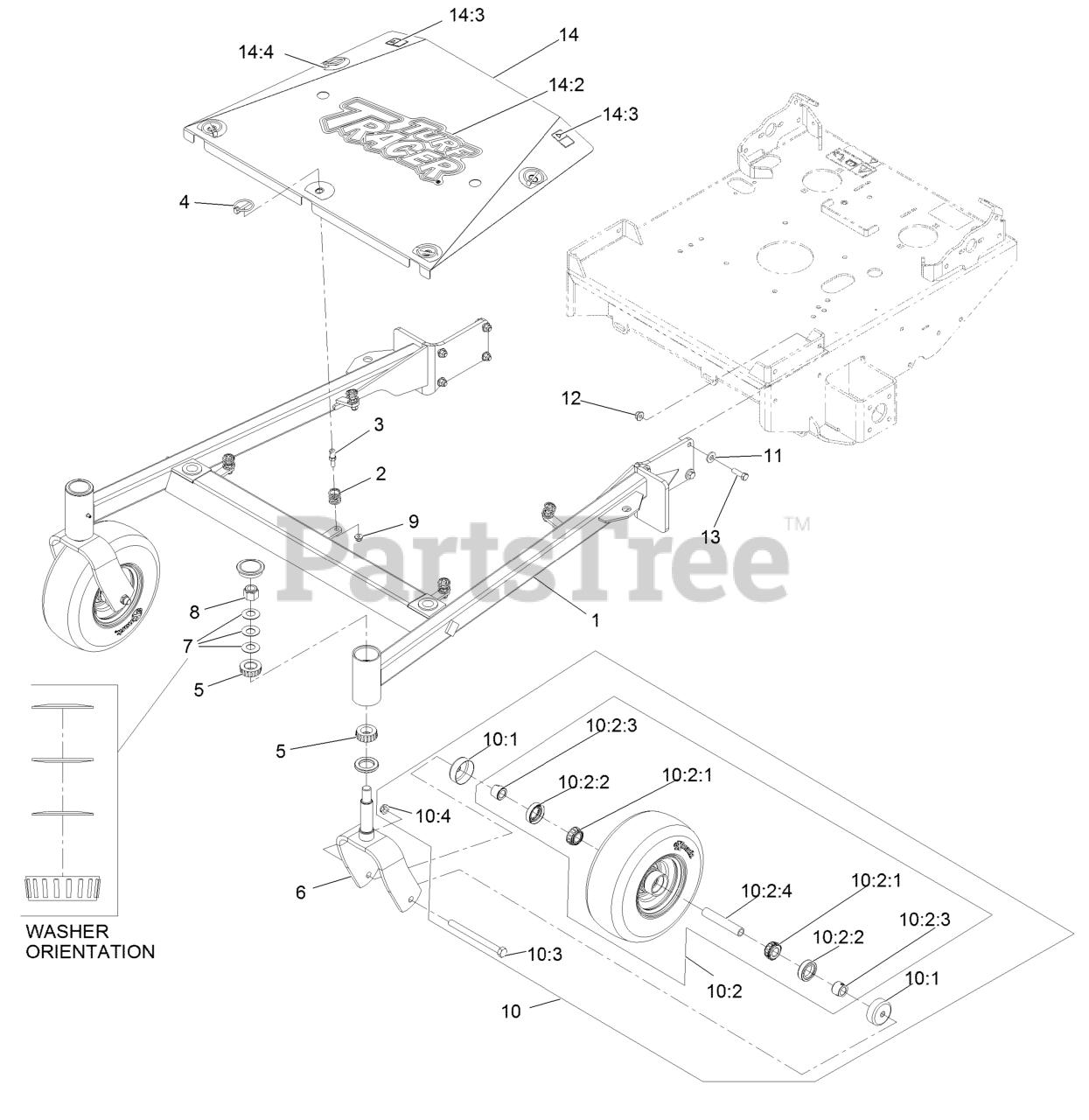

TTX680PKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 315000000 - 315999999) (2015) > Parts Diagrams (13) > Frame Assembly

  • Title
126-2541

1

ASM, Front Frame W/ Bearings, 60

Part# 126-2541

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $686.86

126-1503

2

Spring

Part# 126-1503

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.57

126-1504

3

Pin, Spring

Part# 126-1504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.76

92-1298

4

Pin-Lynch

Part# 92-1298

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.85

1-543509

5

Bearing-Roller, Tapered

Part# 1-543509

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

103-1891-01

6

Wld, Caster Fork

Part# 103-1891-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $78.48

1-633508

7

Washer-Bellville

Part# 1-633508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.64

3296-51

8

Nut-Lock, NI

Part# 3296-51

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.05

104-8300

9

Nut-Flange, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

ASM,Wheel&bearings

10

ASM,Wheel&bearings

Part# ASM,Wheel&bearings

Not available

103-2768

10:1

Guard-Seal

Part# 103-2768

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

ASM,Wheel And Bearing

10:2

ASM,Wheel And Bearing

Part# ASM,Wheel And Bearing

Not available

1-633585

10:2:1

Bearing-Cone, Taper

Part# 1-633585

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.99

103-0063

10:2:2

Seal-Caster

Part# 103-0063

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.99

103-3051

10:2:3

Spacer-Nut

Part# 103-3051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

103-3157

10:2:4

Axle-Caster

Part# 103-3157 (Superseded to 126-5359)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.68

325-20

10:3

Screw-HH

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.89

3296-45

10:4

Nut-Lock, NI

Part# 3296-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.93

98-5975

11

Washer-Belleville

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

104-8301

12

Nut-Flange, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

323-7

13

Screw-HH

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

126-2545

14

ASM, Center Shield W/ Decals, 60

Part# 126-2545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $99.66

103-3013

14:2

Decal, Turf Tracer

Part# 103-3013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.31

106-5517

14:3

Decal-Warning, Hot Surface

Part# 106-5517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

126-1692

14:4

Decal-Scratch Cover

Part# 126-1692

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.92
