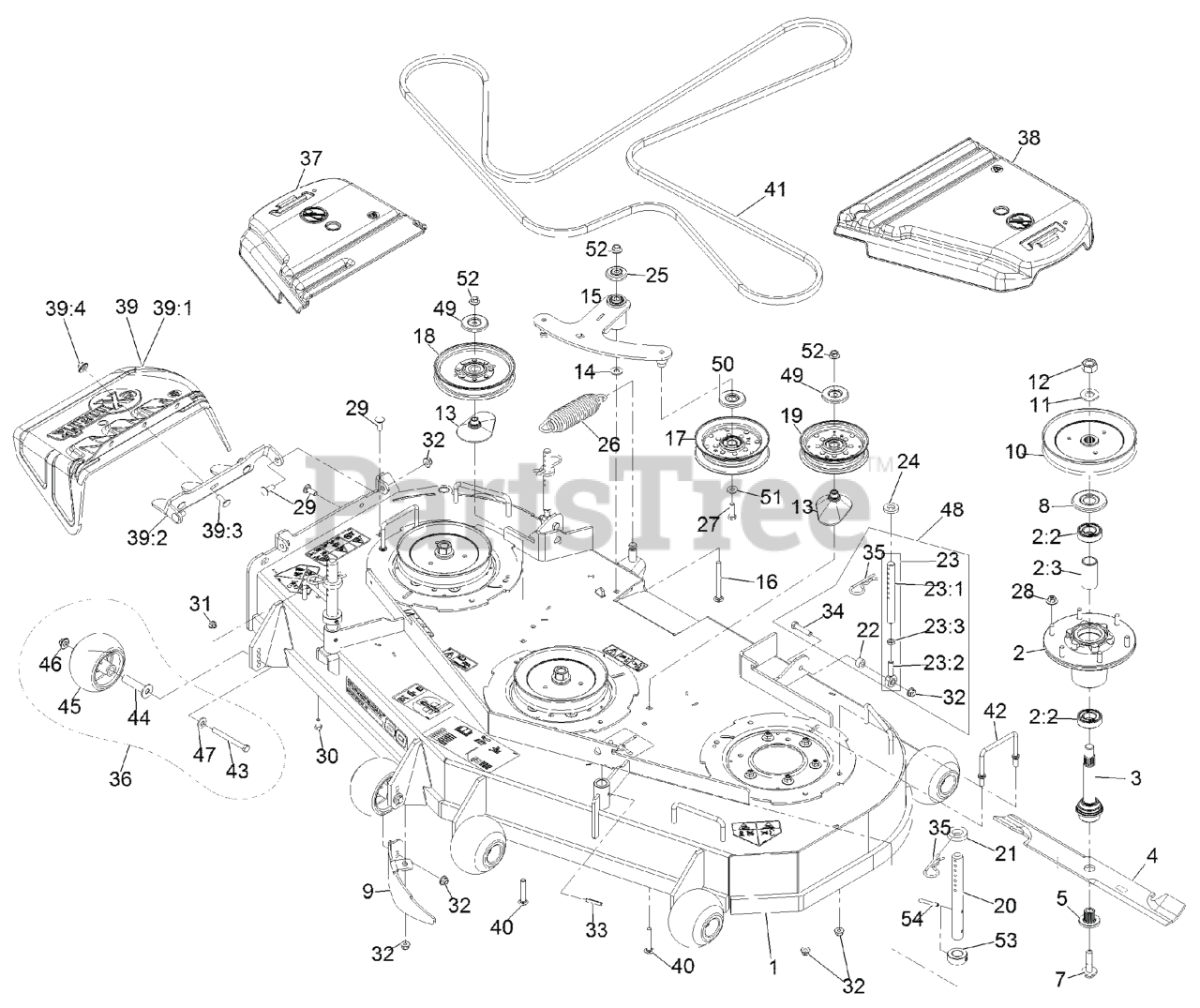

  • Title
126-2570

1

ASM, DECK W/ DECALS, 60"

Part# 126-2570

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2423.89

116-3344

2

ASM-CUTTER HSG WITH BEARINGS

Part# 116-3344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $123.55

116-0720

2:2

BEARING-BALL

Part# 116-0720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.90

116-3312

2:3

SPACER-BEARING

Part# 116-3312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

116-3341

3

ASM-SPINDLE AND SEAL

Part# 116-3341

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.47

116-5174

4

Blade-Extreme 2, 20.50"

Part# 116-5174

Note: Optional Equipment

OEM Warranty Repair Part for Exmark

Currently unavailable

103-6403

4

103-6403-S

Part# 103-6403 (Superseded to 103-6403-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.46

103-6393

4

103-6393-S

Part# 103-6393 (Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.24

103-6388

4

103-6388-S

Part# 103-6388 (Superseded to 103-6388-S)

Note: Optional Equipment

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.13

103-6383

4

103-6383-S

Part# 103-6383 (Superseded to 103-6383-S)

Note: Optional Equipment

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.68

103-3037

5

BUSHING,SPLINED

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

109-9220

7

SCREW,SEMS 1/2-20 X 2.19

Part# 109-9220

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations. | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

116-1286

8

GUARD,BEARING TOP .989

Part# 116-1286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

116-5614-01

9

DOGLEG - LZ60

Part# 116-5614-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.47

116-0676

10

SHEAVE,BLADE DRIVE 7.25

Part# 116-0676

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.60

103-2802

11

WASHER

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

116-7306

12

NUT-HEX

Part# 116-7306

Note: Torque to 130-160 ft-lb

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

109-2872

13

SPACER-PULLEY

Part# 109-2872

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.99

3256-4

14

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

126-2314

15

ASM, DECK IDLER

Part# 126-2314

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $137.03

3231-24

16

SCREW-CARR

Part# 3231-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.66

126-9196

17

IDLER-PULLEY, FLAT

Part# 126-9196

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.48

126-7685

18

IDLER-PULLEY

Part# 126-7685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.72

126-9187

19

PULLEY-IDLER, FLAT

Part# 126-9187

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.46

135-4829

20

Rod, Deck Support

Part# 135-4829

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.89

1-413425

21

SPACER-DECK SUPPORT

Part# 1-413425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.06

1-603050

22

SPACER

Part# 1-603050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.31

1-414521

23

1-411532

Part# 1-414521 (Superseded to 1-411532)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $107.50

1-413525

23:1

LINK,SUPPORT

Part# 1-413525

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $32.21

1-613204

23:2

BALLJOINT

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.90

3220-3

23:3

NUT-HJ

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

1-323539

24

SPACER

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.19

103-2916

25

GUARD-TOP

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

116-6317

26

SPRING-EXTENSION

Part# 116-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.55

323-7

27

SCREW-HH

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

109-6658

28

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3231-22

29

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

322-2

30

SCREW-HH

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

104-8300

31

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

104-8301

32

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-806332

33

32121-15

Part# 1-806332 (Superseded to 32121-15)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-9

34

SCREW-HH

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

1-806009

35

PIN,HAIR COTTER

Part# 1-806009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

116-9981

36

KIT, ANTI-SCALP ROLLER

Part# 116-9981

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.36

116-0094

37

COVER-BELT, RH

Part# 116-0094

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $62.40

109-6938

38

COVER-BELT, LH

Part# 109-6938

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $69.73

109-7188

39

ASM,DISCHARGE CHUTE

Part# 109-7188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $77.31

109-2738

39:1

CHUTE,DISCHARGE

Part# 109-2738

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.10

109-8675-01

39:2

BRACKET,DISCHARGE CHUTE

Part# 109-8675-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.29

3231-22

39:3

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

109-6658

39:4

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3231-40

40

BOLT-CARR, SHORT NECK

Part# 3231-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.42

126-2539

41

BELT, DECK DRIVE

Part# 126-2539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $115.66

109-6982

42

WIREFORM-COVER

Part# 109-6982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.17

116-9362

43

SCREW-HH 3/8-16 X 3 3/4 GR 8

Part# 116-9362

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.93

116-8131

44

AXLE, ROLLER

Part# 116-8131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.88

103-8415

45

ROLLER-SCALP, ANTI

Part# 103-8415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.57

109-6658

46

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

98-5975

47

WASHER-BELLEVILLE

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-411532

48

KIT,SUPPORT LINK W/PIN

Part# 1-411532

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $107.50

126-8043

49

SHIELD-DUST

Part# 126-8043

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.65

126-9195

50

SHIELD-GUARD, DUST

Part# 126-9195

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

43-0940

51

SPACER

Part# 43-0940

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.18

32128-19

52

NUT-HF

Part# 32128-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.19

135-4828

53

Collar, Deck Height Pin

Part# 135-4828

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.87

32121-32

54

PIN-ROLL

Part# 32121-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
