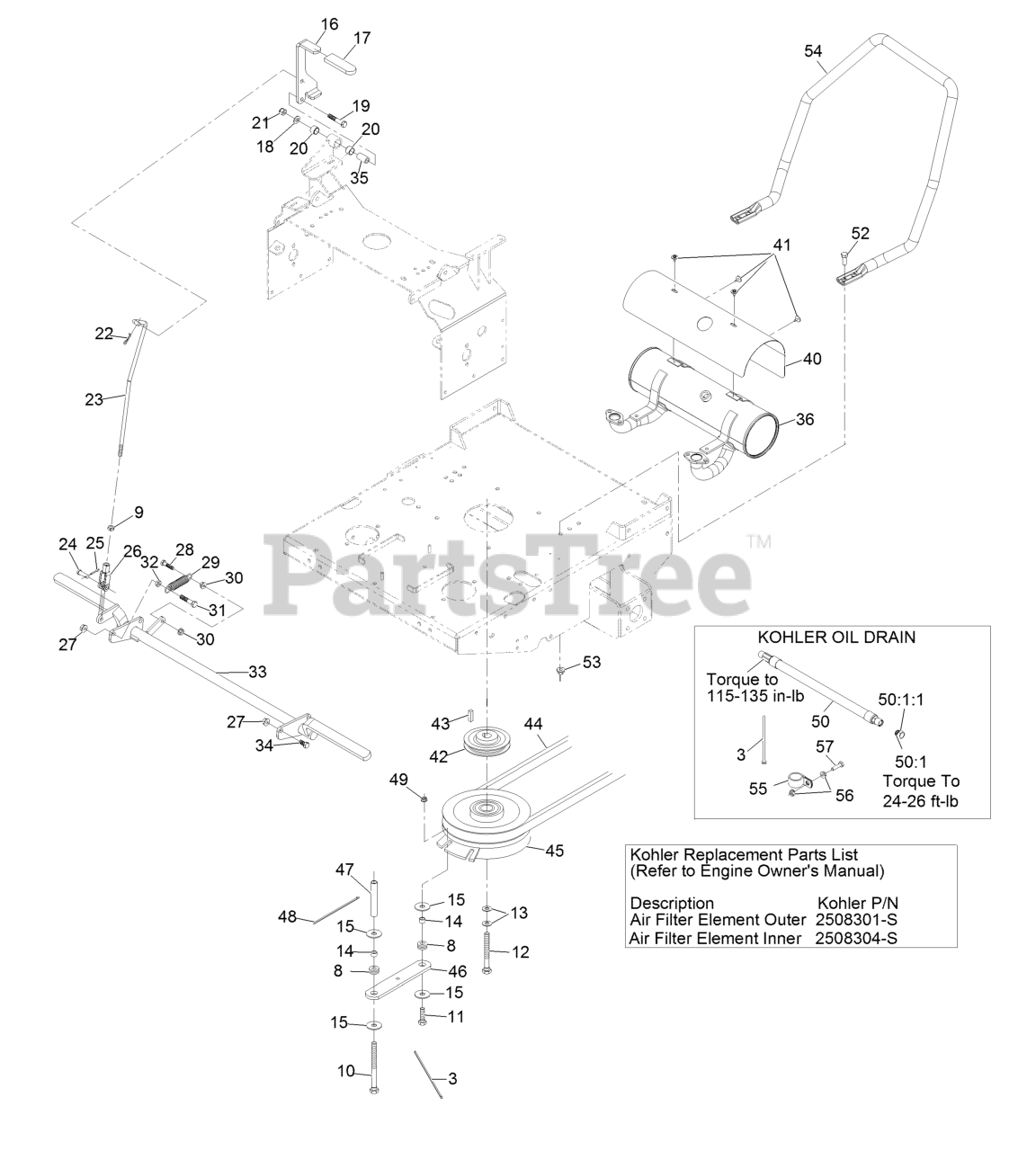

TTX680PKCE604 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 313000000 - 313999999) (2013) > Parts Diagrams (9) > Park Brake and Engine

  • Title
1-303335

3

Tie-Plastic

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.98

1-633630

8

Grommet

Part# 1-633630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

3220-3

9

Nut-Hj

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

322-38

10

Screw-Hh

Part# 322-38

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.30

322-6

11

Screw-Hh

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.38

3212-10

12

Screw-Hh

Part# 3212-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.05

1-603610

13

Washer-Spring

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

1-633545

14

Spacer

Part# 1-633545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

1-613235

15

Washer

Part# 1-613235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.15

116-5090

16

Lever, Park Brake (116-1248-03) W/Decal & Grip

Part# 116-5090

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.26

1-303020

17

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.57

3256-24

18

Washer-Flat

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

322-10

19

Screw-Hh

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

1-413347

20

Sleeve-Bushing

Part# 1-413347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.92

3296-39

21

Nut-Lock, Ni

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-806003

22

Pin-Cotter, Hair

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

109-4078

23

Linkage, Park Brake

Part# 109-4078

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.76

1-808285

24

Pin-Clevis

Part# 1-808285

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

3272-10

25

Pin-Cotter

Part# 3272-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.92

1-633131

26

Yoke-Linkage, Brake

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

3290-357

27

Nut-Hhf, Whiz

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-3515

28

Screw-Hh, Special

Part# 116-3515

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.95

1-323161

29

Spring-Idler

Part# 1-323161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.86

32128-20

30

Nut-Hf

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

323-9

31

Screw-Hh

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

3218-3

32

Nut-Jam

Part# 3218-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.47

103-2205-03

33

Brake Weldmt

Part# 103-2205-03 (Superseded to 116-9159)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $152.03

323-4

34

Screw-Hh

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

1-413344

35

Bushing-Pivot

Part# 1-413344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.64

116-8653

36

Muffler

Part# 116-8653

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $221.63

116-8654

40

Shield-Muffler

Part# 116-8654

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.50

116-1103

41

Screw-Hh, Thread Forming

Part# 116-1103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.91

1-653035

42

Pulley

Part# 1-653035

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.60

1-807259

43

Key

Part# 1-807259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

1-603306

44

Belt, Deck Drive (60")

Part# 1-603306

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.23

103-0662

45

Clutch Asm

Part# 103-0662

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $418.46

1-633543-03

46

Strap-Clutch, Brake

Part# 1-633543-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.00

1-323195-03

47

Standoff, Clutch

Part# 1-323195-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.10

1-303287

48

Tie-Cable

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.64

32128-20

49

Nut-Hf

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

116-5316

50

Oil Drain Hose Asm

Part# 116-5316

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $39.14

353-508

50:1

Plug-Hh

Part# 353-508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.32

237-42

50:1:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

323-6

52

Screw-Hh

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

104-8301

53

Nut-Flange, Ni

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

116-8575-03

54

Guard-Air Cleaner

Part# 116-8575-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $78.42

1-643312

55

Clip-Loom

Part# 1-643312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.09

32128-33

56

Nut-Hf

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

321-6

57

Screw-Hh

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44
