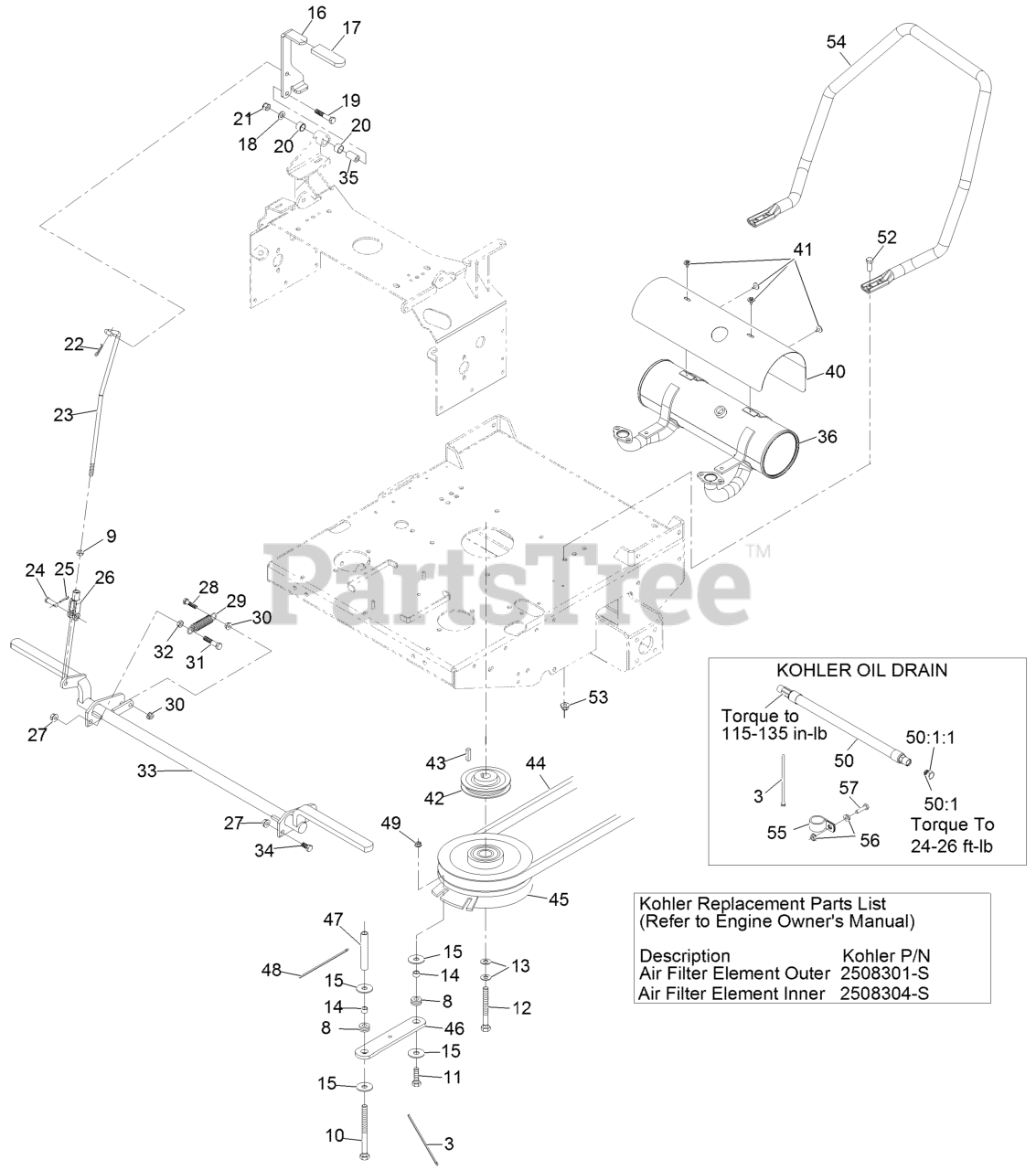

TTX680PKCE604 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 314000000 - 314999999) (2014) Park Brake and Engine Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

Park Brake and Engine Assembly Parts Diagram

  • Title

3

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

8

Exmark 1-633630

GROMMET

$5.99

$

In Stock, only 4 left!

0

9

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 322-38

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

11

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.99

$

In Stock, Qty 20+

0

13

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

14

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

16

Exmark 116-5090

LEVER, PARK BRAKE W/DECAL

$

$

Not available

17

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 18

0

21

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

23

Exmark 109-4078

LINKAGE, PARK BRAKE

$61.99

$

Usually ships in 3-6 days

0

24

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

0

25

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

0

27

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Exmark 116-3515

SCREW-HH, SPECIAL

$

$

Not available

29

Exmark 1-323161

SPRING-IDLER

$12.99

$

In Stock, only 2 left!

0

30

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 14

0

33

Exmark 116-9159

WLD,BRAKE TTX

$242.99

$

Usually ships in 3-6 days

0

34

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

35

Exmark 1-413344

BUSHING-PIVOT

$20.99

$

In Stock, only 1 left!

0

36

Exmark 116-8653

MUFFLER-TTX, EFI

$336.99

$

Usually ships in 3-6 days

0

40

Exmark 116-8654

SHIELD-MUFFLER,TTX EFI

$67.99

$

Usually ships in 3-6 days

0

41

Exmark 116-1103

SCREW-HH, THREAD FORMING

$2.99

$

In Stock, Qty 5

0

42

Exmark 1-653035

PULLEY

Note: Install sheave with long end of hub up.

$72.99

$

Usually ships in 3-6 days

0

43

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

44

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$69.99

$

In Stock, Qty 10

0

45

Exmark 103-0662

CLUTCH ASM

$534.99

$

In Stock, only 1 left!

0

46

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$15.99

$

In Stock, only 1 left!

0

47

Exmark 1-323195-03

SPACER,SHIELD

$8.99

$

Usually ships in 3-6 days

0

48

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

49

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

50

Exmark 116-5316

OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$58.99

$

In Stock, Qty 15

0

50:1

Exmark 353-508

PLUG-HH

$8.99

$

In Stock, only 4 left!

0

50:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

52

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

53

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

54

Exmark 116-8575-03

GUARD,AIR CLEANER
(Superseded to 135-4730-03)

$138.99

$

Usually ships in 3-6 days

0

55

Exmark 1-643312

CLIP-LOOM

$6.99

$

Usually ships in 3-6 days

0

56

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

57

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10
