TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 316000000 - 399999999) (2016) Controls Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

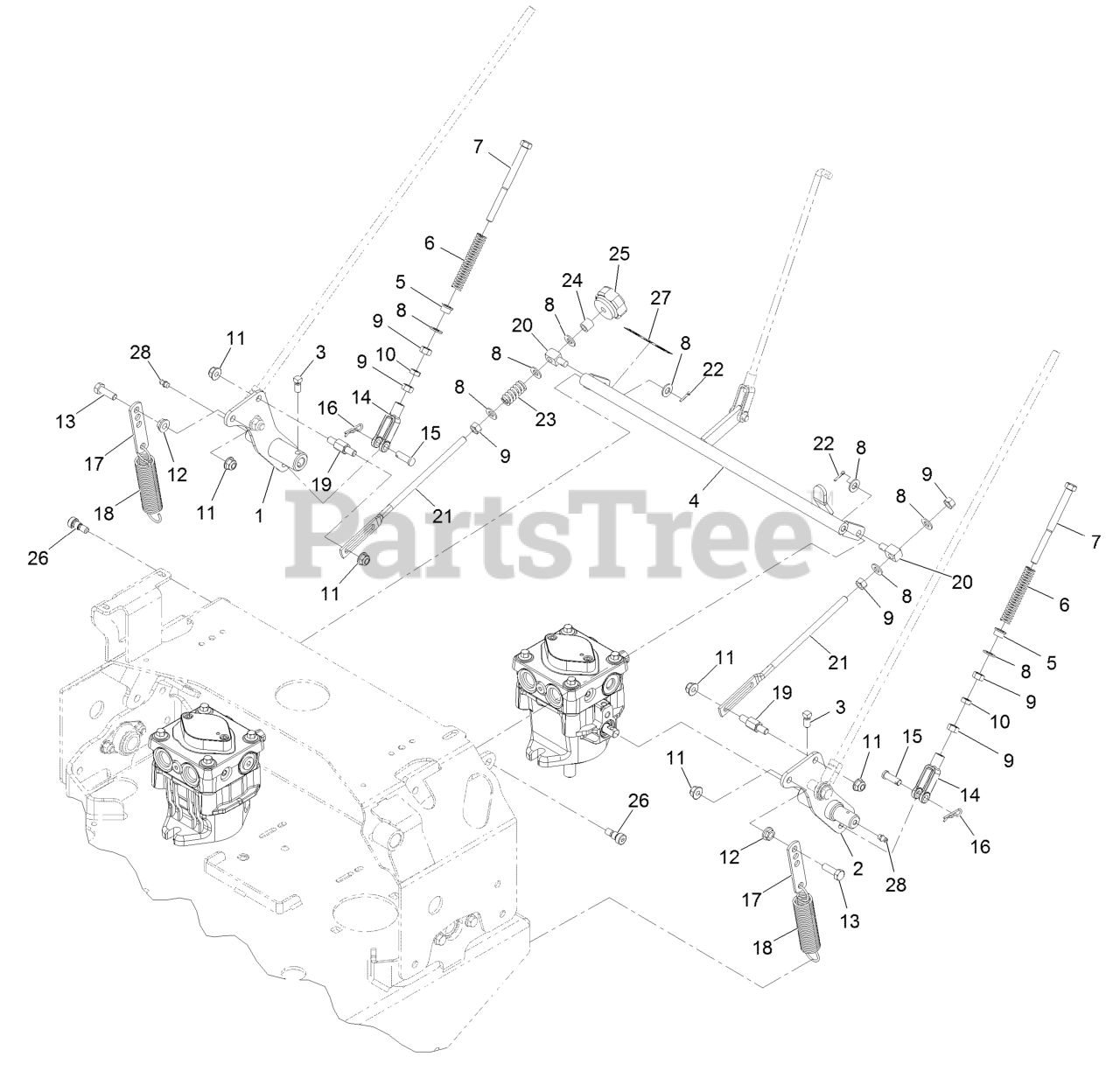

Controls Assembly Parts Diagram

  • Title

1

Exmark 116-9975

WELD, MOTION CONTROL, RT

$76.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9974

WELD, MOTION CONTROL, LT

$76.99

$

Usually ships in 3-6 days

0

3

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

4

Exmark 126-2982-01

WELD, SPEED CONTROL

$99.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, Qty 7

0

6

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

Usually ships in 3-6 days

0

8

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

15

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 7

0

16

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

17

Exmark 1-613089

TAB-SPRING, EXTENSION

$11.99

$

In Stock, Qty 5

0

18

Exmark 1-603693

SPRING-EXTENSION

$15.99

$

In Stock, only 2 left!

0

19

Exmark 126-0610

PIN, MOTION CONTROL

$6.99

$

Usually ships in 3-6 days

0

20

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, Qty 11

0

21

Exmark 1-413350

LINK-CONTROL, SPEED

$17.99

$

In Stock, Qty 7

0

22

Exmark 3272-5

PIN-COTTER

$1.99

$

In Stock, only 1 left!

0

23

Exmark 1-323245

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 17

0

24

Exmark 1-603903

SPACER

$5.99

$

In Stock, Qty 20+

0

25

Exmark 103-3060

KNOB-TRACKING

$7.49

$

In Stock, Qty 16

0

26

Exmark 1-809056

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

27

Exmark 116-7918

DECAL-TRACKING ADJUSTMENT

$27.99

$

Usually ships in 3-6 days

0

28

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0
