TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 316000000 - 399999999) (2016)

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

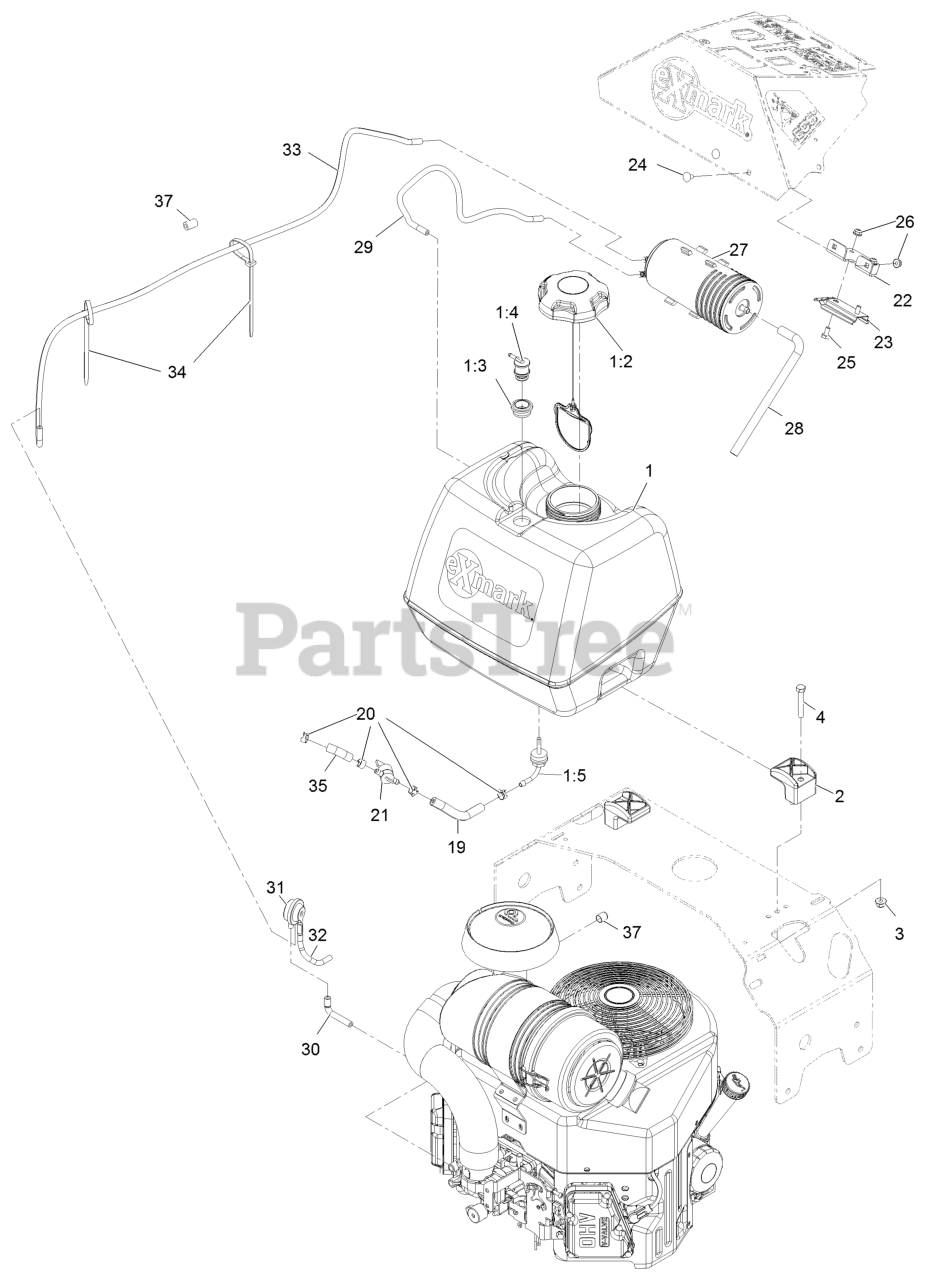

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 316000000 - 399999999) (2016) > Parts Diagrams (13) > Fuel Assembly

  • Title
126-1525

1

ASM, Fuel Tank

Part# 126-1525 (Superseded to 135-2855)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $208.39

120-5461

1:2

Cap-Fuel, Ratcheting

Part# 120-5461 (Superseded to 137-4119)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

114-0284

1:3

Grommet

Part# 114-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

119-3547

1:4

Valve-Vent, Fuel

Part# 119-3547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.94

103-2605

1:5

Fitting-Fuel Bulkhead W/Strainer

Part# 103-2605

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

107-4543

2

Clamp

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.79

104-8300

3

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

322-10

4

Screw-HH 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

109-0650

19

Hose-Fuel

Part# 109-0650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

2412-98

20

Clamp-Hose

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.95

1-603770

21

Valve-Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

115-4486-01

22

Bracket-Canister, Carbon

Part# 115-4486-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.15

114-0292

23

Bracket-Canister, Carbon

Part# 114-0292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.96

3229-10

24

Bolt-Carriage 1/4-20 X 1/2

Part# 3229-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

321-2

25

Screw-HH 1/4-20 X 1/2

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.01

104-7201

26

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

117-1221

27

Canister-Carbon, 800Cc

Part# 117-1221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.82

115-0962

28

Hose-Vent, Canister

Part# 115-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.76

114-0286

29

Hose-Vent

Part# 114-0286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.87

116-2233

30

Hose-Vent, Formed

Part# 116-2233

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.63

116-2232

31

Valve-Control, Vacuum

Part# 116-2232

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.65

116-2394

32

Hose-Vent, Formed

Part# 116-2394

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

116-3116

33

Hose-Vent, Formed

Part# 116-3116

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.27

1-303335

34

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

99-9415

35

Hose-Fuel

Part# 99-9415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.50

116-4464

37

Plug-Port

Part# 116-4464

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.16
