TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017)

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

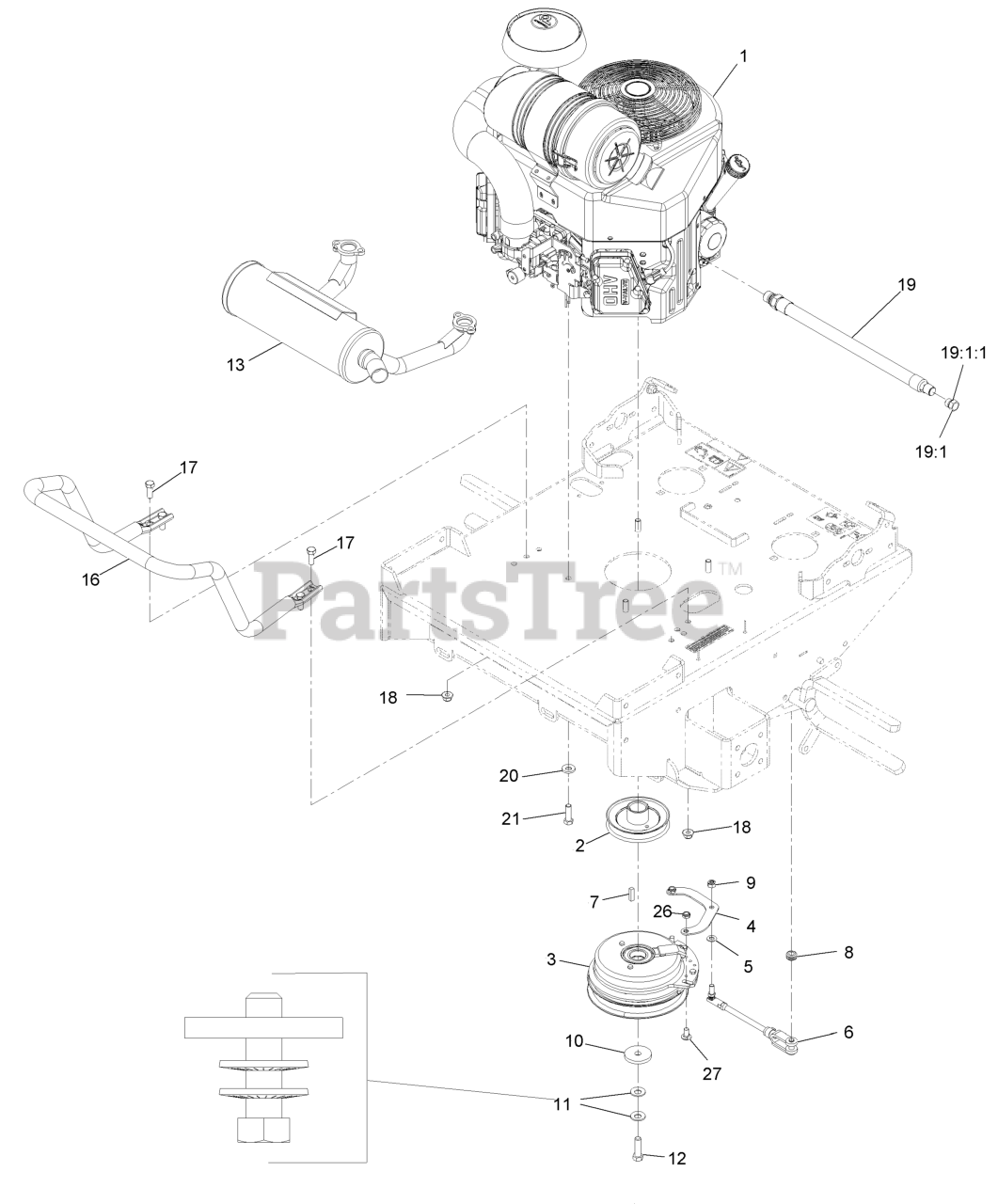

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Engine Assembly

  • Title
Engine, Kaw Fx691

1

Engine, Kaw Fx691

Part# Engine, Kaw Fx691

Not available

126-2605

2

Sheave W/ Hub

Part# 126-2605

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.47

126-2601

3

Clutch, 200 Ft/Lbs, 1.13

Part# 126-2601

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $431.71

126-2602

4

Strap, Clutch

Part# 126-2602

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.98

3256-23

5

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

126-0620

6

ASM, Clutch Anchor

Part# 126-0620

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $43.76

1-807259

7

Key-Machine 1/4 X 1/4 X 1

Part# 1-807259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

237-136

8

Grommet

Part# 237-136

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.95

3296-4

9

Nut-Lock 5/16-24

Part# 3296-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

109-6919

10

Washer-Clutch

Part# 109-6919

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

1-603610

11

Washer-Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

87-2080

12

Bolt-Hex, TAP

Part# 87-2080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.73

116-3736

13

Muffler,Horizontal

Part# 116-3736

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $209.08

116-6278-03

16

Guard-Muffler

Part# 116-6278-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.48

323-6

17

Screw-HH 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

104-8301

18

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

116-5052

19

Asm-Oil Drain Hose W/Plug

Part# 116-5052

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.78

353-508

19:1

Plug-W/O-Ring

Part# 353-508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.96

237-42

19:1:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

98-5975

20

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

323-7

21

Screw-HH 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3296-47

26

Nut-Nyloc 5/16-18 Thin

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

3230-18

27

Bolt-Carriage 5/16-18 X 5/8

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10
