TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017)

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

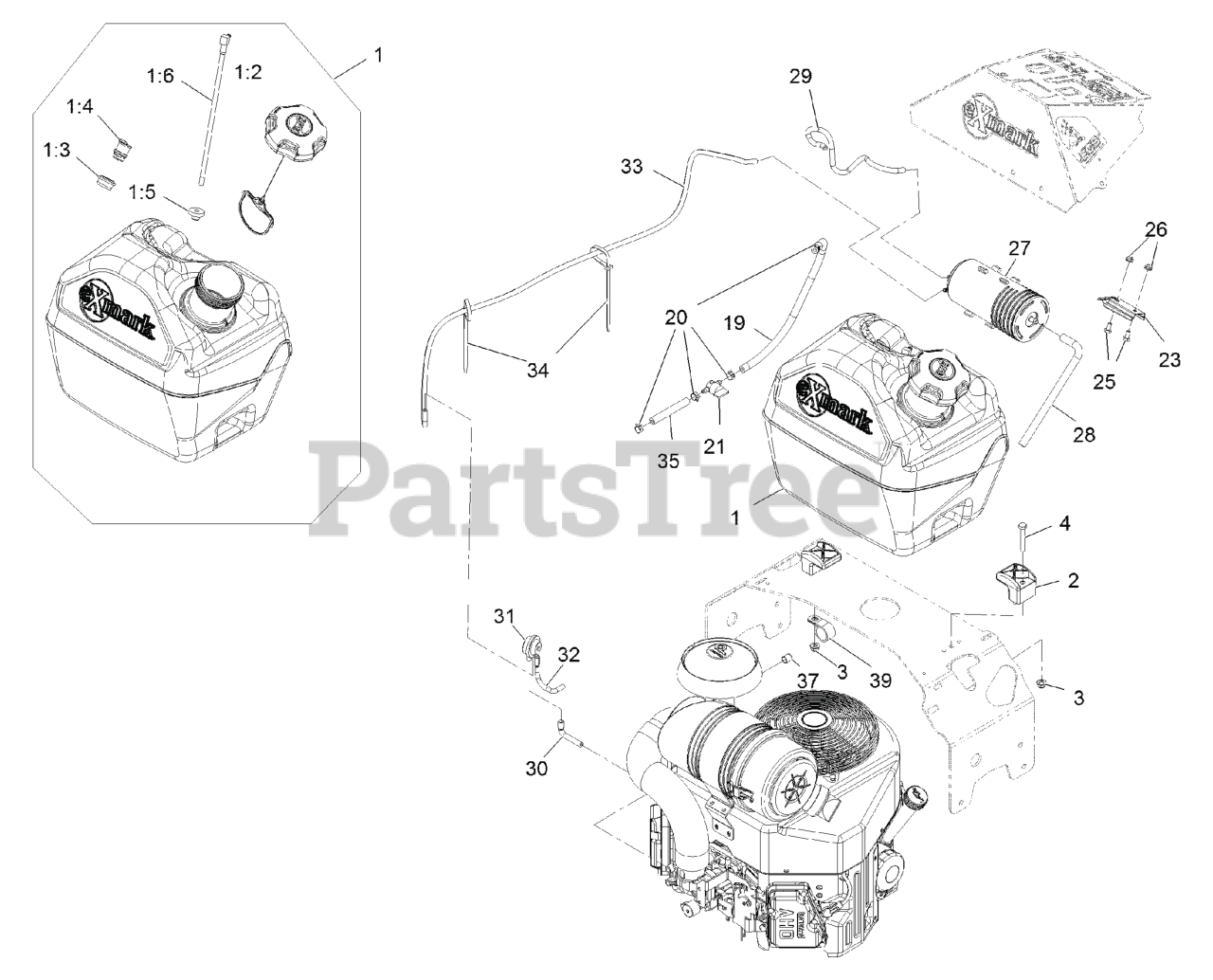

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Fuel Assembly

  • Title
126-9062

1

ASM, Fuel Tank 5 Gal

Part# 126-9062 (Superseded to 135-2855)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $215.16

135-0330

1:2

Cap-Fuel, Ratcheting (3.5")

Part# 135-0330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.76

114-0284

1:3

Grommet

Part# 114-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.89

119-3547

1:4

Valve-Vent, Fuel

Part# 119-3547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.00

46-6560

1:5

Bushing

Part# 46-6560

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.52

109-9364

1:6

Fitting-Fuel (W/Line And Screen)

Part# 109-9364 (Superseded to 116-2459)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.69

107-4543

2

Clamp

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.84

104-8300

3

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

322-10

4

Screw-HH 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

114-4428

19

Hose-Fuel

Part# 114-4428

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.21

2412-98

20

Clamp-Hose

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

1-603770

21

Valve-Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

115-4486-01

22

Bracket-Canister, Carbon

Part# 115-4486-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.27

114-0292

23

Bracket-Canister, Carbon

Part# 114-0292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.07

3229-10

24

Bolt-Carriage 1/4-20 X 1/2

Part# 3229-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

321-2

25

Screw-HH 1/4-20 X 1/2

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

104-7201

26

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

117-1221

27

Canister-Carbon, 800Cc

Part# 117-1221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.81

115-0962

28

Hose-Vent, Canister

Part# 115-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.08

116-4801

29

Hose-Emissions

Part# 116-4801

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.82

116-2233

30

Hose-Vent, Formed

Part# 116-2233

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.48

116-2232

31

Valve-Control, Vacuum

Part# 116-2232

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.31

116-2394

32

Hose-Vent, Formed

Part# 116-2394

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.48

116-3116

33

Hose-Vent, Formed

Part# 116-3116

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.65

1-303335

34

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

105-8342

35

Hose-Fuel

Part# 105-8342

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.50

116-4464

37

Plug-Port

Part# 116-4464

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.85

1-643312

39

Clip-Loom

Part# 1-643312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86
