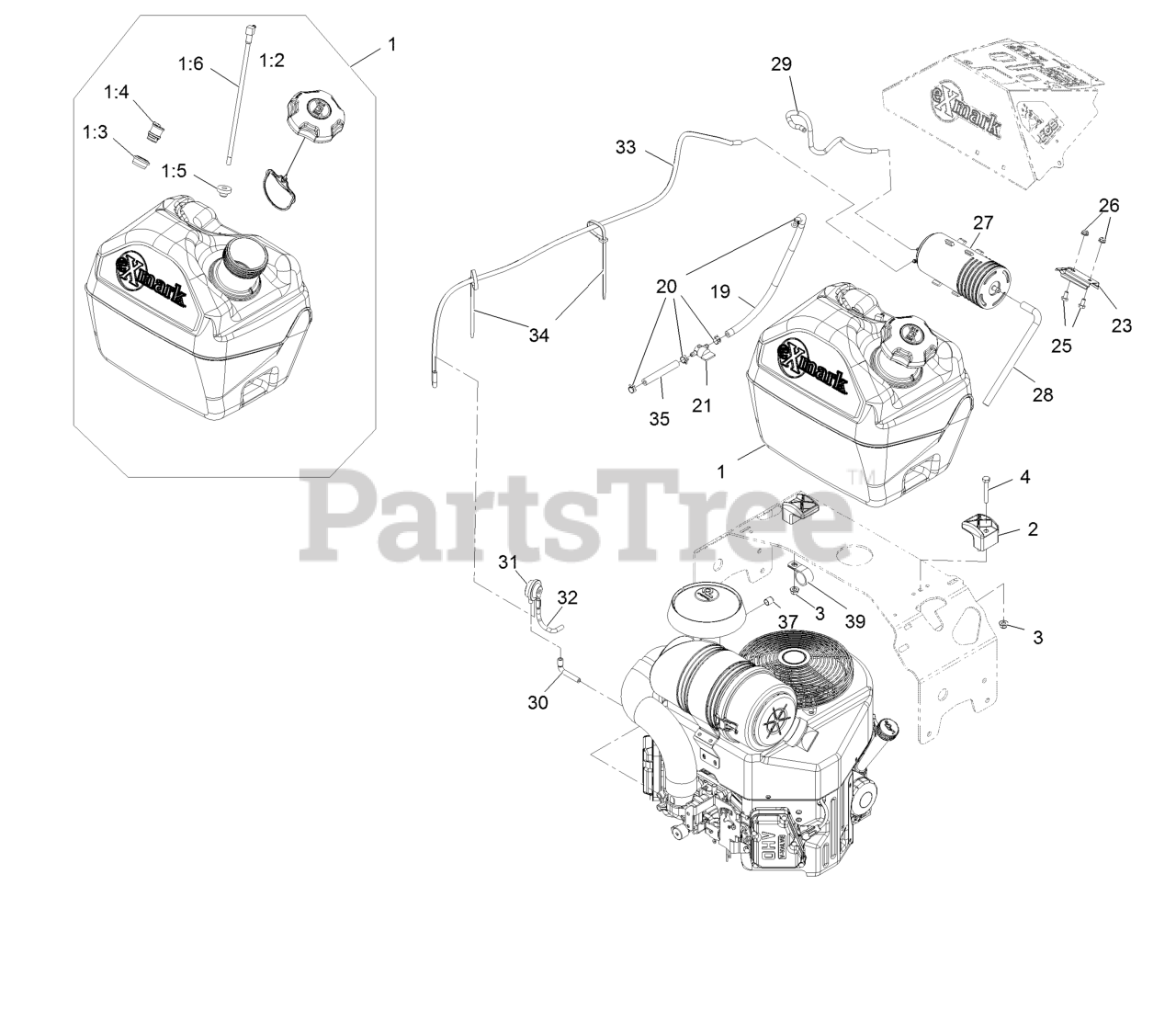

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Fuel Tank Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 135-2855

ASM, Fuel Tank 5 Gal
(Superseded to 140-4343)

$279.99

$

In Stock, only 2 left!

0

1:2

Exmark 137-4119

Cap-Fuel, Ratcheting

$26.99

$

In Stock, Qty 9

0

1:3

Exmark 114-0284

Grommet

$2.99

$

In Stock, Qty 20+

0

1:4

Exmark 119-3547

Valve-Vent, Fuel

$16.99

$

In Stock, Qty 12

0

1:5

Exmark 46-6560

Bushing

$5.99

$

In Stock, Qty 20+

0

1:6

Exmark 109-9364

Fitting-Fuel (W/Line And Screen)
(Superseded to 116-2459)

$39.99

$

In Stock, only 1 left!

0

2

Exmark 107-4543

Clamp

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 322-10

Screw-HH 5/16-18 X 2

$0.99

$

In Stock, Qty 10

0

19

Exmark 114-4428

Hose-Fuel

$10.99

$

Usually ships in 3-6 days

0

20

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-603770

Valve-Fuel

$7.99

$

In Stock, Qty 17

0

23

Exmark 114-0292

Bracket-Canister, Carbon

$12.99

$

Usually ships in 3-6 days

0

25

Exmark 321-2

Screw-HH 1/4-20 X 1/2

$3.49

$

In Stock, only 3 left!

0

26

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

27

Exmark 117-1221

Canister-Carbon, 800Cc

$73.99

$

In Stock, only 2 left!

0

28

Exmark 115-0962

Hose-Vent, Canister

$8.99

$

In Stock, only 2 left!

0

29

Exmark 116-4801

Hose-Emissions

$8.49

$

Usually ships in 3-6 days

0

30

Exmark 116-2233

Hose-Vent, Formed

$7.99

$

Usually ships in 3-6 days

0

31

Exmark 116-2232

Valve-Control, Vacuum

$25.99

$

In Stock, only 3 left!

0

32

Exmark 116-2394

Hose-Vent, Formed

$7.99

$

In Stock, only 2 left!

0

33

Exmark 116-3116

Hose-Vent, Formed

$15.99

$

Usually ships in 3-6 days

0

34

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

35

Exmark 105-8342

Hose-Fuel

$6.49

$

In Stock, only 4 left!

0

37

Exmark 116-4464

Plug-Port

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 1-643312

Clip-Loom

$6.49

$

Usually ships in 3-6 days

0
