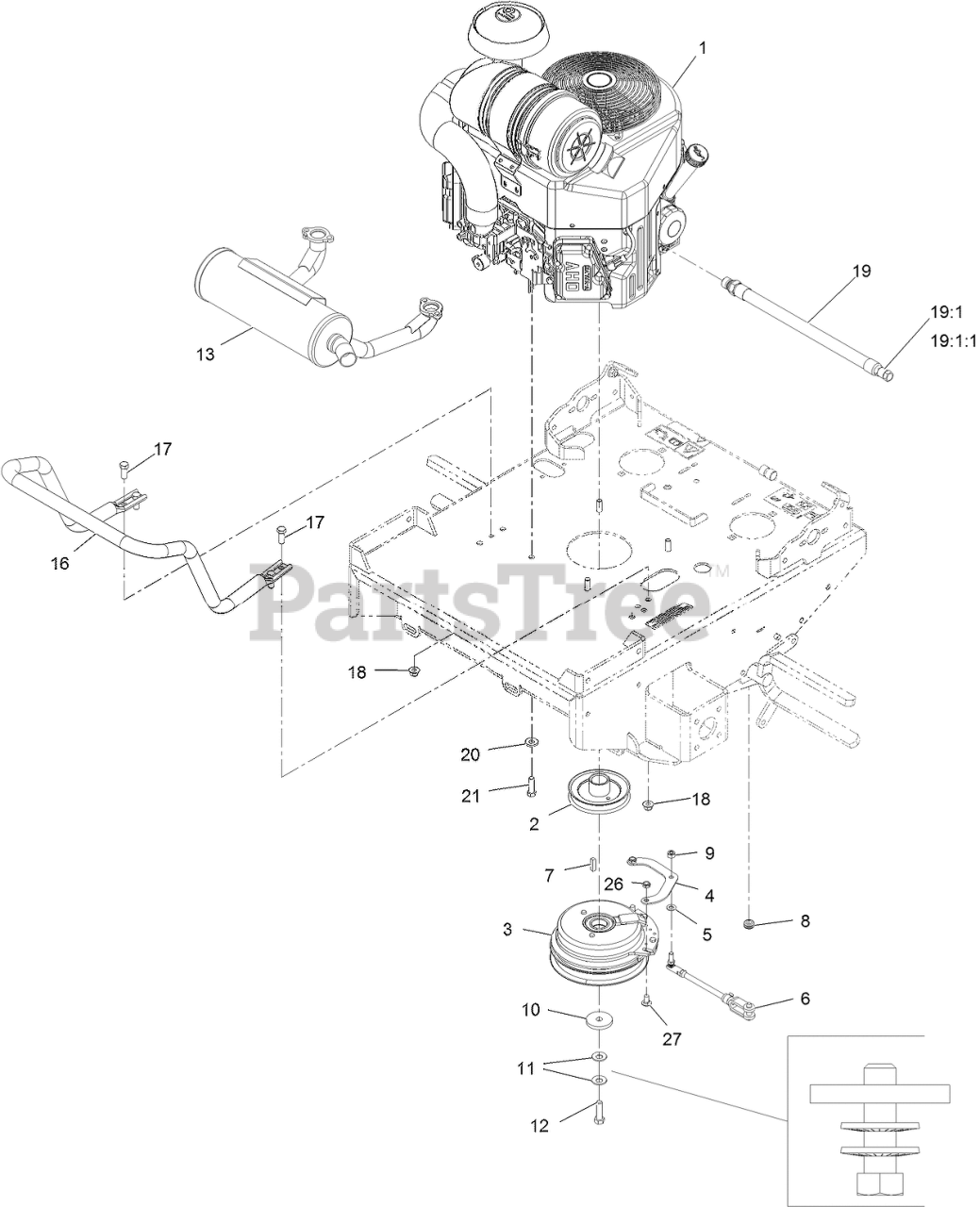

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 406294345 - 408644345) (Rev B) (2020) Engine Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

Engine Assembly Parts Diagram

  • Title

1

Engine, Kaw Fx691

Note: Not serviced separately / Obtain parts from www.kawpower.com

$

$

Not available

2

Exmark 126-2605

SHEAVE W/ HUB

$72.99

$

Usually ships in 3-6 days

0

3

Exmark 126-2601

CLUTCH, 200 FT/LBS, 1.13

$639.99

$

Usually ships in 3-6 days

0

4

Exmark 126-2602

STRAP, CLUTCH

$12.99

$

In Stock, only 2 left!

0

5

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Exmark 126-0620

ASM, CLUTCH ANCHOR

$72.99

$

In Stock, Qty 6

0

7

Exmark 1-807259

KEY

Note: Apply anti-seize compound to engine crankshaft, pulley hub I.D., clutch bore I.D. and square key.

$2.49

$

In Stock, Qty 20+

0

8

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

9

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, only 4 left!

0

10

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

11

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

12

Exmark 87-2080

BOLT-HEX, TAP

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.99

$

In Stock, only 2 left!

0

13

Exmark 116-3736

MUFFLER,HORIZONTAL

$332.99

$

Usually ships in 3-6 days

0

16

Exmark 135-4729-03

Guard-Muffler

$93.99

$

Usually ships in 3-6 days

0

17

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 116-5052

ASM, ENGINE OIL DRAIN HOS

Note: Use a Teflon Pipe Sealant or equivalent on threads / Torque to 23-29 ft-lb

$55.99

$

Usually ships in 3-6 days

0

19:1

Exmark 353-508

PLUG-HH

Note: Torque to 20-24 ft-lb

$8.99

$

In Stock, only 4 left!

0

19:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

21

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

27

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0
