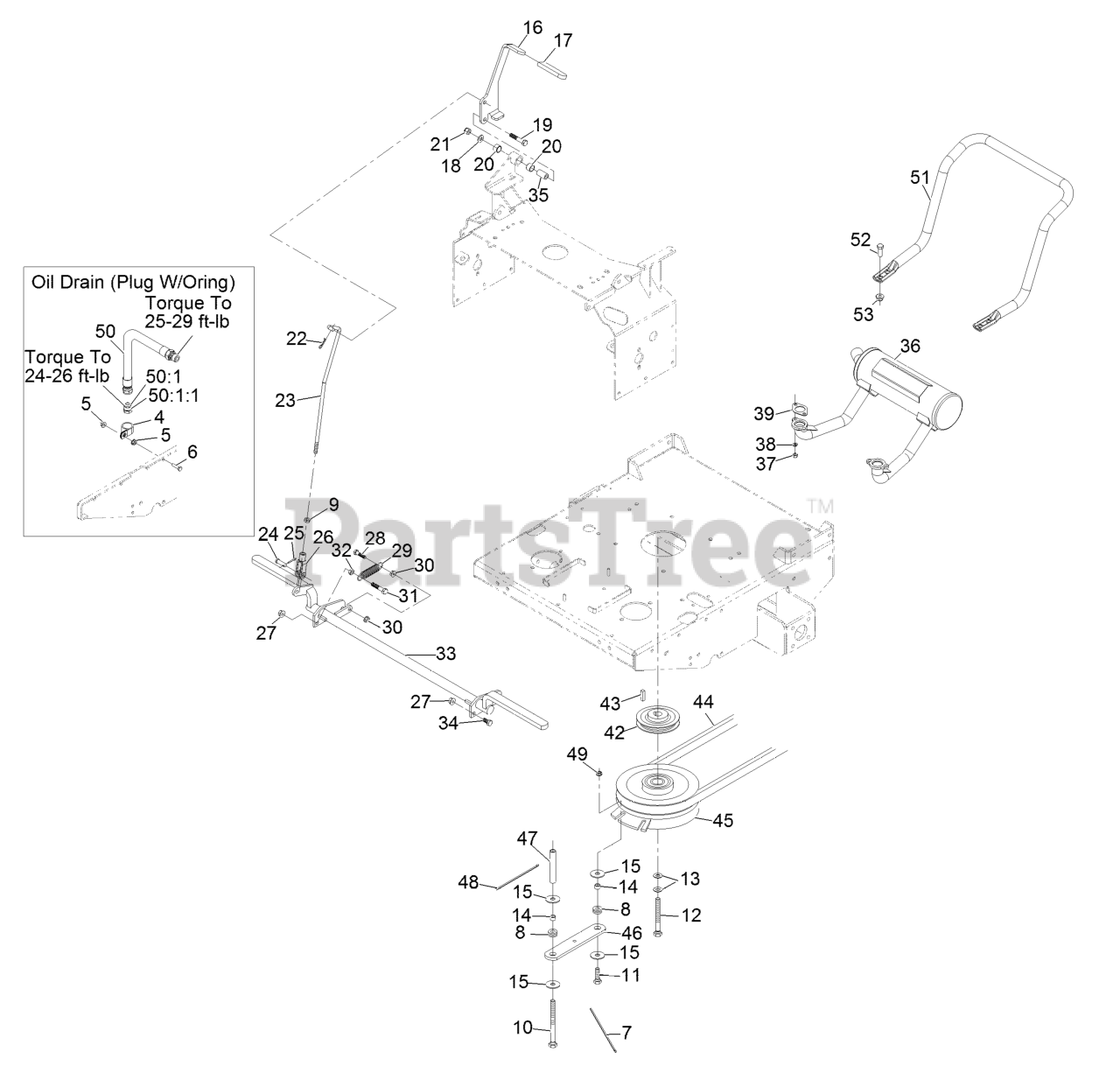

TTX691KAE524 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 314000000 - 314999999) (2014) Park Brake And Engine Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

Park Brake And Engine Assembly Parts Diagram

  • Title

4

Exmark 1-643312

CLIP-LOOM

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

6

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

7

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

8

Exmark 1-633630

GROMMET

$5.99

$

In Stock, only 4 left!

0

9

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 322-38

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

11

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, Qty 12

0

13

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

14

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

16

Exmark 109-4544

LEVER,PRK BRK W/DECALS

$98.99

$

Usually ships in 3-6 days

0

17

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 18

0

21

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

23

Exmark 109-4078

LINKAGE, PARK BRAKE

$61.99

$

Usually ships in 3-6 days

0

24

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

0

25

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 5

0

27

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Exmark 116-3515

SCREW-HH, SPECIAL

$

$

Not available

29

Exmark 1-323161

SPRING-IDLER

$12.99

$

In Stock, only 1 left!

0

30

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 14

0

33

Exmark 116-9159

WLD,BRAKE TTX

$242.99

$

Usually ships in 3-6 days

0

34

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

35

Exmark 1-413344

BUSHING-PIVOT

$20.99

$

In Stock, only 1 left!

0

36

Exmark 116-3736

MUFFLER,HORIZONTAL

$332.99

$

Usually ships in 3-6 days

0

37

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

38

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

39

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 1-653035

PULLEY

Note: Install sheave with long end of hub up.

$72.99

$

Usually ships in 3-6 days

0

43

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

44

Exmark 103-2240

BELT,B 83.65
(Superseded to 103-2240-SL)

$70.99

$

In Stock, only 3 left!

0

45

Exmark 103-0662

CLUTCH ASM

$534.99

$

In Stock, only 1 left!

0

46

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$15.99

$

In Stock, only 1 left!

0

47

Exmark 1-323195-03

SPACER,SHIELD

$8.99

$

Usually ships in 3-6 days

0

48

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

49

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

50

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$39.99

$

In Stock, Qty 6

0

50:1

Exmark 353-508

PLUG-HH

$8.99

$

In Stock, only 3 left!

0

50:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

51

Exmark 116-6278-03

GUARD-MUFFLER
(Superseded to 135-4729-03)

$93.99

$

Usually ships in 3-6 days

0

52

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

53

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+
