TVS120-63203 - Tecumseh Engine Engine Parts List #1 Parts Diagram

Engine

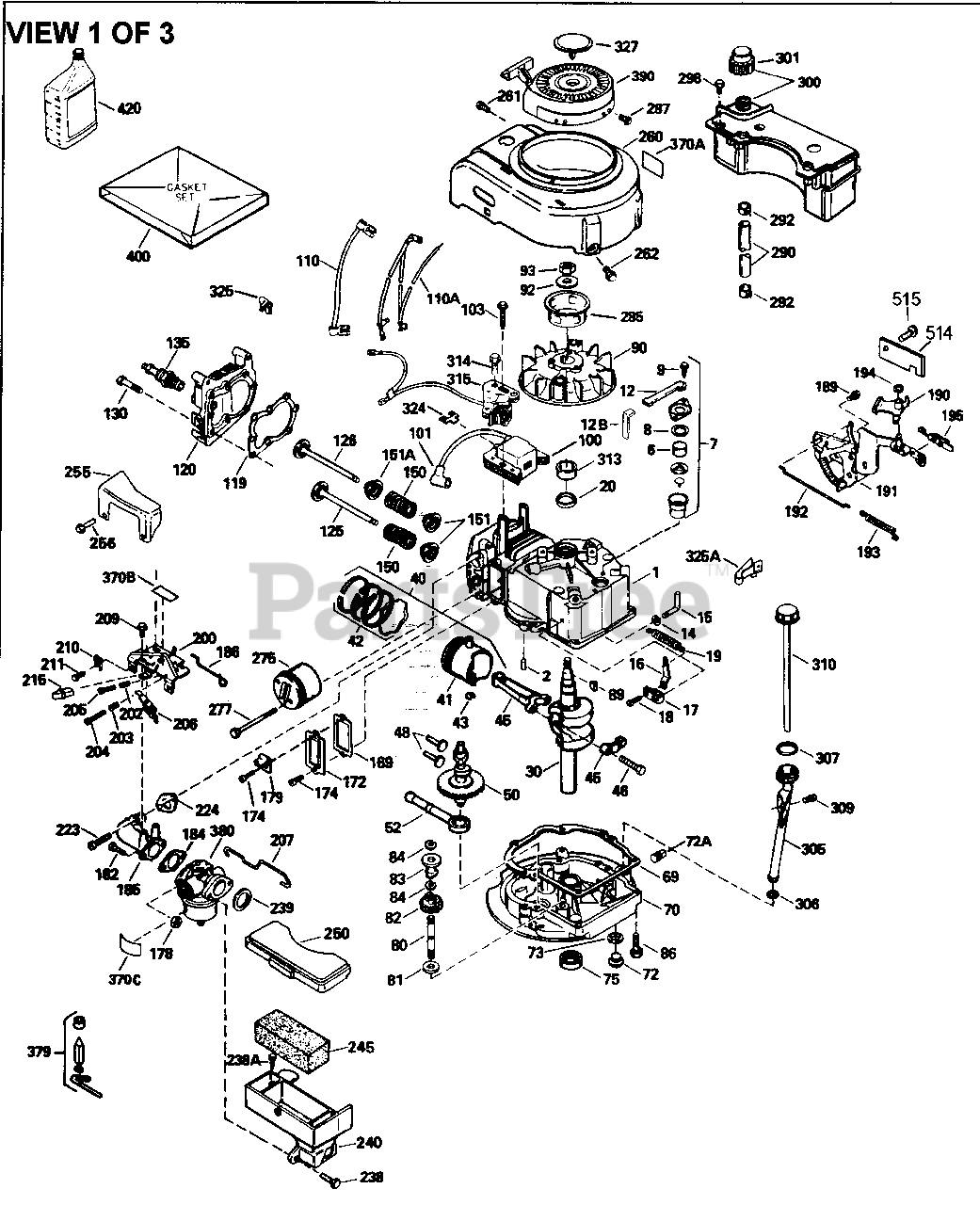

Engine Parts List #1 Parts Diagram

  • Title
1

Tecumseh 33729A

"Cylinder (Incl. 2 & 20) (2-13/16" Bor e ) (Inverted Ports)
(Superseded to 36601)

$

$

Currently unavailable

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, only 4 left!

0

6

Tecumseh 33734

Element, Breather

$1.99

$

In Stock, Qty 20+

0

7

Tecumseh 34214A

Breather Ass'y. Incl. 6, 8, 9, 12 , & 12A
(Superseded to 34214B)

$

$

Not available

8

Tecumseh 33735

* Gasket, Breather

$1.99

$

In Stock, only 1 left!

0

9

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 15

0

12A

Tecumseh 34695

Elbow, Breather tube

$1.99

$

In Stock, only 2 left!

0

12

Tecumseh 33886

Tube, Breather

$

$

Not available

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, Qty 5

0

15

Tecumseh 30589

Rod, Governor (Incl. 14)

$5.49

$

In Stock, only 3 left!

0

16

Tecumseh 31383A

Lever, Governor

$1.99

$

In Stock, Qty 5

0

17

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, Qty 18

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 16

0

19

Tecumseh 33578

Spring, Governor

$2.99

$

In Stock, Qty 13

0

20

Tecumseh 32600

Seal, Oil

$6.99

$

In Stock, Qty 20+

0

30

Tecumseh 34845

Crankshaft

$

$

Currently unavailable

32

Tecumseh 32323

Washer, Thrust NOTE: This thrust wash er maynot be required if a new cranks hafthas been installed. Check the pro per Mechanic's Handbook for acceptabl e end play. Use this .010" thrust was her if excess end play is measured.

$8.49

$

In Stock, only 4 left!

0

40

Tecumseh 34535

Piston, Pin & Ring Set (Std.) 2-13/1 6"

$74.99

$

In Stock, only 2 left!

0

40

Tecumseh 34536

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 34537

Piston, Pin & Ring Set (.020" OS)

$83.99

$

Usually ships in 3-12 days

0

41

Tecumseh 33562B

Piston & Pin Ass'y. (Incl. 43)(Std.) 2-13/16"

$44.99

$

Usually ships in 3-12 days

0

41

Tecumseh 33563B

Piston & Pin Ass'y. (Incl. 43) .010" OS

$

$

Not available

41

Tecumseh 33564B

Piston & Pin Ass'y. (Incl. 43) .020" OS

$

$

Not available

42

Tecumseh 33567

Ring Set (Std.) (2-13/16" Bore)
(Superseded to 40004)

$74.99

$

In Stock, only 2 left!

0

42

Tecumseh 33568

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 33569

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 8

0

45

Tecumseh 32875

Rod Assy., Connecting (Incl. 46)
(Superseded to 32875A)

$47.99

$

In Stock, Qty 6

0

46

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 9

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, Qty 12

0

50

Tecumseh 33154

Camshaft

$47.99

$

In Stock, only 1 left!

0

52

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

In Stock, only 1 left!

0

64A

Tecumseh 8345

Washer, Flat

$1.99

$

In Stock, only 3 left!

0

64

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

69

Tecumseh 35261

* Gasket, Mounting flange
(Superseded to 37609)

$2.99

$

In Stock, Qty 20+

0

70

Tecumseh 34311C

Flange Ass'y. Incl. 72, 72A, 73, 75 & 80
(Superseded to 37608A)

$77.99

$

In Stock, only 2 left!

0

72

Tecumseh 30572

Plug, Oil drain (Incl. 73)
(Superseded to 36083)

$6.99

$

In Stock, Qty 20+

0

73

Tecumseh 28833

* Drain Plug Gasket Not req. W/plastic plug

$1.99

$

In Stock, Qty 6

0

75

Tecumseh 27897

Oil Seal

$3.99

$

In Stock, Qty 20+

0

80

Tecumseh 30574

Shaft, Governor
(Superseded to 30574A)

$7.49

$

In Stock, Qty 7

0

81

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 12

0

82

Tecumseh 30591

Gear Assy., Governor (Incl. 81)

$13.99

$

In Stock, Qty 20+

0

83

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, Qty 20+

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, Qty 20+

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

In Stock, Qty 6

0

89

Tecumseh 610995

Flywheel Key

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611046A

Flywheel

$94.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Washer, Belleville

$1.99

$

In Stock, Qty 7

0

93

Tecumseh 650816

Nut, Flywheel

$1.99

$

In Stock, Qty 9

0

100

Tecumseh 34431

Solid State Ignition This coil has be en superseded to 730207 solid state c onversion kit
(Superseded to 730207)

$62.99

$

In Stock, only 2 left!

0

100

Tecumseh 730207

Magneto-to-Solid State Conv. Kit (Inc ludes solid state module, solid state flywheel key, and instructions.) (Us e as required on external ignition en gines only.)

$62.99

$

In Stock, only 2 left!

0

101

Tecumseh 610118

Cover, Spark plug (Use as required)

$3.99

$

In Stock, Qty 20+

0

103

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, Qty 6

0

110

Tecumseh 34432

Ground Wire

$3.49

$

Usually ships in 3-12 days

0

118

Tecumseh 730194

Rope Guide Kit (Use as required)

$2.99

$

Usually ships in 3-12 days

0

119

Tecumseh 33554A

* Gasket, Head
(Superseded to 36443)

$5.99

$

In Stock, Qty 6

0

120

Tecumseh 34342

Head, Cylinder
(Superseded to 36476)

$32.99

$

In Stock, only 1 left!

0

125

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151) (Inv erted Ports)

$

$

Not available

125

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151) (Conv entional Ports)
(Superseded to 29314C)

$5.99

$

In Stock, Qty 5

0

125

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151) (Inverted Ports)

$

$

Not available

126

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151) (Con ventional Ports)

$

$

Not available

126

Tecumseh 32644A

Intake Valve (Incl. 151) Inverted Po rts

$9.99

$

In Stock, Qty 5

0

126

Tecumseh 32645A

Intake Valve (1/32" OS) (Incl. 151) ( Inverted Ports)

$61.99

$

In Stock, only 2 left!

0

126

Tecumseh 34776

Exhaust Valve (Std.) (Incl. 151) (Con ventional Ports)
(Superseded to 29313C)

$

$

Not available

127

Tecumseh 650691

Washer, Flat

$1.99

$

In Stock, Qty 18

0

129

Tecumseh 650818

Screw, 5/16-18 x 1-1/2"

$3.99

$

In Stock, Qty 6

0

130

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2" Use as requir ed

$1.99

$

In Stock, Qty 20+

0

130

Tecumseh 650697A

Screw, 5/16-18 x 2-1/2" Use as requir ed

$1.99

$

In Stock, Qty 20+

0

135

Tecumseh 33636

Resistor Spark Plug - RJ17LM

$5.49

$

In Stock, Qty 20+

0

150

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 20+

0

151

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, Qty 5

0

169

Tecumseh 27234A

Valve Cover Gasket

$2.49

$

In Stock, Qty 20+

0

172

Tecumseh 32755

Cover, Valve spring box

$5.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, Qty 12

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 18

0

182

Tecumseh 30088A

Screw, 1/4-28 x 1"

$1.99

$

In Stock, Qty 10

0

184

Tecumseh 26756

* Gasket, Carburetor

$2.49

$

In Stock, Qty 20+

0

185

Tecumseh 33739

Pipe, Intake

$25.99

$

Usually ships in 3-12 days

0

186

Tecumseh 34337

Link, Governor spring

$1.99

$

In Stock, Qty 7

0

200

Tecumseh 32181A

Control Bracket Incl. 203, 204 & 206

$

$

Not available

203

Tecumseh 31342

Spring, Compression

$1.99

$

In Stock, only 4 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, Qty 5

0

206

Tecumseh 610973

Terminal (Use as required)

$3.99

$

In Stock, Qty 20+

0

207

Tecumseh 34336

Link, Throttle
(Superseded to 34336A)

$1.99

$

In Stock, Qty 20+

0

209

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 15

0

210

Tecumseh 27793

Conduit Clip

$1.99

$

In Stock, Qty 5

0

211

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, Qty 20+

0

223

Tecumseh 650142

Screw, 1/4-20 x 1-1/8"

$1.99

$

Usually ships in 3-12 days

0

224

Tecumseh 33751A

* Gasket, Intake pipe

$2.99

$

Usually ships in 3-12 days

0

238

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, Qty 9

0

239A

Tecumseh 27272A

Air Cleaner Gasket

$1.99

$

In Stock, Qty 20+

0

245

Tecumseh 30727

Air Filter (Paper) also available in Packaged Part #740029B

$7.49

$

In Stock, only 2 left!

0

246E

Tecumseh 35435

Filter, Pre-air (Use as required)

$2.99

$

In Stock, Qty 5

0

250D

Tecumseh 31715

Cover, Air cleaner

$21.99

$

In Stock, Qty 8

0

260

Tecumseh 34835

Housing, Blower

$

$

Not available

261

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 15

0

262

Tecumseh 650831

Screw, 1/4-20 x 15/32"

$1.99

$

In Stock, Qty 12

0

275E

Tecumseh 35771

Muffler (Incl. 274)
(Superseded to 35771A)

$32.99

$

In Stock, Qty 7

0

277

Tecumseh 650774

Screw, 1/4-20 x 2-3/8" Use as requir ed

$1.99

$

In Stock, only 4 left!

0

277

Tecumseh 650795

Screw, 1/4-20 x 2-1/4" Use as requir ed

$1.99

$

In Stock, only 2 left!

0

277

Tecumseh 792005

Screw, 1/4-20 x 2-1/2" Use as requir ed

$4.49

$

In Stock, only 3 left!

0

287

Tecumseh 650802

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, Qty 7

0

290

Tecumseh 29774

Fuel Line (8.62") as req.)

$34.99

$

In Stock, Qty 20+

0

290

Tecumseh 30705

Fuel Line (Braided 16")(40 cm) Use as req.

$16.99

$

In Stock, Qty 17

0

290

Tecumseh 30962

Fuel Line (Braided 32")(81 cm) Use as req.

$30.99

$

In Stock, Qty 20+

0

290

Tecumseh 34357

Fuel Line (Epichlorohydrin 6-3/4") 17 cm
(Superseded to 29774)

$34.99

$

In Stock, Qty 20+

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 28763

Screw, 10-32 x 35/64"

$1.99

$

In Stock, Qty 6

0

301

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) also availab le in Packaged Part #740005B

$7.49

$

In Stock, Qty 7

0

305

Tecumseh 34264

Oil Fill Tube

$9.49

$

In Stock, only 1 left!

0

306

Tecumseh 34265

Gasket, Oil fill tube

$2.49

$

In Stock, Qty 20+

0

306

Tecumseh 34282

"O" Ring This "O" ring is required wi th metal fill tube only when replacem ent mounting flange with .777 dia. oi l fill hole has been used.

$1.99

$

In Stock, Qty 20+

0

307

Tecumseh 33590

"O" Ring

$1.99

$

In Stock, Qty 5

0

309

Tecumseh 650562

Screw, 10-32 x 1/2"

$1.99

$

In Stock, Qty 7

0

310

Tecumseh 34267

Oil Dipstick (Incl. 150)

$11.99

$

In Stock, only 1 left!

0

313A

Tecumseh 33876

Gasket, Stator

$5.49

$

In Stock, only 1 left!

0

326

Tecumseh 34113

Plug, Screen

$3.99

$

Usually ships in 3-12 days

0

359

Tecumseh 34834

Guard, Flywheel

$

$

Not available

370J

Tecumseh 34870

Decal, Instruction (Optional)

$

$

Currently unavailable

370H

Tecumseh 34387

Decal, Instruction (Optional)

$2.49

$

In Stock, only 1 left!

0

377

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$15.99

$

In Stock, only 4 left!

0

378

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$10.99

$

In Stock, Qty 20+

0

379

Tecumseh 631021

Inlet Needle, Seat & Clip Assy.
(Superseded to 631021B)

$6.49

$

In Stock, Qty 20+

0

380

Tecumseh 632226

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, Page A1-14 or Fich e 8A, Grid E-1 for breakdown)

$

$

Currently unavailable

390A

Tecumseh 590531

Side Mount Rewind Starter Refer to Di vision 5, Section C, page 32 or Fiche 8A, Grid G-3 for breakdown
(Superseded to 590532)

$87.99

$

In Stock, only 2 left!

0

400

Tecumseh 33740D

* Gasket Set (Incl. items marked *)
(Superseded to 33740F)

$17.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730225

SAE 30, 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, Qty 15

0

425

Tecumseh 730571

Starter Muff Kit (Incl. 370J,426,427) Opt.

$19.99

$

Usually ships in 3-12 days

0

426

Tecumseh 32203

Starter Air Cleaner (Optional)

$20.99

$

In Stock, only 1 left!

0

427

Tecumseh 32204

Starter Air Cleaner Bracket Optional

$

$

Not available

436

Tecumseh 611006

Stator Plate Ass'y. Incl. 377,378,437 , 442-448

$

$

Not available

437

Tecumseh 30551

Spring, Breaker box cover

$

$

Not available

438

Tecumseh 610947

Cover, Dust

$3.99

$

Usually ships in 3-12 days

0

439

Tecumseh 610955

Gasket, Stator cover

$

$

Not available

440

Tecumseh 30992

Cam, Breaker

$

$

Not available

442

$1.99

$

Usually ships in 3-12 days

0

443

Tecumseh 610408

Nut, 8-32

$

$

Currently unavailable

444

Tecumseh 29181

Breaker Fastening Screw & Washer

$

$

Not available

445

Tecumseh 610593

Condenser Fastening Screw

$1.99

$

In Stock, only 3 left!

0

446

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, Qty 8

0

448

Tecumseh 30549

Felt, Cam wiper

$1.99

$

In Stock, only 3 left!

0
